SBK BarDrive 28 - PCB for BL(Z)28-3005xx bar meter

Name: SBK BarDrive 28 - PCB for BL(Z)28-3005xx bar meter
SKU: 39070
Price: 4.95 USD
Availability: InStock

SBK BarDrive 28 - PCB for BL(Z)28-3005xx 28 segments bargraph compatible with SBK BarDrive SA28/SK28 MAX7219/7221 driver backpack

Designed by Smart Builds & Kits in Canada

SBK BarDrive 28 - PCB for BL(Z)28-3005xx bar meter 1

SBK BarDrive 28 - PCB for BL(Z)28-3005xx bar meter 2

SBK BarDrive 28 - PCB for BL(Z)28-3005xx bar meter 3

SBK BarDrive 28 - PCB for BL(Z)28-3005xx bar meter 4

SBK BarDrive 28 - PCB for BL(Z)28-3005xx bar meter 5

SBK BarDrive 28 - PCB for BL(Z)28-3005xx bar meter 6

SBK BarDrive 28 - PCB for BL(Z)28-3005xx bar meter 7

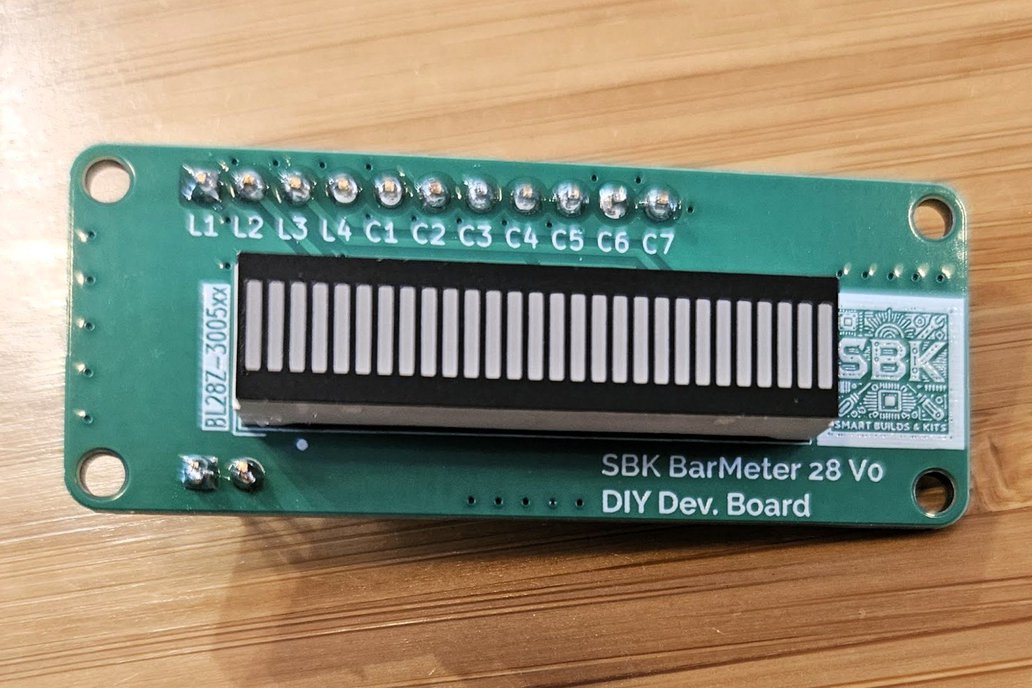

2025-06-17T01:29:55.407Z-photo front 2.jpg

2025-06-17T01:29:55.407Z-with backpack.jpg

2025-06-16T19:14:09.400Z-SBK BarMeter 28 V0 - populated front.png

2025-06-16T19:14:09.400Z-SBK BarMeter 28 V0 - front.png

2025-06-16T19:14:09.400Z-SBK BarMeter 28 V0 - populated back.png

2025-06-16T19:14:09.400Z-SBK BarMeter 28 V0 - back.png

$4.95

Quantity*

+ —

PCB with or without components ?*

Soldered components ?

Add SBK BarDrive SK28/SA28 backpack ?*

Only 5 left in stock, order now!

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

SBK BarDrive 28 - PCB for BL(Z)28-3005xx 28 segments bargraph compatible with SBK BarDrive SA28/SK28 MAX7219/7221 driver backpack

SBK BarMeter 28 – 28-Segments Bargraph PCB (SA or SK compatible) The SBK BarMeter 28 is a PCB designed to accommodate the BL(Z)28-3005 28-segment LED bargraph module — available in both SA (common an…

SBK BarMeter 28 – 28-Segments Bargraph PCB (SA or SK compatible)

The SBK BarMeter 28 is a PCB designed to accommodate the BL(Z)28-3005 28-segment LED bargraph module — available in both SA (common anode) and SK (common cathode) configurations. It’s engineered as a compact, clean mounting solution, ideal for pairing with the SBK BarDrive SA28/SK28 driver backpack.

Whether you're building a retro-inspired audio VU meter, signal level indicator, or dynamic LED animation display, this board gives your project a professional, low-profile finish.

✅ Features

Fits BL(Z)28-3005xx 28-segment bargraph modules (SA or SK types)
Optimized layout for clean front-panel installation or embedded use
Designed to mate with SBK BarDrive SA28/SK28 for plug-and-play functionality
Clear silkscreen legends and through-hole pads for easy soldering
Compact form factor for modular builds and vertical mounting

🔧 Options

Available as:

Bare PCB only
PCB + unsoldered components (no pin headers)
Can be bundled with SBK BarDrive SA28/SK28 boards for complete display modules

This board is great for hobbyists, makers, and electronics enthusiasts seeking high-quality components for custom LED bar meters or visual feedback systems.
