What is it?

The Agafia series was inspired by years of work on numerous projects - this board is based on the well-known ARM Cortex M0+ and combines the most exciting extensions such as Mikroe Sensors while remaining Arduino IDE compatible. It is currently undergoing S/W development. you're off to a good start!

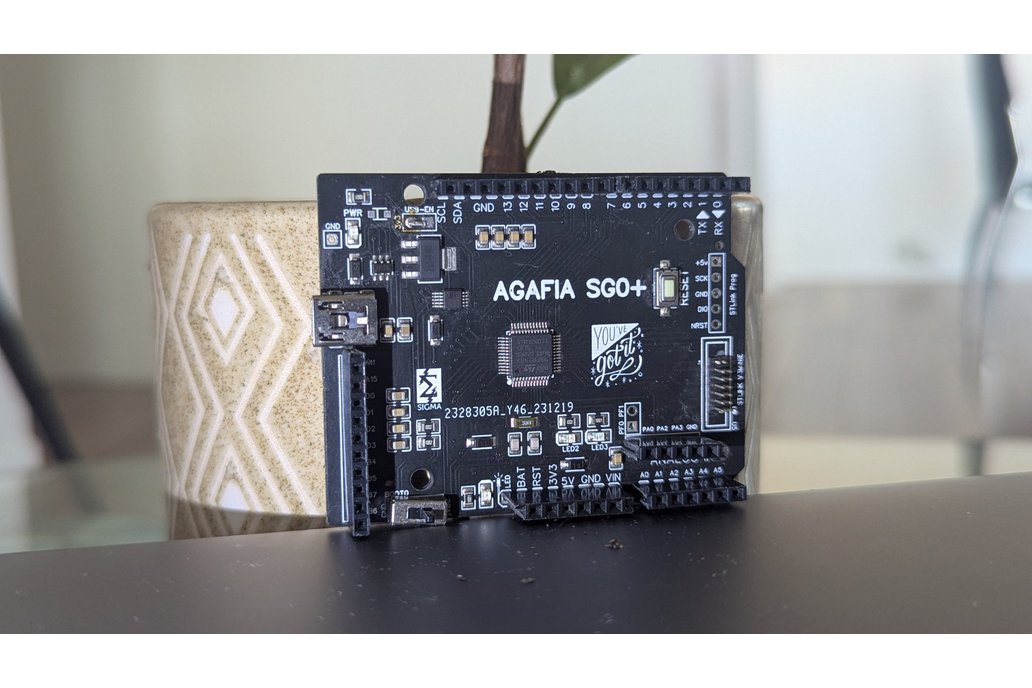

Agafia SG0 is an STM32G071CB-based microcontroller board. The microcontroller has an Arm 32-bit Cortex-M0+ Core and a maximum frequency of 64MHz. It has 33 I/O pins, a micro USB port, a power jack, an SWD header, and a reset button. It also has a mikroBUS™ socket.

Why did you make it?

Agafia SG0 brings the 48-pin STM32G0 MCU prototype to market. Mostly, 32-pin or 64-pin ST32 MCU are available for the prototype. Agafia SG0 provides a cost-effective opportunity with enough pins along with advanced features like 12-bit DAC that are not available on other prototype boards.

What makes it special?

Agafia SG0 is a cost-effective prototype board and packs lots of advanced features. Board comes with 12-bit DAC and internal RTC with 32.768 kHz crystal for timing accuracy.

The board has a mikroBUS™ socket that allows you to work with hundreds of sensors provided by Mikroe.

• Core: Arm® 32-bit Cortex®-M0+ CPU, frequency up to 64 MHz
• Memories up to 128 Kbytes of Flash memory
• Two 12-bit DACs
• CRC calculation unit
• Calendar RTC with alarm and periodic wakeup from Stop/Standby/Shutdown
• USB Type-C™ Power Delivery controller
• Development support: serial wire debug (SWD)
• 96-bit unique ID
