RF Logarithmic Detector

Name: RF Logarithmic Detector
SKU: 39140
Price: 22.90 USD
Availability: InStock

0.1---2.5GHz Logarithmic Power Detector

Sold By Cirket Open Source Hardware

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

0.1---2.5GHz Logarithmic Power Detector

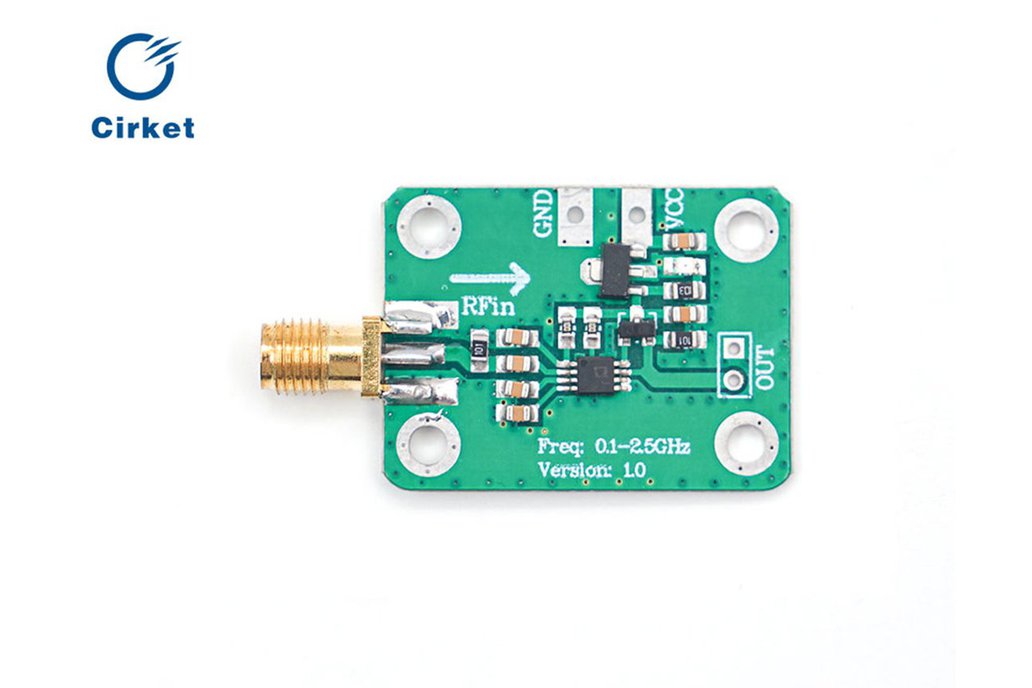

Product Usage: This product is used for RF signal power detection, with a detection frequency range of 0.1---2.4GHz. It can detect an RF signal with a power of -72dBm to -2dBm, and convert such an RF…

Product Usage:

This product is used for RF signal power detection, with a detection frequency range of 0.1---2.4GHz. It can detect an RF signal with a power of -72dBm to -2dBm, and convert such an RF signal into a DC voltage output. The larger the RF signal amplitude or power, the higher the output voltage. The output voltage is proportional to the logarithm of the input signal amplitude, which expands the dynamic range of the detected signal to 70dB.

This product can be widely used in RF signal detection, signal power measurement, environmental field strength detection, and can also be used as a component of automatic gain control and automatic level control.

Technical indicators:

Operating frequency: 0.1--2.5 (GHz) Measured power: -72-- (-2dBm) Output voltage: 0.5--1.65V Detection slope: 18mV/dBm (typical value) Input impedance: 50 ohms Supply voltage: 7-15V (customizable)
