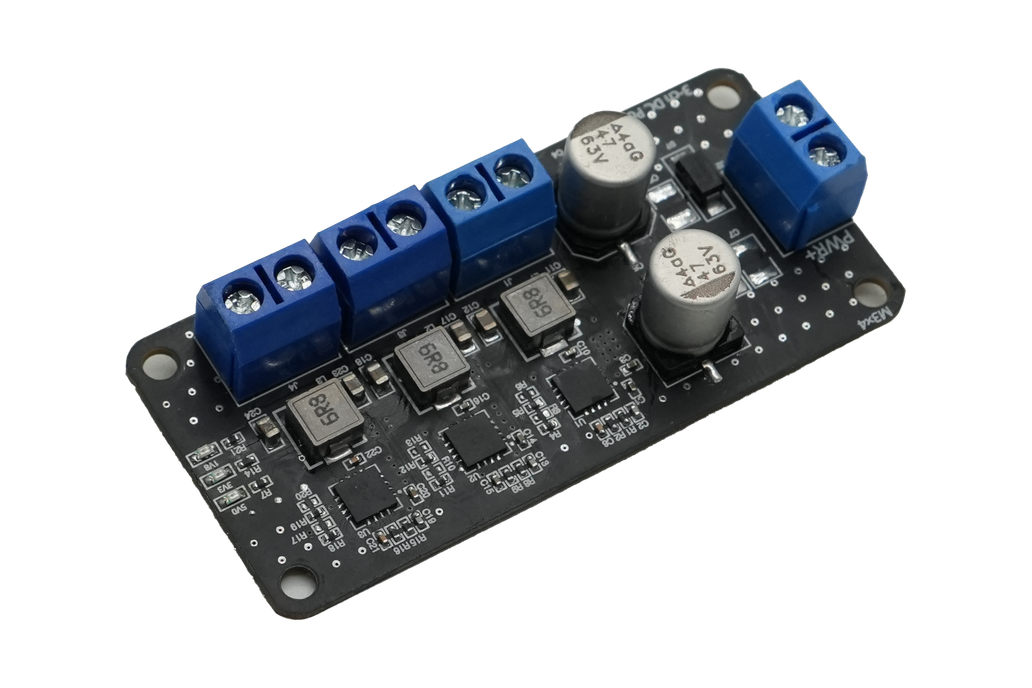

This is a compact, high-efficiency 3-channel Power Management Unit (PMU) designed for embedded systems, UAVs, and IoT applications.

It accepts a wide input voltage range from 4.5V to 60V, and provides three independent output channels at: - 5.0V @ Up to 3A - 3.3V @ Up to 3A - 1.8V @ Up to 3A

Each channel is fully regulated and optimized for powering MCUs, sensors, communication modules, and mixed-voltage devices.

✅ Up to 95% power efficiency
✅ Built-in protections: Overvoltage, Overcurrent, Thermal shutdown
✅ Compact PCB footprint: 65mm x 30mm
✅ 4x Mounting holes (Ø3mm) at each corner for secure installation
✅ Ideal for multi-rail power distribution in drones and embedded systems
✅ Each channel supports over 3A continuous output current

What’s Included
- 1x Assembled PMU Module - 1x Input Power Terminal Block(Soldered) - 3x Output Power Terminal Block(Soldered) - 1x PDF Datasheet (via Web)

Need custom voltage outputs or connector types?
Feel free to contact us. We support custom builds and bulk orders.

🔧 Designed and assembled in South Korea by The Roverdyn Labs
