Faikin remote / env monitor dev board with CO₂

Name: Faikin remote / env monitor dev board with CO₂
SKU: 38582
Price: 105.00 USD
Availability: InStock

A control / display for Faikin aircon controllers, or just as environmental monitor, ESP32S3 based, development board.

Designed by Andrews&Arnold Ltd in United Kingdom

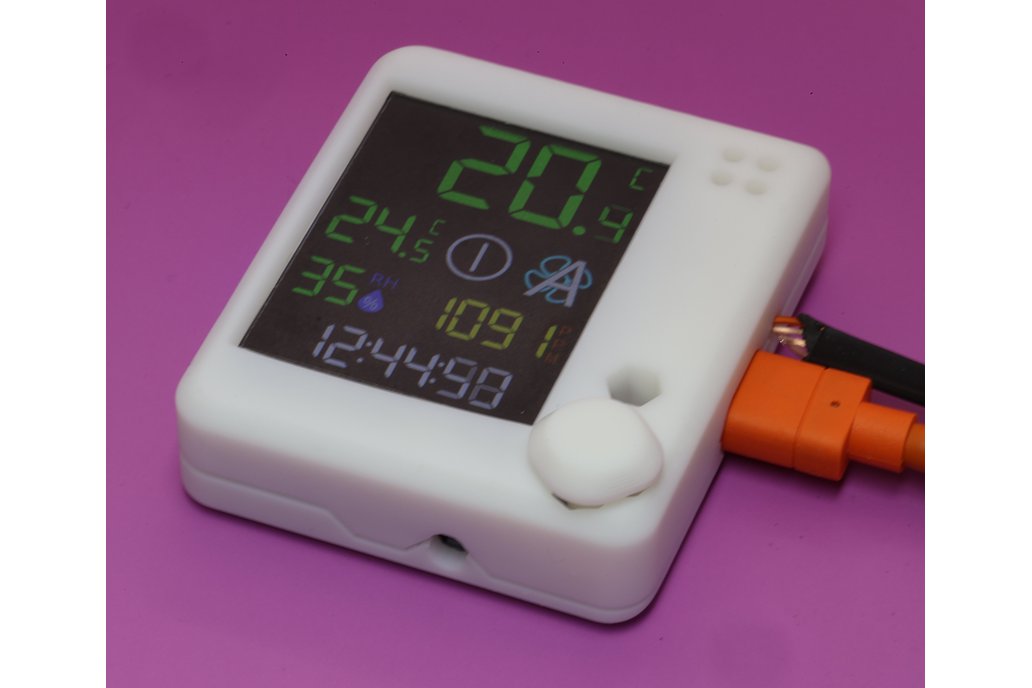

Faikin remote / env monitor dev board with CO₂ 1

Faikin remote / env monitor dev board with CO₂ 2

Faikin remote / env monitor dev board with CO₂ 3

Faikin remote / env monitor dev board with CO₂ 4

Faikin remote / env monitor dev board with CO₂ 5

Faikin remote / env monitor dev board with CO₂ 6

Faikin remote / env monitor dev board with CO₂ 7

Faikin remote / env monitor dev board with CO₂ 8


$105.00

Quantity*

+ —

Full colour 2" LC Display*

Waveshare 2" display, with screws, and header pins

DS18B20 Temperature probe*

DS18B20 Temperature probe on a 1m lead allows precision placement of temperature sensing

Faikin controller board*

The Faikin controller board works with many Daikin air-con - see https://faikin.uk/ for more details

Only 10 left in stock, order now!

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A range of populated PCBs (development boards) for hobbyist use. Designed by RevK. Have fun. Be aware non UK customers may have to pay tax, duty or tariffs on receipt.

A control / display for Faikin aircon controllers, or just as environmental monitor, ESP32S3 based, development board.

What is it? This is an awesome environmental monitoring board! The board is mainly intended to accompany the Faikin controller boards providing a display and control button to control the aircon, but…

What is it?

This is an awesome environmental monitoring board!

The board is mainly intended to accompany the Faikin controller boards providing a display and control button to control the aircon, but can be used as general LCD signage, or environmental monitoring, working with Home Assistant.

It has the advantage that it links over Bluetooth BLE so does not need MQTT or Home Assistant even. Wifi is used for set up and additional settings, etc. But this makes for a very simple and reliable install with the Faikin model for air-conditioning control. It is also designed to work over MQTT over WiFi to control a radiator or fan based on temperature, humidity, and CO₂, working a remote MQTT controlled switch.

The board can also work just as an environmental monitor, which you can use without the display module.

The board also has contacts for DS18B20 temperature probes, which are ideal for monitoring specific points (e.g. water tank, outside temp, etc). This is recommended.

The software can also monitor a range of Bluetooth BLE temperature sensors, and report these back to Home Assistant, and display, etc.

My pre-installed code works with the Faikin board, but you can load ESPhome code, or other, and I also have general display signage code with Home Assistant reporting of sensors than can be flashed. My code allows it to work in various orientations as needed.
