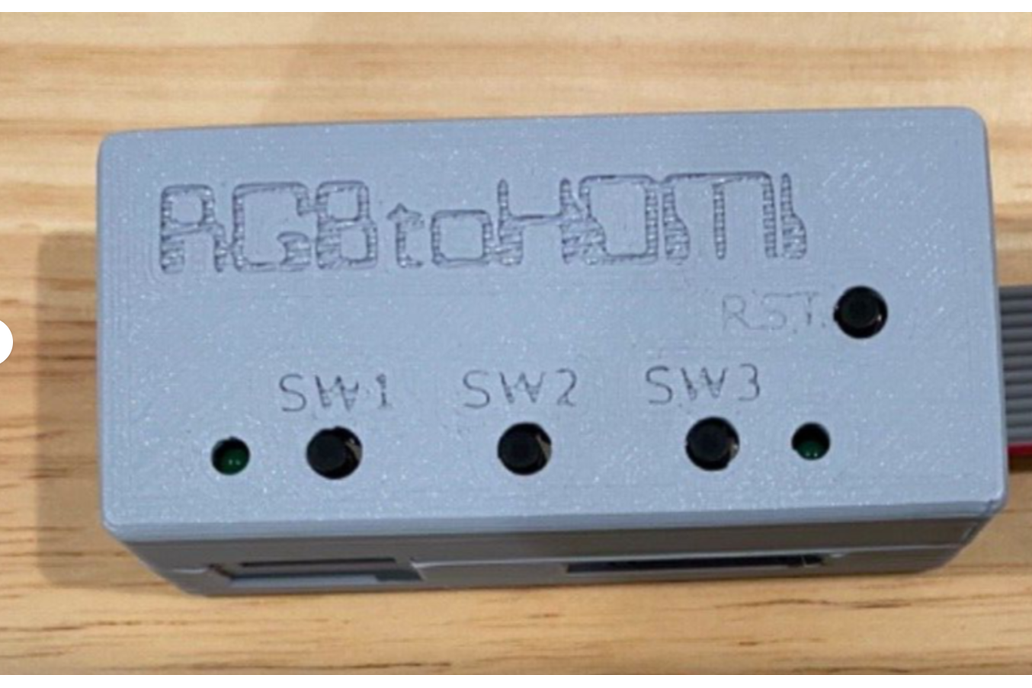

RGBtoHDMI Video Converter for Vintage Computers

The RGBtoHDMI is a specialized video converter designed to connect vintage computers to modern HDMI displays. Based on the open-source project by David Banks (Hoglet67) and Ian Bradbury (IanB), this device converts TTL video signals from classic systems into crystal-clear HDMI output using a Raspberry Pi Zero and programmable logic IC.

Why you want it: PIXEL PERFECT OUTPUT! Looks like an emulator output!

Features

Optimized for MDA, CGA, and EGA Compact, desk-friendly form factor

This cost reduced version does not include connectors for additional boards, like the analog board. It is for use with IBM PC CGA/EGA/MDA, or Commodore 128 80-column mode only.

Package Contents

Pre-assembled RGBtoHDMI PCB Raspberry Pi Zero Case flat ribbon cable with 9-pin DSUB connector 1GB SD Card Micro USB Power Supply

Full unit. No assembly required. Includes mini-HDMI to HDMI adapter, the only thing you will need is an HDMI cable to plug into your monitor.

The CPLD is flashed with the latest version. The product has been tested on an MDA and CGA machine.
