MSP-TS430PZ100USB Dev board Texas Instruments

Name: MSP-TS430PZ100USB Dev board Texas Instruments
SKU: 22922
Price: 40.00 USD
Availability: Discontinued

Development board for the TI MSP430F5x and F6x microcontrollers

Sold By Justin Richards

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More "board" Related Products

8 Port LED Distro

Bong69

$60.00

Single Board Relay Computer

jhallen

$124.00

FPGA Mezzanine Card (FMC) Breakout Board

I A M Electronic

$170.52

Flipper Zero ESP32S3 v4 board

Rabbit-Labs EU

$60.00

MSP-TS430PZ100USB Dev board Texas Instruments 1

Development board for the TI MSP430F5x and F6x microcontrollers

What is it? This is a development board for the MSP430F553x, MSP430F663x and MSP430F665x microcontrollers from TI. It comes with one MSP430F6638 installed in the 100 pin ZIF socket, as well as a 14 p…

What is it?

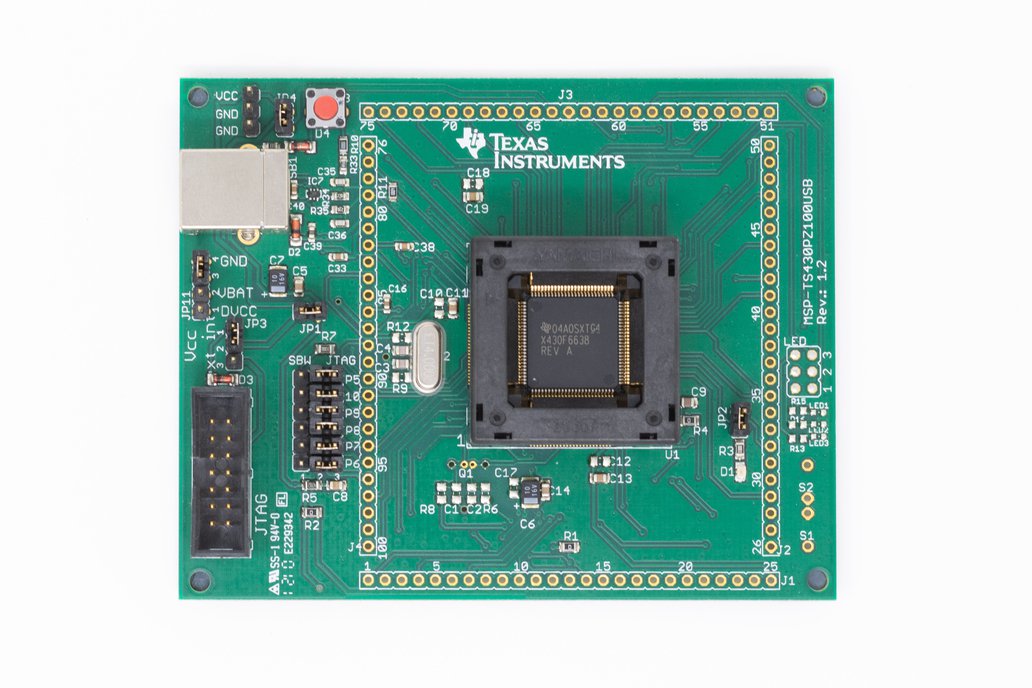

This is a development board for the MSP430F553x, MSP430F663x and MSP430F665x microcontrollers from TI. It comes with one MSP430F6638 installed in the 100 pin ZIF socket, as well as a 14 pin JTAG cable for programming.

The board breaks out all 100 pins to 0.1" headers surrounding the chip, brings the USB signals out to a USB-B port, and breaks out the JTAG signals to a 14 pin header for easy connection for debugging.

The included MSP430F6638 is a 16-bit RISC microcontroller running at up to 20MHz, with 256KB of flash, 16KB of SRAM, 12-bit 16 channel (12 external) 200ksps ADC, 2 channel 12-bit DAC, USB full-speed interface, and a lot more.

The MSP430F6638 includes a built-in USB bootloader which can be used with the Uniflash software to program the chip without the need for a JTAG debugger.

The board is un-used, but does not include the original packaging, as that was discarded a while back.
