TSD20-Datasheet and Usermanual download

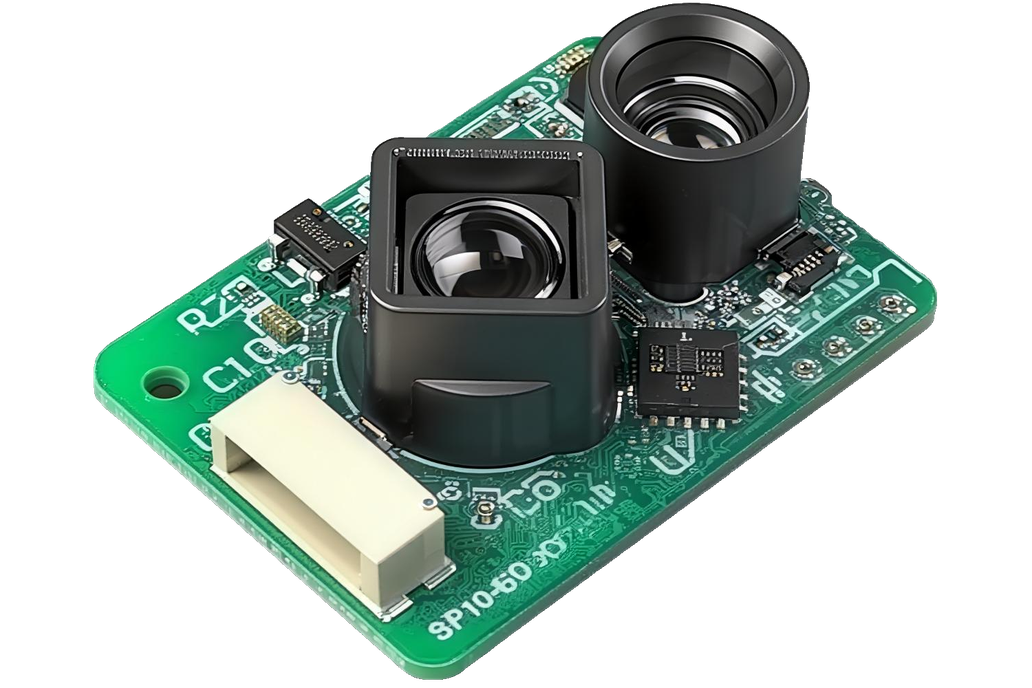

• Model TSD20

• 1 Range 0.05m～20m (90%reflectivity),0.05m～10m (10%reflectivity)
• 2 Frequency 200Hz（adjustable100/50/20/10/1Hz）
• 3 Accuracy ±5cm(<5m), 1%(≥5m)(1σ)
• 4 Repeatability ±10mm
• 5 Ambient Light Immunity 8m@100KLux
• 6 Central Wavelength 905nm
• 7 Photobiological Safety Class 1
• 8 FOV 3°
• 9 Wavelength for Indication N/A
• 10 Photobiological Safety for Indication N/A
• 11 Supply Voltage 3.0~3.6VDC
• 12 Peak Current 3.3V@70mA
• 13 Average Current 3.3V@40mA
• 14 Average Power Consumption <0.2W
• 15 Communication Interface UART/IIC
• 16 Protection Level N/A
• 17 Dimension 21x 15 x 7.43 mm
• 18 Weight 2g
• 19 Operating Temperature -20℃ ~ +60℃
• 20 Wire Specification 6pin 0.8mm terminal, 20cm tinned stranded wires
• 21 Customization available in appearance / structure / output protocol
