A self-solder DHT11 sensor board for the Raspberry Pi
Designed by PocketMoneyTronics in United KingdomThis product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.
Note: requires soldering by the purchaser. This is a basic board that connects a DHT11 temperature & humidity sensor (included) to the first 16 GPIO pins of a Raspberry Pi. The sensor is connected to…
Read More…Note: requires soldering by the purchaser.

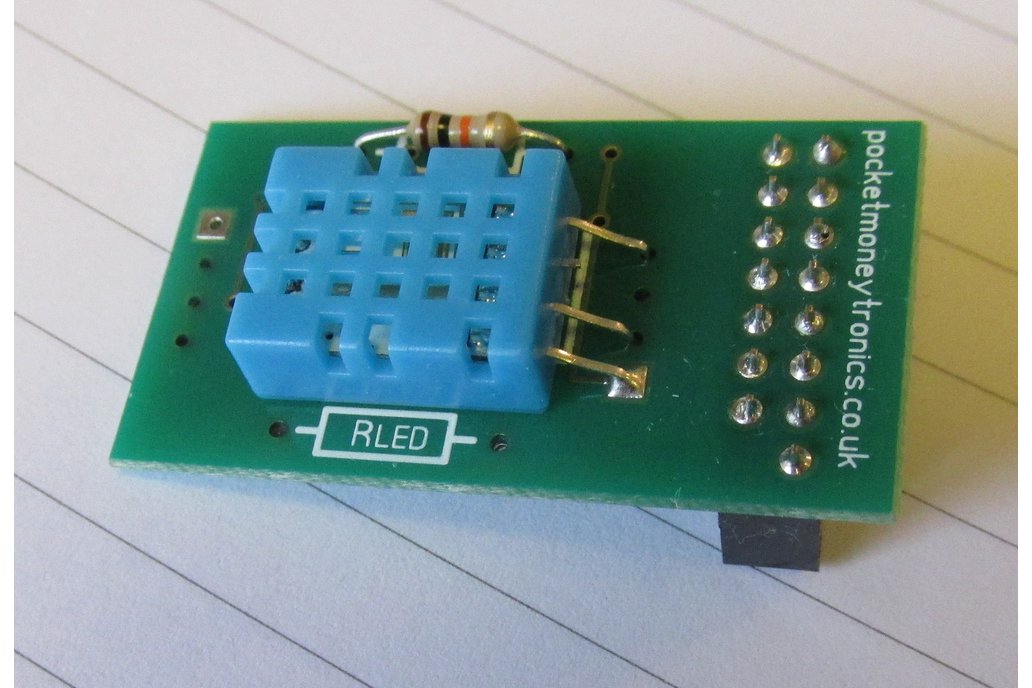

This is a basic board that connects a DHT11 temperature & humidity sensor (included) to the first 16 GPIO pins of a Raspberry Pi. The sensor is connected to GPIO pin 4.
Solder the 10K resistor in place and then the DHT11 (pin 3 need not be soldered and may be snipped-off). Then solder the header noting that it is "keyed" and will only fit onto the PCB in one orientation.
Connect the board to the top 16 GPIO pins (i.e. pins 1 to 16) ensuring the the board lays over the Raspberry Pi (i.e. is not sticking out the side).
You can then visit the excellent Raspberry Pi Spy website for software information:
https://www.raspberrypi-spy.co.uk/2017/09/dht11-temperature-and-humidity-sensor-raspberry-pi/
Note, though, that my board uses GPIO 4 so you should use this command:
python AdafruitDHT.py 11 4
Stansted Mountfitchet, Essex, United Kingdom
Ships from United Kingdom.
