Wide Input Range 15-52 V Buck Regulator with 3.3, 5 and 12 V outputs rated for 5, 5 and 10 A continuous.

Designed by PN Labs Inc. in Canada

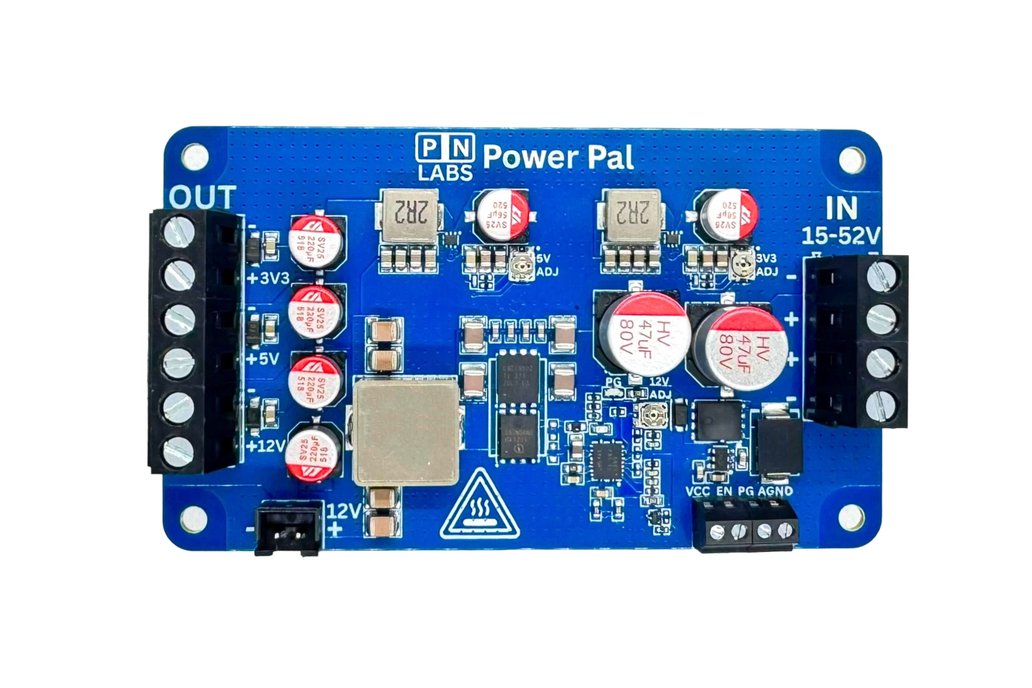

Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V 1

Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V 2

Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V 3

Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V 4

Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V 5

$59.95

Out of Stock

Wide Input Range 15-52 V Buck Regulator with 3.3, 5 and 12 V outputs rated for 5, 5 and 10 A continuous.

Product Specs:

12 V @ 10 A (up to 16 A*)
5 V @ 5 A (up to 6 A*)
3.3 V @ 5 A (up to 6 A*)
Wide input range: 15–52 V (14.5 V min)
160 W continuous operation at 25 C ambient, 250 W achievable by adding a fan with the onboard JST connector.
VIN pass-through terminal for powering downstream stages
Adjustable output trim to compensate for cable or load drop
High efficiency two-stage cascaded architecture for reduced heat generation.
Microcontroller-compatible external enable (EN).
Power-Good (PGOOD) output with onboard status LED
Controlled 80 ms soft-start to reduce inrush current during power-on.
Screw-terminal power connections for robust installs
Optional 12 V fan header for active cooling

Built-In Protection Features:

Reverse polarity protection (ideal-diode controller + MOSFET)
Input TVS surge suppression
TVS protection on all outputs
Regulator overcurrent limiting
Overtemperature shutdown
Undervoltage lockout / cutoff

Perfect For:

Robotics & autonomous systems
Battery-powered electronics (5S–12S lithium)
Prototyping and test equipment
Industrial & embedded controllers
Non-isolated PoE auxiliary supplies

If you’re tired of stacking regulators, fighting noise, or babying fragile power boards, Power Pal is your drop-in solution. Get yours today!
