Talk, See, Create — All on Your Pi

Bring sound and visual expression to your Raspberry Pi and unleash unlimited creativity!

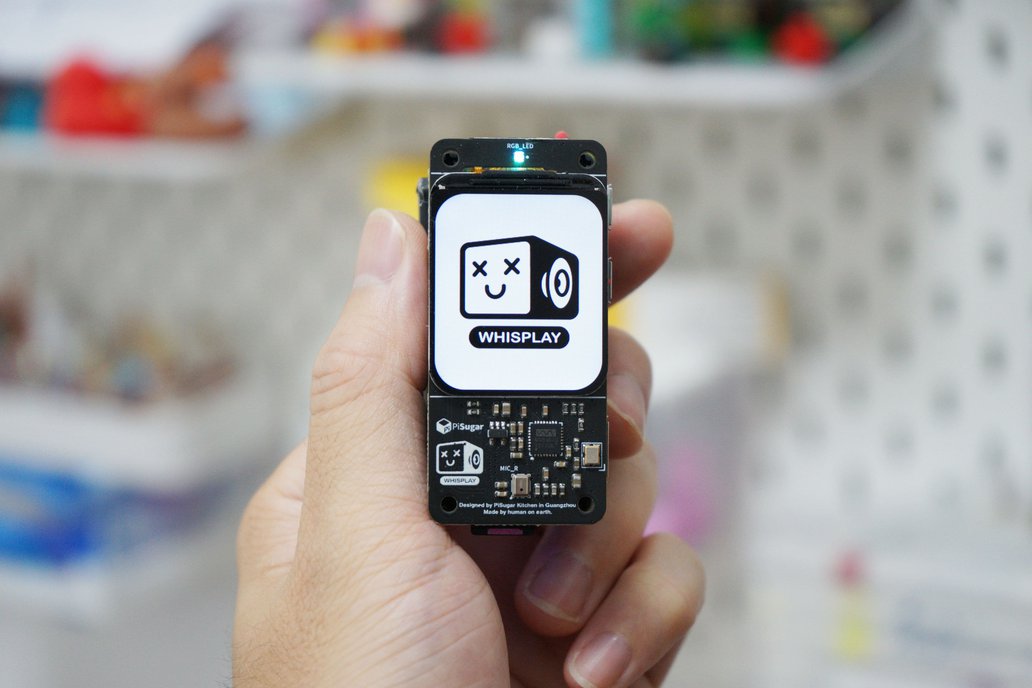

Whisplay HAT is a versatile expansion board integrating high-fidelity audio (WM8960 codec), 1.96-inch color LCD screen, RGB indicator lights, and programmable buttons. Perfect for voice assistants, smart speakers, or creative display terminals.

Compatible with Raspberry Pi Zero / Zero 2 W, it comes with full drivers and development examples to start creating right away!

More Details please refer to Whisplay HAT Docs

Key Features

• Same Dimension as RPi Zero
  Perfect match with Raspberry Pi Zero (2 W), ideal for handheld devices.

• High-Performance Audio
  WM8960 chip, dual microphones, onboard speaker, supports external speakers.

• HD Color Display
  1.69-inch LCD, 240 × 280 resolution, SPI interface, clear UI and status display.

• Colorful RGB LEDs
  For status indication or decorative effects.

• Mouse Click Button
  Customize actions, trigger programs, or simulate mouse clicks.

• Creative Interaction
  Compatible with Python, supports AI chatbot and other creative projects.

> Whisplay AI Chatbot Project Demo included.

Technical Specifications

Installation & Quick Start

1. Insert Whisplay HAT into Raspberry Pi Zero (2 W) GPIO pins, ensuring full contact
   (align the button side to the Pi's USB port side).The Whisplay screen is made of glass and very fragile. Hold the edges of the PCB when installing—avoid pressing on the screen.
2. Remove the protective film, insert TF card, and power on Raspberry Pi.
3. Install drivers (LCD, audio, buttons, LEDs) and run test tools.
   Whisplay Driver.
4. Refer to Whisplay AI Chatbot examples for rapid creative applications.

Product Contents

• Whisplay HAT board
• User manual

Safety & Compliance

• Do not disassemble or modify the Whisplay HAT.
• Avoid short circuits, fire, or exposure to high temperature.
• Keep away from water; store in dry conditions.
• Keep packaging materials away from infants to prevent choking.
• Complies with FCC Part 15 regulations.
• Meets EU/UK safety and compliance standards.
