74HC595 Breakout Board v1 – Kit Description

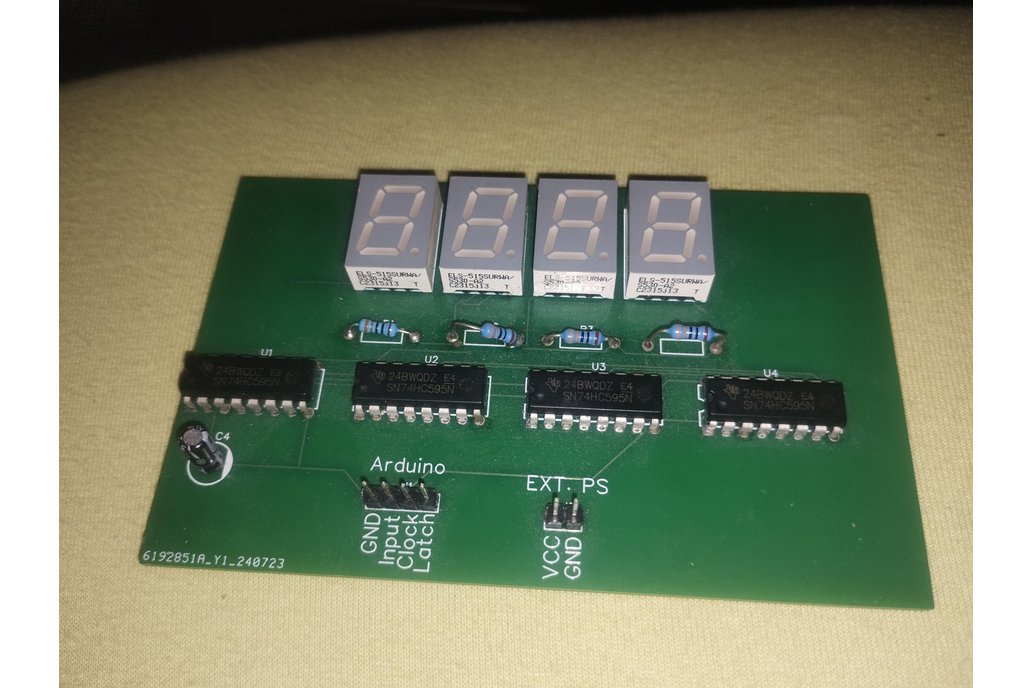

This is the first version of a simple breakout board designed for the 74HC595 shift register. It allows easy prototyping and use of 7-segment displays, LEDs, or other devices controlled via serial-to-parallel data.

Features:

Supports four 74HC595 shift registers

Included in Kit:

1x PCB v1

4x 74HC595 IC

1x 10µF ceramic capacitor

4x 7 Segment displays

4x 330 Ohm resistors

1x 2-pin male header

1x 4-pin male header

Notes for Assembly:

This is a DIY kit; all parts must be soldered by the user.

This v1 board has two small solder bridges that must be manually bridged using solder or a wire.

The board was hand-designed and tested. It has minor layout limitations but functions as intended

GitHub:

All design files, schematics, BOM, and updates can be found on GitHub: https://github.com/MidnightPavlaka635920/74HC595-PCB-project There, soldering problems are fixed.

On my other repo, I wrote about library and examples for this.

If you liked this, I will be posting V2 soon. This is what you have to bridge:
