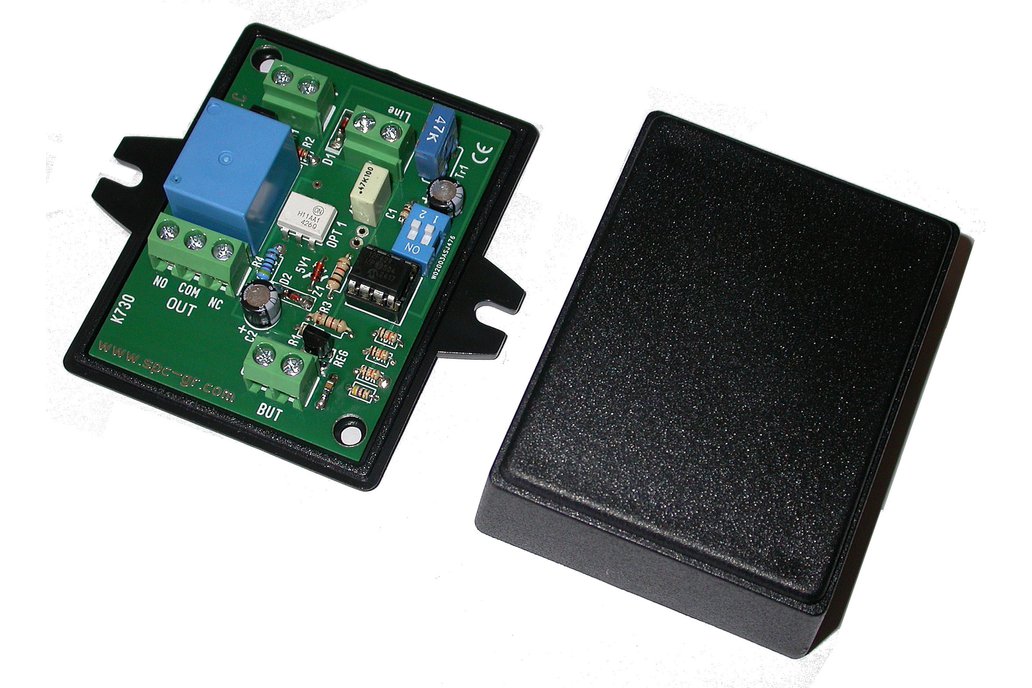

TELEPHONE RING DETECTOR K730

Unable to hear your phone ringing?

Noisy Environment?

Missing important calls?

A simple device that can be used to give a signal or to operate an electrical device every time the telephone rings.

This device has 3 modes of operation:

1. The relay (output) follows the ringing of the telephone, ON-OFF-ON-OFF etc.

2. The relay (output) does not follow the rhythm of the ringing, but remains permanently ON as long as the ringing lasts.

3. The relay (output) remains ON even if the ringing stops. It closes when the person in charge, security guard, etc. presses the button. Suitable for factories, large warehouses and where someone needs to know that the telephone has rang.

Very useful for noisy places, where a light signal or a siren can draw the attention to the phone better than the telephone bell or for cases where the telephone is in such a place that cannot be heard and you need a secondary bell.

COMPLETE ISOLATION BETWEEN TELEPHONE AND LOAD (2000 - 5000V).

SPECIFICATIONS:

OPERATING VOLTAGE: 12-15VDC.

CURRENT CONSUMPTION: 30mA.

OUTPUT: RELAY SPD

OUTPUT CURRENT: 10A (max)

DIMENSIONS: 60 X 45 X 23 mm

ENCLOSURE COLOUR: Black or Grey.

User guide (English).

5 YEARS WARRANTY.
