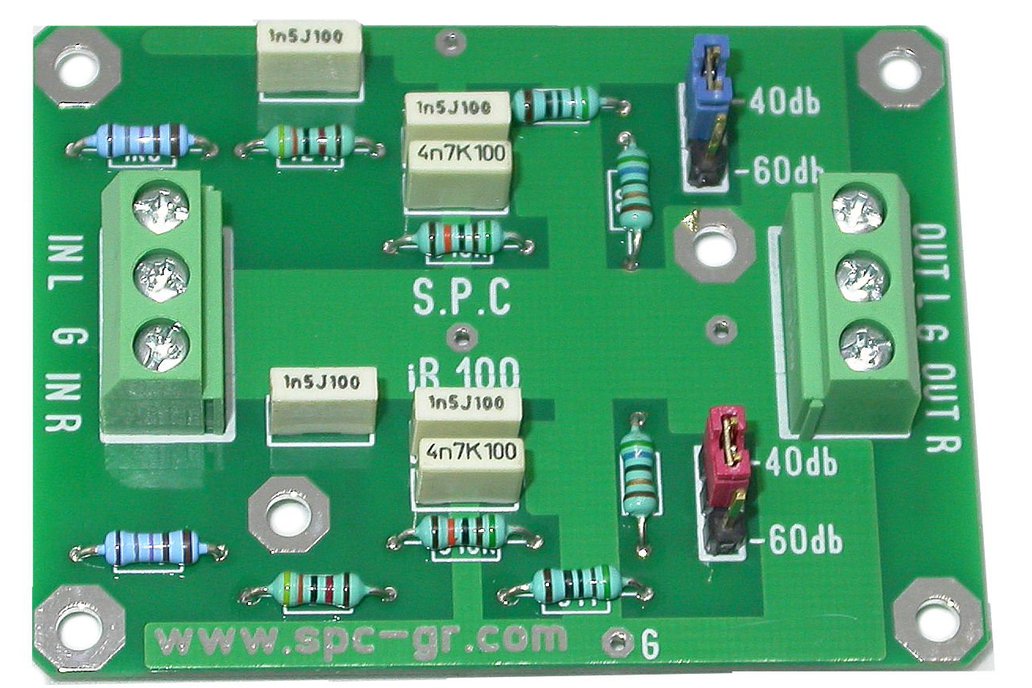

Inverse RIAA , Reverse RIAA iR 100 S.

It is Only the board, which has been assembled and tested.

This Stereo Passive reverse RIAA pcb, allows you to attenuate a standard line level source (150-300mv) and to equalize that signal according to the RIAA standard.

With This Small PCB You Can: · Playing line level audio (CD, music player, iPhone, computer, etc.) through the Phono input on your amplifier, mixer or receiver.

·Testing your Phono preamp using a line level source.

No power supply needed.

        ** Suitable for both MM and MC inputs.**

FEATURES:

Input Impedance: 47 Kohms at 1kHz (50 ohm min.)

Output Impedance: 47 Kohms (600 Ω min).

Input sensitivity: 150-300 mV.

Output: 0,2-5 mV.

Accuracy: +/- 0.5db - +/- 1.0db

On Board 2 Level Switch -40dB / -60dB outputs (MM, MC)

Pcb Size: 64 X 45 mm.

Green or Blue double-sided HAL,FR4.

Resistor metal film.

Capacitor 5% Polycarbonate.

5 Years Warranty.
