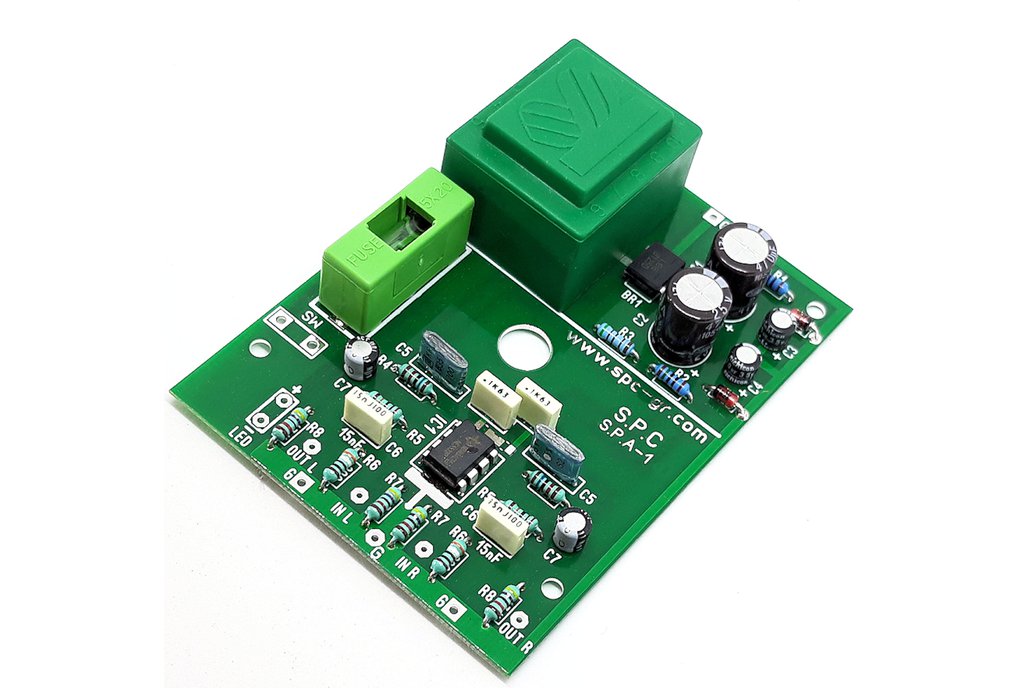

It is Only the board, which has been assembled and tested.

It is a Hi-Fi turntable phono pre-amplifier that allows you to connect low signal output turntables, magnetic cartridges to an amplifier, or sound mixer that has normal stereo line level inputs (100-300mV). You can use this good quality RIAA equalised pre amp without signal loss or distortion and avoid to buy expensive sound amplifier or sound mixer. You can connect it to the sound card of your computer and convert your old records in mp3.

FEATURES:

Supply Voltage : 220-240VAC or 110-120VAC.

Input Impedance: 47 Kohms at 1kHz.

Output Impedance: 47 Kohms (200 Ω min).

Input sensitivity: 2-3mV.

Output: 300mV (1.8V max).

Gain: 40db.S/N ratio: >85db.

Frequency Response: 20Hz to 20kHz +/- 0.5db.

THD: <0.05%.

Metal film Resistors and good quality capacitors. Symmetrical supply voltage (included).

WHAT'S INCLUDED.

1 x Phono preamplifier pcb.

1 x Internal Power Supply.

1 x User guide. (English)
