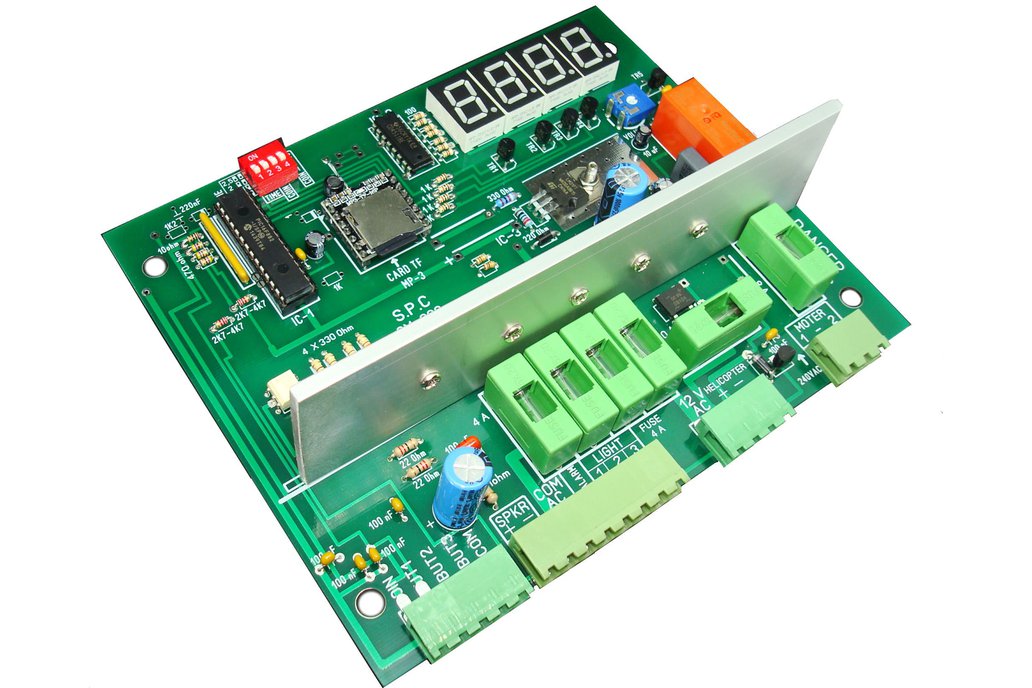

ALL YOUR RIDE FUNCTIONS ON ONE BOARD.

Why complicate your life with multiple boards when you can have ONE board that does all your functions.

1. Time selection for the duration of the ride(1 to 2,5 minutes)

2. You can select the number of the coins (1 or 2).

3. There are three inputs for buttons for various sounds during the ride.

4. There are 3 outputs for the lights (12V/50W each). When the ride is on stand by, the lights will flash randomly.They will also be flashing during the duration of the ride.

5. One output for lights flashing only during the ride (12V/50W).

6. An output for the speaker with an amplifier with adjustable volume. (10w).

7. An output for the Motor through relay 8-16Amps (you can use any voltage you want up to 240VAC).

8. An extra output for a helicopter/plane which does the up and down function. A powerboard is required. (not included).

9. Meter coins with legible display with 4 digits.

10. The Coins meter can be reset by the user.

11. Three recorded messages, that can be updated by the user (the ride begins, the ride is over, etc).

12. Three recorded sounds for the buttons.

13. The number of the songs depending on the memory, sd card included.

14. The song continues to the next game.

15. You can easily change or add other songs (mp3). You can change the sounds of the buttons. You can also change the messages of the ride.

    Superior Sound Quality (mp3).

16. We can do changes on the program, depending on your needs.

17. High quality double side PCB.

18. Plug-in screw terminals for quick and easy installation.

19. Power Supply: 12VAC

Coin Switch. All mechanical coin mechanisms are compatible. Some electronic coin mechanisms that generate dry contact closures are also compatible.
