‼️Note:

This product is a PCB, not a complete keyboard.

Since there are many types of Hall Effect (HE) switches on the market, if you are unsure whether your switches are compatible, please contact the shop for advice.

⚙️Product Information

Type: Hall Effect PCB

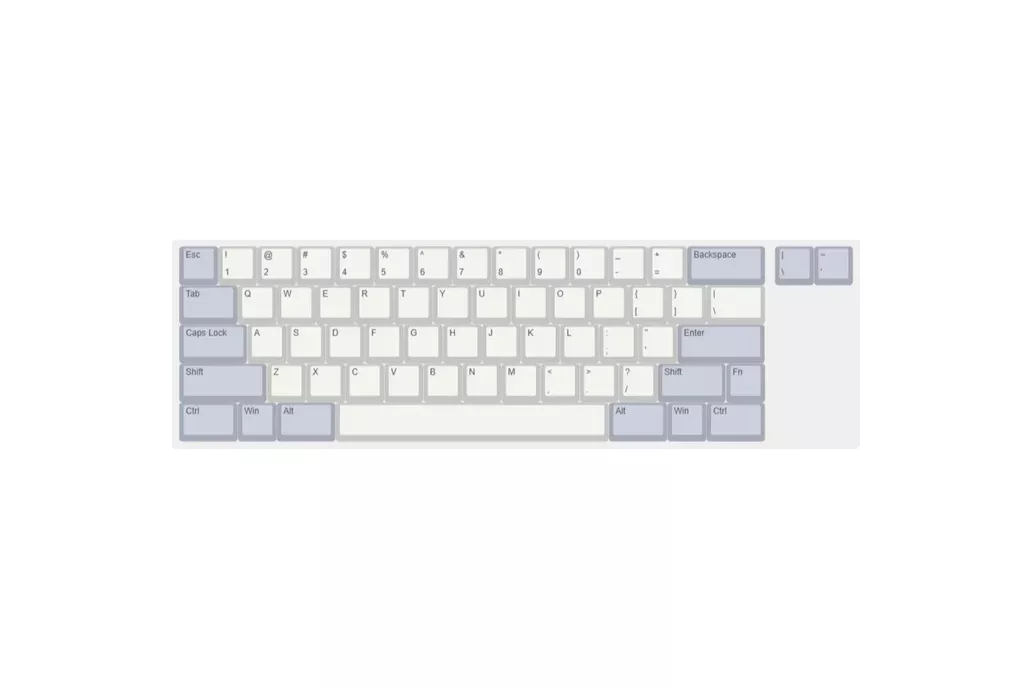

Layout: 60% 6.25u / 60% 7u (Tsangan)

Material: FR4

Thickness: 1.6 mm

Software: Web-based configuration

Supports: 8 KHz polling rate & 14 KHz scan rate per key

Latency: 0.16 ms

Architecture: RISC-V32

Includes: Daughterboard with JST port

Supports: PCB-mount stabilizers

🎮Compatible Switches

Geon Raw HE

Geon Lucifer HE

Gateron Jade Pro / Jade Max / Jade Ruby / Green Dragon

Any N-pole magnetic switches with magnetic flux lower than 1600 Gs (List is being updated)

🛠️Required Components to Complete the Build

VENOM 60 HE PCB

Compatible HE plate

Hall Effect switches

Compatible case

PCB-mount stabilizers

Venom HE foam kit (optional)

⁉️Additional Product Notes

PCB does not include JST cable or screws.

Screws are included with the VENOM plate.

PCB is made to GH60 dimensions, a standard in the custom keyboard community.

Before assembly, test the PCB to ensure all keys work.

Remove the yellow tape on the stand-off legs before screwing in.

Use all 8 screws when mounting PCB and plate.

Once removed, the USB Type-C port cannot be reattached.

Remove daughterboard before use to avoid shorting with the case bottom.

Daughterboard and USB Type-C port are made of FR-4 and must be removed using flush cutters; using other tools (e.g., scissors) may cause damage.

🗒️Defect Check Guide

Use a USB 2.0 High-speed cable or higher; USB 3.2 GEN1 SuperSpeed cable recommended.

Avoid using USB hubs.

Use Chrome browser.

Reinstall USB drivers if needed.

Upgrade firmware and restore factory settings.
