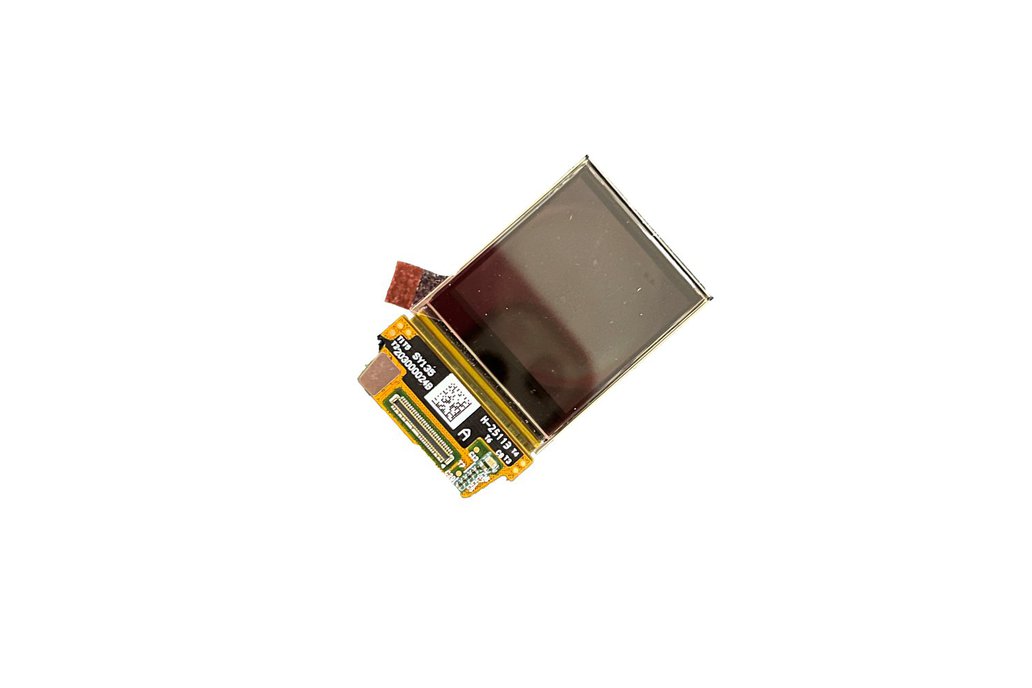

Product Overview

This display is a 1.3 inch diagonal, 3552× 3552 dots active-matrix color OLED module based on single-crystal silicon transistors， this 1.3 inch micro oled display panel with FHD 3552× 3552 High resolution and high luminance level up 1600cd/m2, popular used in virtual devices such as AR Glasses and VR Headset, thanks to its micro Si-OLED (Silicon Organic Light Emitting Diode) technology, this micro screen is with very impact size, light weight and low power consumption, also applicable for the medical and military industry such as Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD) etc.

Applications: View finders, Head mounted displays, etc.

1.3 inch Si-OLED micro display Parameter

• Display Type:Micro OLED
• Resolution:3552(H)x3552 (V)
• Pixel Arrangement:Hexagon, delta arrangement
• Number of dots:37.8M (3552x3552x3)
• Pixel Pitch:6.543μm
• Screen Size:26.638mm x 44.835mm x 1.625mm
• Active Area:23.241×23.241mm/ 1.3 inch diagonal
• Luminance(Brightness):1600nits at 20% emission duty cycle(Typ.)
• Color:Full RGB
• Contrast Ratio:200,000:1
• Interface:MIPI+I2C
• Frame Rate:Up to 90Hz
• Operating Temperature:-20℃ to +70℃
• Storage Temperature:-40℃ to +80℃
• Gray Levels:256 or 1024
• Plan:Mass Production
• Application:AR VR devices, EVF, Night vision, sight...

1.3 inch Micro OLED 3552x3552 Features:

• AP Operated Resolution:3552×3552
• Frame rate: up to 90Hz
• Normal operation supports full color mode: 16.7M colors (24-bits 8(R):8(G):8(B)) or 1.07G colors (30-bits 10(R):10(G):10(B))
• With Micro-lens design and light output tuning

Interface - --MIPI-DSI (Display Serial Interface) interface with 2 ports（8 lanes） - --Only support video mode，only support Non-burst mode sync with events and Non-burst mode sync with pulses - --MIPI data rate up to 1.65Gbps - --I2C interface

• Support VESA DSC version 1.1, 8/10bpp with 1/3 data compress,10bpp with 1/3.75 data compress
• Support Scaling up to x1.0 ~ x2.0
• Support Scan Flip control
• Border shift 8 pixel (Left/Right/Up/Down)
• Wide range Brightness adjustment
• Normal Rolling/Rolling Back
• BIST (Built-in self-test) engineering pattern for testing
• Color Adjust: brightness, contrast, hue, & saturation
• Power fail (ELVDD/ELVSS/GVDDP/GVDDS/ELVEE)

Fail indicator:

• --Input sync fail
• --Power fail (ELVDD/ELVSS/GVDDP/GVDDS/ELVEE)

Power Requirement:

• --I/O supply voltage range for VDDI: 1.8V
• --Digital supply voltage range for DVDD: 1.26V
• --Analog supply voltage for ELVDD: 3.8V
• --Analog supply voltage for ELVSS: -7.5V

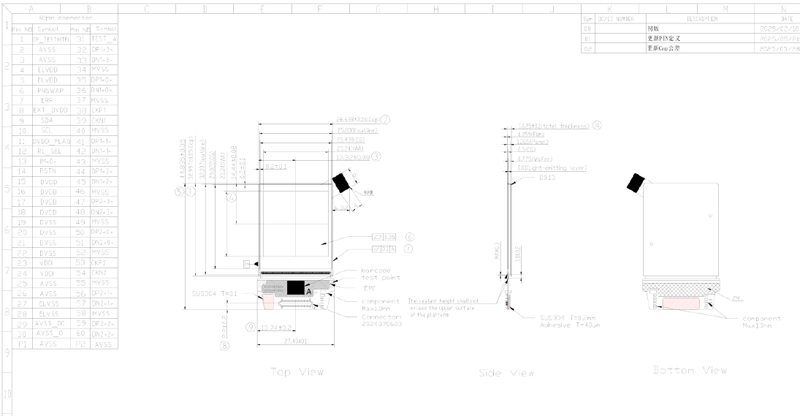

Dimension

1.3 inch 3552x3552 Micro display Screen Applications:

• AR/VR display, electronic viewfinder of digital camera/video camera；
• Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
• Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
• Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
• Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
