MICRO AR VR DISPLAY 0.62 INCH OLED MICRODISPLAY WITH IGH RESOLUTION 1728*1368 1800CD/M2 OLEDoS SEEYS Micro Display SUPPORTING MIPI 90Hz for 3D displays, head-mounted entertainment equipment Thermal imager displays

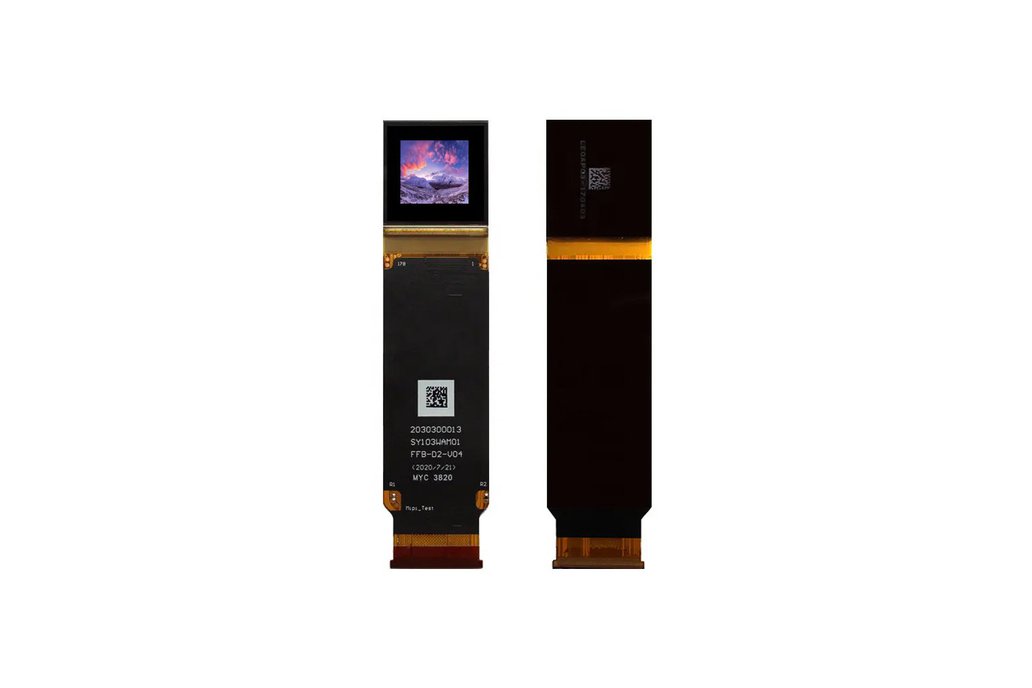

Overview of 0.62" micro oled display 1728*1368

The Micor OLED Display is a 0.62 inch diagonal, high resolution (1728*1368), active matrix color OLED (Organic light Emitting Display) panel module based on singal crystal silicon backplane. The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low consumption.

Micro OLED, or Silicon OLED, as a new display combining semiconductor and OLED technology, will be the main solution for VR, AR, and other next-generation smart wearable displays. As 5G and AI technology continue to advance, more and more wearable display products will become more attractive!

Its widely used in AR, VR, wearable device, gunsight, night vision, telescope, engineering, medical facility. We also provide single/dual hdmi board for this micro OLED. This board is based on FPGA, so its a little expensive.

0.62 inch Si-OLED micro display Parameter

• Display Type:Micro OLED
• Resolution:1728 x 1368
• Screen Size:21.09mm x 22.77mm x 1.5mm
• Active Area:12.4416mm x 9.8496mm/ 0.62" diagonal
• Luminance(Brightness):1800nits(Typ.)
• Color:Full RGB
• Contrast Ratio:50,0000:1
• Interface:MIPI+I2C
• Frame Rate:90Hz
• Operating Temperature:-20℃ to +70℃
• Storage Temperature:-40℃ to +80℃
• Plan:Mass Production

Application:AR VR devices, EVF, Night vision, sight...

0.62" 1728*1368 Micro display Screen Features

• ◆ Small size high definition type
• ◆ High contrast
• ◆ Wide color reproduction range
• ◆ High-speed response
• ◆ Thin type and light weight
• ◆ Power saving function
• ◆ Up/down and/or right/left inverse display function
• ◆ Orbit supported

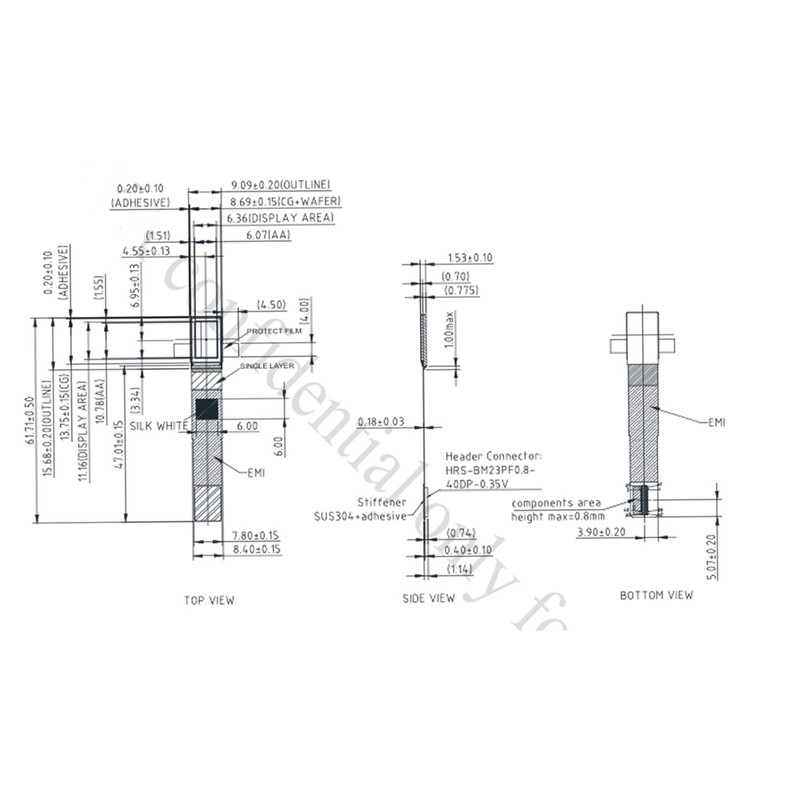

Mechanical Drawing of 0.62" micro oled screen

Mechanical Drawing of HDMI Controller Board

0.62" 1728*1368 Micro display Screen Applications:

• AR/VR display, electronic viewfinder of digital camera/video camera；
• Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
• Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
• Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
• Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
