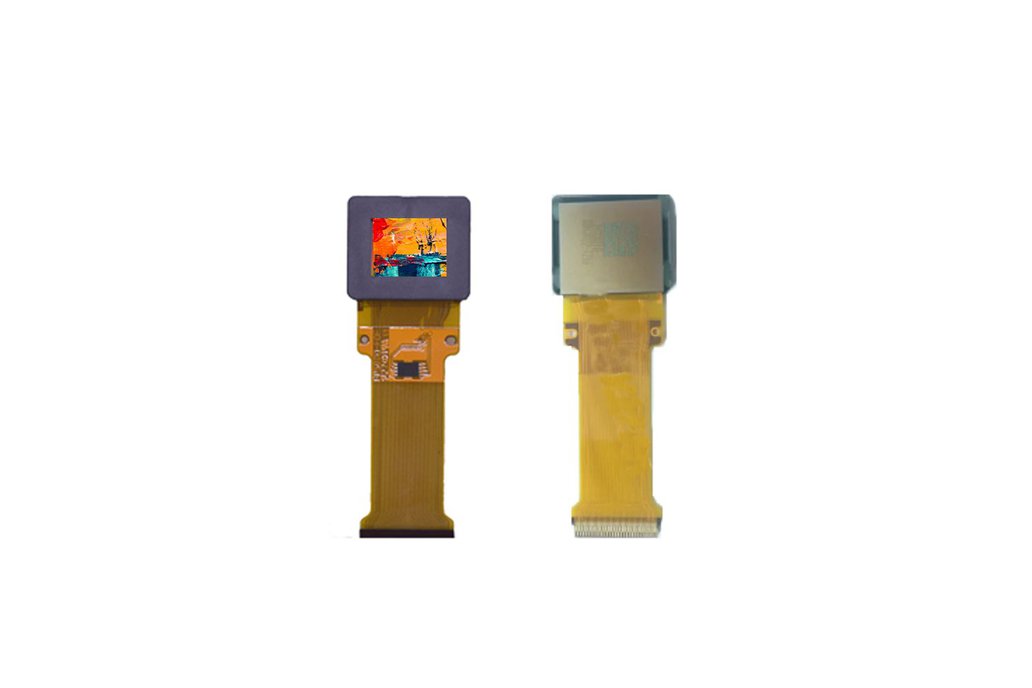

Overview

This Micro display is a1.3 cm (0.5 type) 0.5 inch in diagonal active matrix color OLED panel module uses single crystal silicon transistor. this 0.5 inch oled microdisplay module features a high resolution of 1024x768 and up 500cd/m2 high luminace. The panel adopts panel drive and logic drive to achieve small size, light weight and high definition. It enables NTSC/PAL progressive system of full color display.

This micro screen has no 3D display function.Application: viewfinder, video glasses, head-mounted display, etc.

Parameter for the 0.5" 1024x768 Micro screen:

• ◆Display Type:OLED Display
• ◆Display Size:0.5"
• ◆Display Color:Full color
• ◆Resolution:1024(RGB) ×768
• ◆Luminance:500 cd/m2
• ◆Pin No:61P
• ◆Interface Type:parallel RGB 24-bit/YCbCr 16-bit input
• ◆Display Driver Board:HDMI Port/CVBS /AV/VGA
• ◆Magnifting Optics: 12X
• ◆Module Dimension:10.14(H) × 7.644(V) (mm)
• ◆Appearance size (mm):17.8(H) × 15.2(V)(mm)
• ◆Operating Temperature : -10℃~70℃
• ◆Storage Temperature : -30℃~80℃

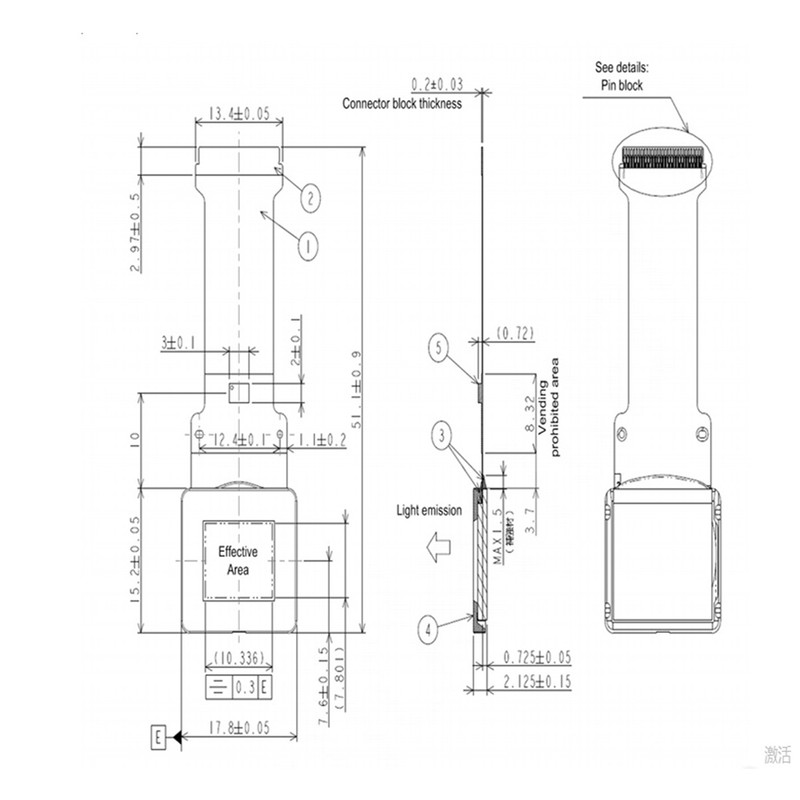

Dimension of 0.5" 1024x768 Micro screen:

Display Driver Board solution OPTIONS:

• AV/CVBS board
• HDMI board

Optical lens OPTIONS for 0.5" 1024x768 Micro screen:

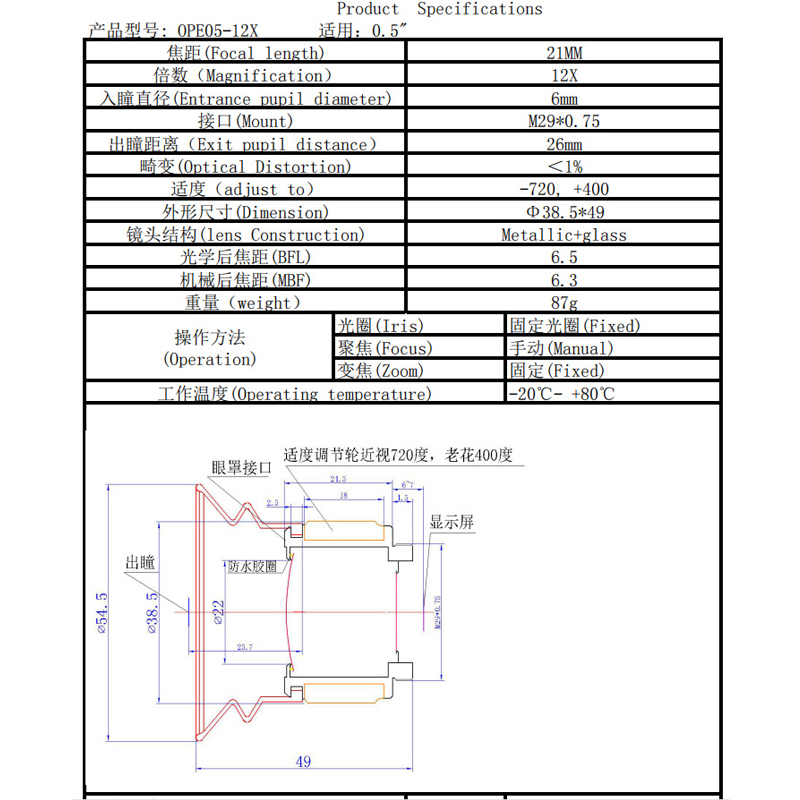

• OPE05-12X

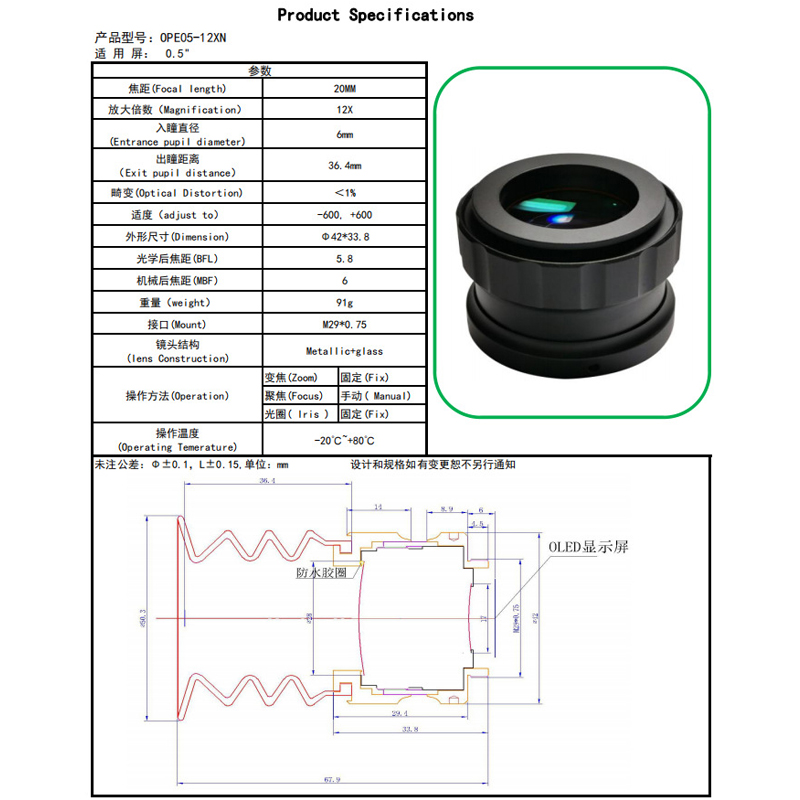

• OPE05-12XN

Feature of 0.5" micro oled screen

• Small size high definition type 0.5 display dots: 1024 (RGB) 768 = 2.36 M dots
• High contrast
• Wide color reproduction range
• High-speed response
• Thin type and light weight
• Power saving function
• Up/down and/or right/left inverse display function
• Orbit supported
• Element Structure
• Active matrix color OLED display element with on-chip driver using single crystal silicon transistors.

Applications fields of the 0.5" micro oled screen

• 1. AR/VR display, electronic viewfinder of digital camera/video camera.
• 1. Portable civilian equipment such as riding helmets, video glasses, head-mounted entertainment equipment, 3D display, game helmets, etc.
• 1. Security monitoring: individual helmet display, electronic sight, infrared night vision device, thermal imager display, flight helmet, gun sight, life detection video device.
• 1. Medical and industrial uses: human and machine video engineering research, endoscopes, portable B-ultrasound machines, vision correction equipment, intensifying mirrors, and various portable inspection and testing equipment.
• 1. Aircraft model: aerial photography, remote control aircraft parameter display system, remote control car video display terminal, etc.
