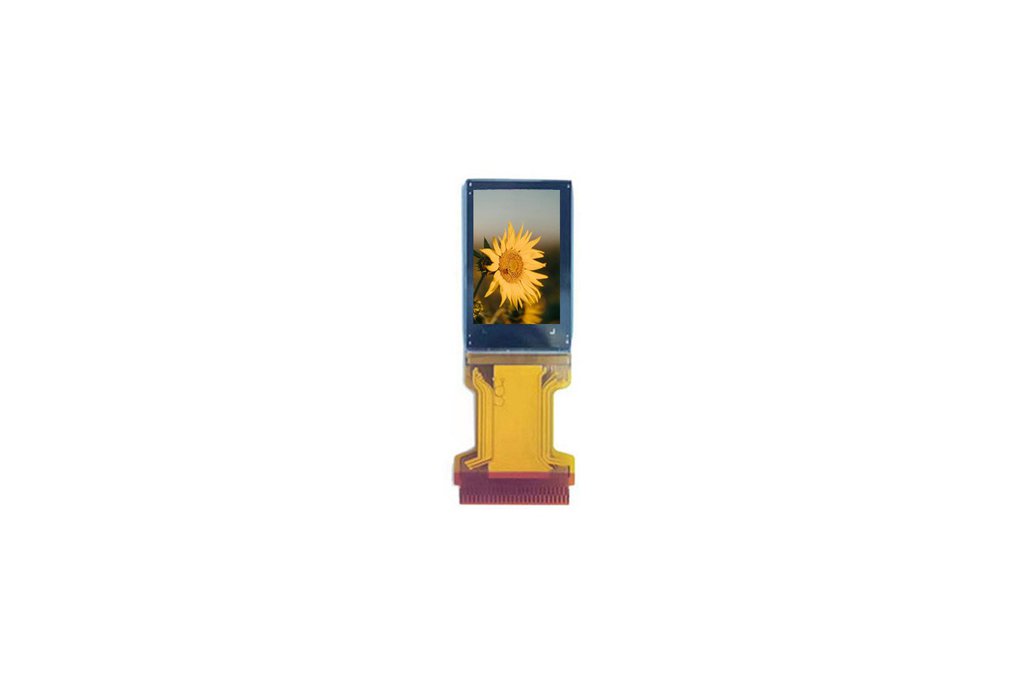

micro oled 0.55 inch 1920x1080 high resolution micro display screen 5000cd/m2 LVDS for Camera EVF and Scope EVF

Overview

This 0.55 inch Micro OLED Display, featuing a high FHD resolution of 1920x1080 pixels, high brightness up to 5000 nits, high display contrast of 100,000:1 and supports LVDS interface; which makes this micro oled screen popular in the fields of AR Glasses and VR Headsets ;also based on its oled technology of a single-crystal silicon backplane, this Microdisplay makes the pixel circuits and driving IC integrated on the silicon backplane to get the compact size and very low power consumption, which is ideal to be used Head-mounted displays, Near-Eye displays, Military gunsight, and thermal imager,etc.

0.55 inch Micro OLEDos display 1920x1080 parameter

• Display Type: Micro-oled,SI-OLED
• Resolution:1920x1080 RGB=6.22 millions dots;FHD 1080P
• Number of dots: 6.22M dots
• Useable Display Area: 0.55" diagonal
• Dimension:10.5x17.5x1.5mm
• Luminance: up to 5000cd/m2 Max
• Contrast Ratio:100,000:1
• Power Consumption :569mW
• Interface: RGB 24Bit/YCbCr 24bit, 16 bit LVDS, 51 pins, FPC
• Frame Rate:60Hz-120Hz
• Operating Temperature:-20℃~70℃
• Storage Temperature:-30℃~80℃

0.55 inch Micro OLED Display Features:

• High-Resolution Display The display features a resolution of 1920x1080 pixels, providing sharp and clear images.

• Low Power Consumption Si OLED are known for their energy-efficient operation, the 0.55 inches Micro OLED module is only 569mW power consuption.

• High Brightness With a brightness rating of 5000nits, the 0.55 inch Micro OLED Display delivers vibrant and easily visible visuals, even in bright lighting conditions.

• Contrast Ratio The 0.55 inch Micro OLED 1920x1080 with a high contrast ratio of 100000:1, ensuring consistent and amazing image quality.

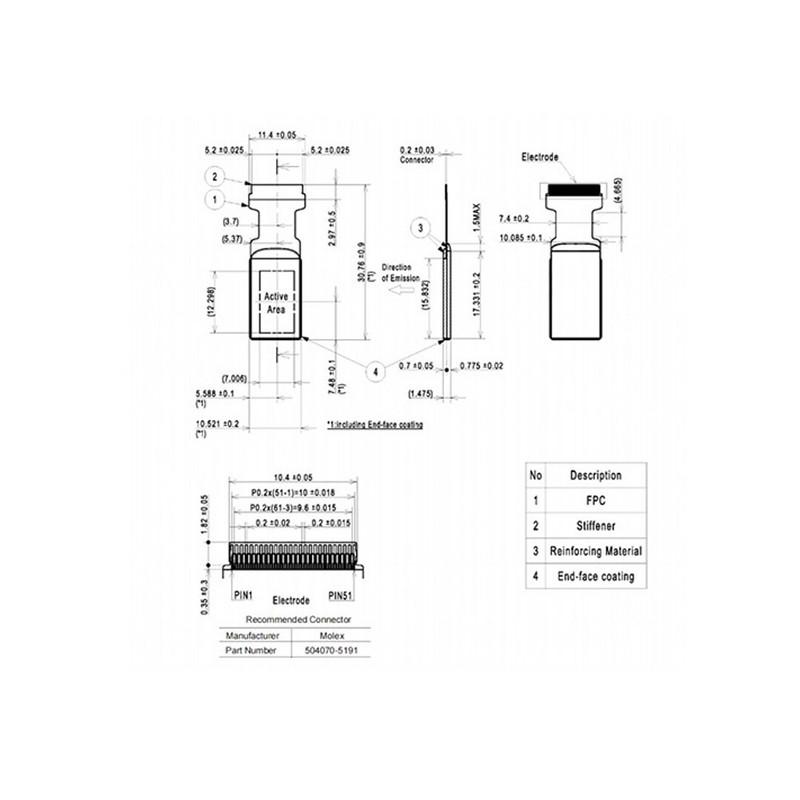

Mechanical Drawing

0.55 inch micro oled display Applications:

• ◆ EVF (electronic viewfinders) for consumer cameras;
• ◆ AR and VR glasses/goggles,entertainment, industrial applications, and sports,headsets for consumer AR glasses and the metaverse
• ◆ Drones and FPV
• ◆ All types of scopes
• ◆ Medical care (medical headset displays for surgery support and as displays for assistive auxiliary glasses for the vision-impaired)
• ◆ Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.)
• ◆ head mounted displays
• ◆ very small monitors,etc

Packing List:

0.55 inch Micro OLED Display:1pcs
