0.49" 20000nits High Brightness Monochrome Green Micro OLED Display Module for Helmet HUD/AR Waveguide

Grayscale Micro OLED 0.49

The Grayscale Micro OLED 0.49 inch 20000nits 1080P, manufactured by SeeYA Technology Corporation, is a cutting-edge Monochrome micro display that utilizes Si OLED (Silicon Organic Light Emitting Diode) technology. With its impressive Resolution of 1920×1080 pixels and a pixel density of 3692PPI, this display screen delivers stunning visual clarity and sharpness. The Rectangular pixel format ensures precise and accurate image reproduction.

The Grayscale (Green) Si OLED Screen boasts a Luminance of 20000 cd/m², provides exceptional visibility even in bright outdoor environments. Its high Contrast Ratio of 50000:1 ensures deep blacks and vibrant Grayscale images. These features make it ideal for applications such as Aviation Head-up Displays (HUD) and Head-mounted Displays (HMD).

Aviation Head-Up Displays (HUD) In the aviation industry, safety and precision are of utmost importance. The 0.49 inch Monochrome Grayscale Micro OLED , with its Resolution 1080P, 20000nits Brightness, and 50000:1 Contrast Ratio, proves to be an excellent choice for Aviation head-up displays (HUD).

HUDs project critical flight information directly onto the pilot’s field of view, allow for improved situational awareness and reduced pilot workload. The Micro OLED ensures clear and legible display of flight Parameters, Navigation Data, and Symbology, even in bright daylight conditions.

Head-Mounted Displays (HMD) Head-mounted displays (HMD) have revolutionized various industries, including gaming, Virtual Reality, and Augmented Reality. The SY049LDM02 micro display Compact Size, High Resolution, and Luminance make it a perfect fit for HMD applications. Whether it’s immersive gaming experiences, Realistic Virtual Simulations, or Augmented Reality Overlays, this display delivers crisp imagery, enhance the overall user experience.

0.49 inch Si-OLED micro display Parameter

• Display Type: Micro OLED,Micro si-oled
• Resolution:FHD1920 x 1080
• Screen Size:15.68mm x 9.09mm x 1.5mm
• Active Area:10.783mm x 6.065mm/ 0.49" diagonal
• Luminance(Brightness):20000nits(Typ.)
• Color:Mono Green
• Contrast Ratio:50,000:1
• Interface:MIPI+I2C
• Plan:MP
• Frame Rate:60HZ-90Hz
• Operating Temperature:-20℃ to +70℃
• Storage Temperature:-40℃ to +80℃
• Screen Driver borad: TYPE-C/HDMI Driver board
• Application:AR Glasses VR Headsets

0.49" FHD 1920x1080 Micro display Screen Features

• ultra high resolution 1920x1080
• high contrast and high brightness
• Light and thin
• lower Power consumption
• High refresh rate
• High-speed transmission.
• Short response time

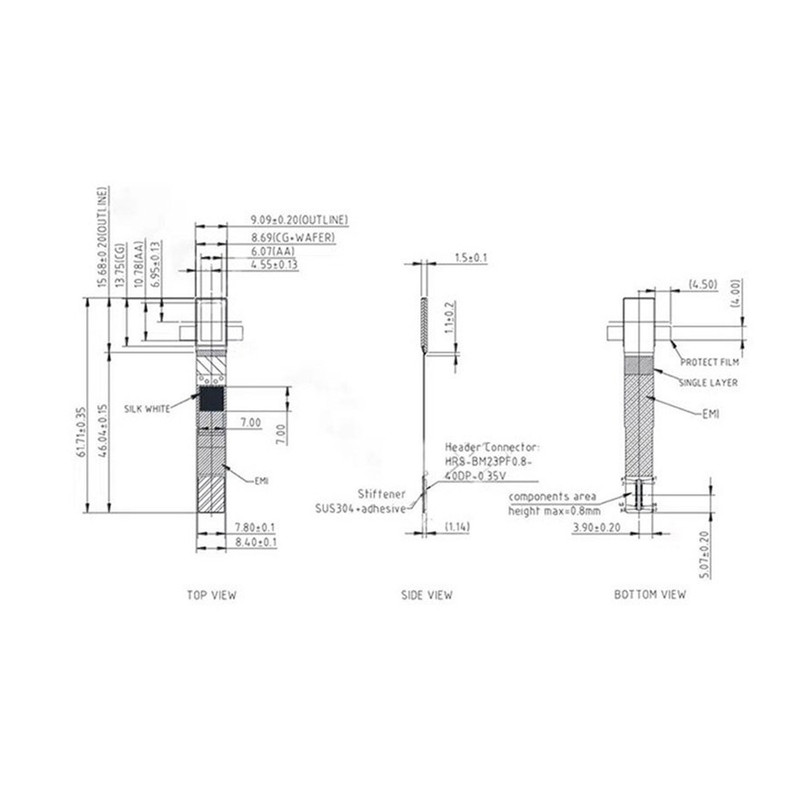

Mechanical Drawing for the 0.49" micro oled display mono green

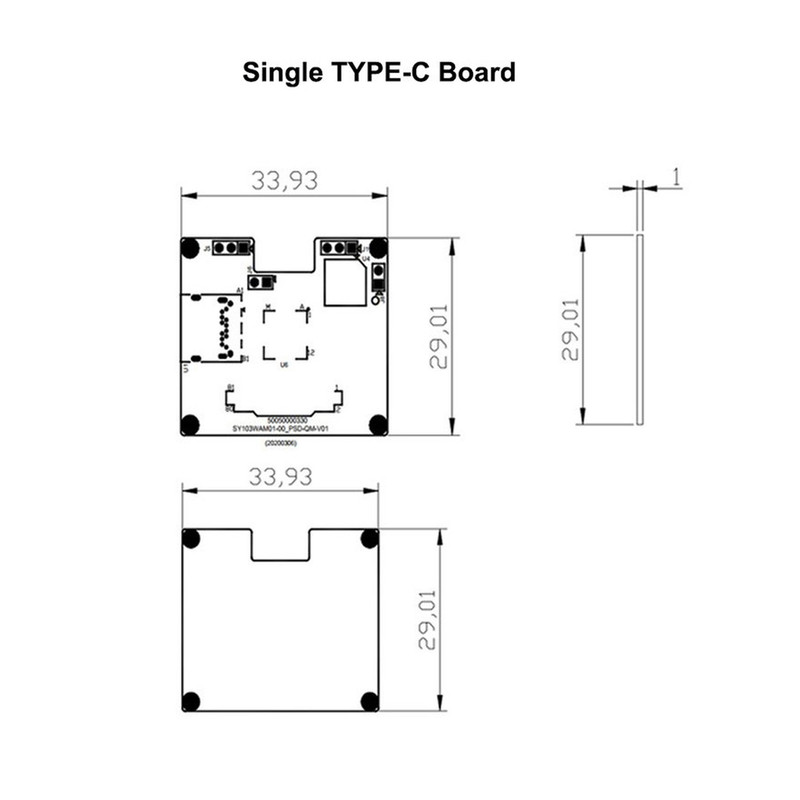

Mechanical Drawing for Monocular TYPE-C Controller Board:

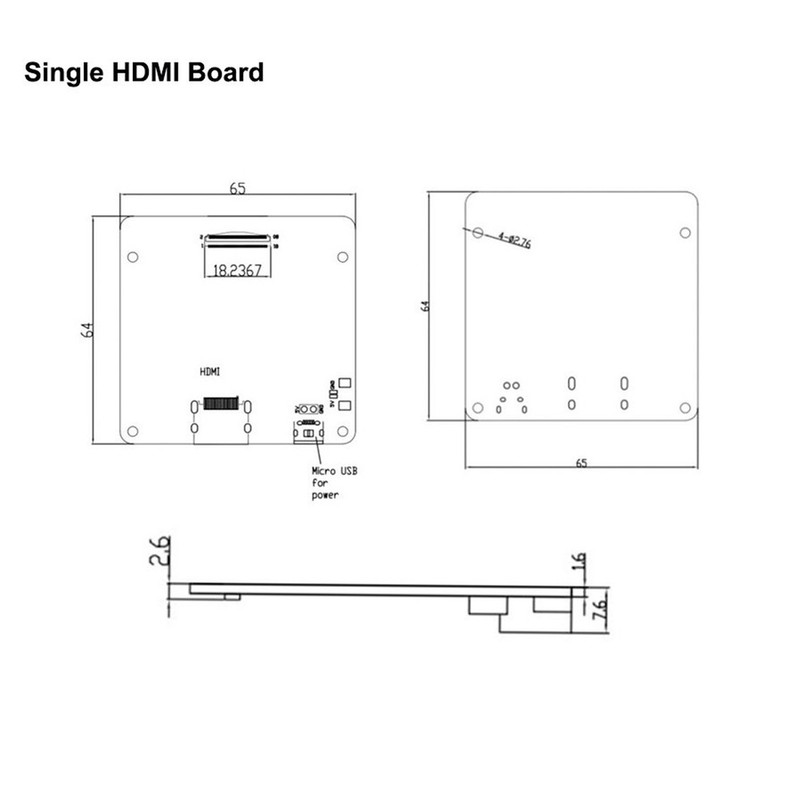

Mechanical Drawing for Monocular HDMI Controller Board:

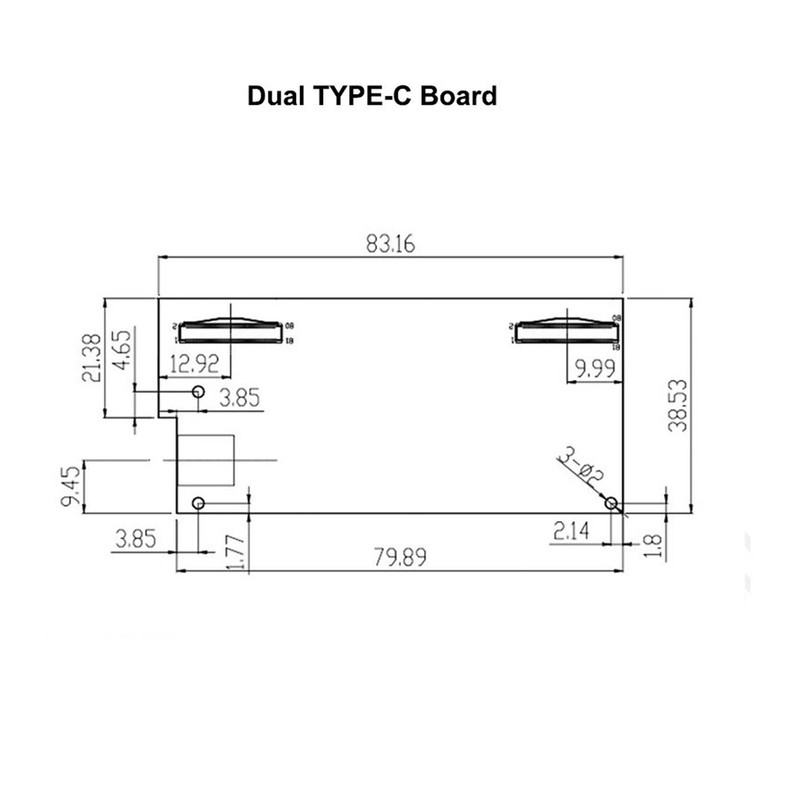

Mechanical Drawing for Binocular TYPE-C Controller Board:

Mechanical Drawing for Binocular HDMI Controller Board:

0.49" FHD 1920x1080 Micro display Applications:

• AR/VR display, electronic viewfinder of digital camera/video camera；
• Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
• Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
• Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
• Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
