Product Information

The IAQ-core Indoor Air Quality Module is a low-cost, ultra-compact solution for detecting poor air quality. This module uses micromachined metal oxide semiconductor (MOS) technology to detect a broad range of VOCs while correlating directly with CO2 and TVOC levels in the room.

Features

• Measure VOC levels
• Provide CO2- and TVOC equivalent predictions
• Data is available via I2C bus
• The sensor itself is protected by a plastic cap and a filter membrane
• Pull-up resistors are present on the board
• 4 mounting holes allow this breakout to be easily embedded into a project
• Supply Voltage 3.3V
• Board provides a place for connecting rows of 3 pin headers

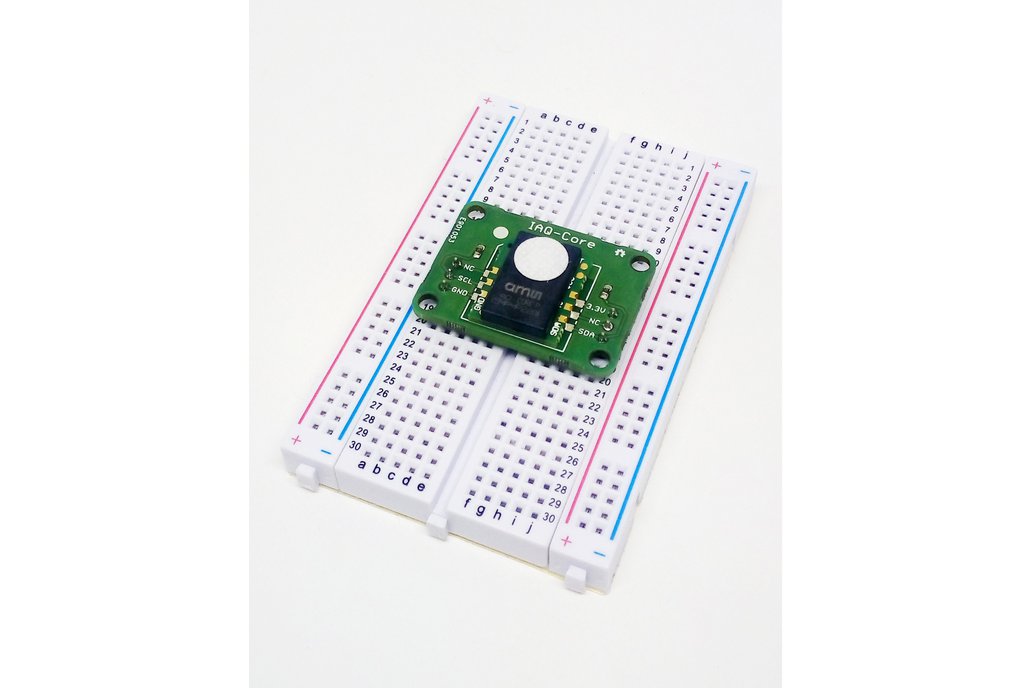

• Breadboard friendly
• 35,2 x 25,4 mm

Choice between IAQ-Core C and - P (continuous & pulsed). pulsed has 9mW power consumption and a measurement interval of 11s. (max). continuous has 66mW power consumption and a measurement interval of 1s. (max).

For information about the IAQ-Core please click here

Note: Please read the I2C addressing instructions carefully. An undefined use of the I2C interface could harm the iAQ-Core module and cause a loss of functionality.

Why did you make it?

This module opens a lot of possibilities for making awesome projects. You can use this board on a breadboard, making it easy to swap the board between projects. You can use this board in a final project or use it only for testing before making an actual PCB of your project.
