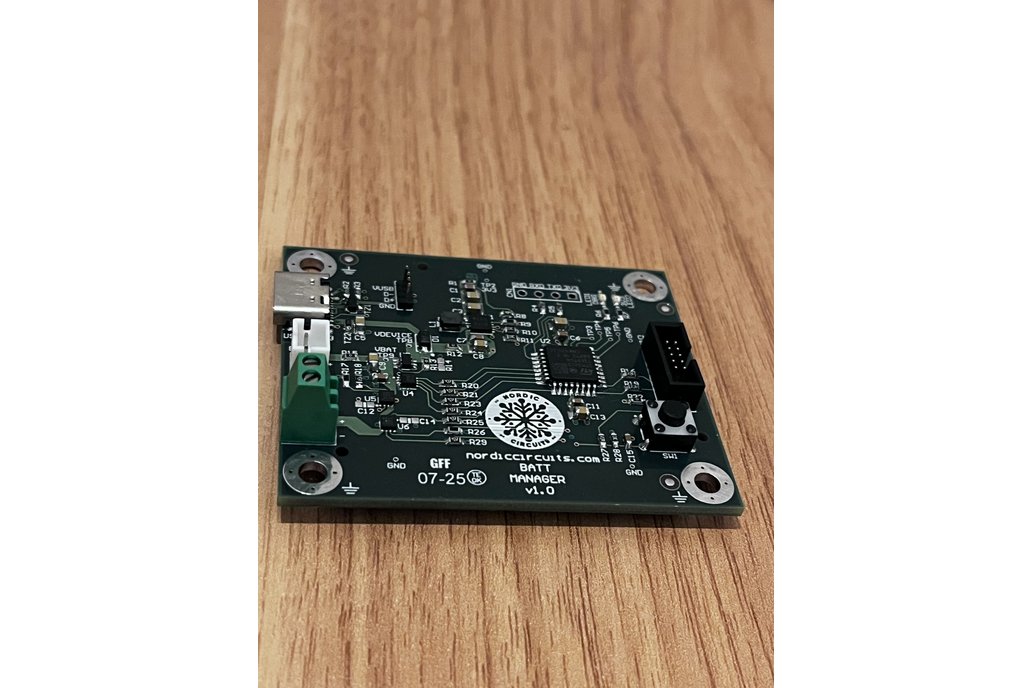

A Single Cell LiPo Battery Monitor and Switch is a compact device designed to monitor the voltage of a single-cell Lithium Polymer (LiPo) battery and provide the ability to connect or disconnect the battery from a load or charging circuit via a USB interface. This type of device is particularly useful for portable electronics, robotics, and embedded systems that require precise control over battery usage and charging. Here’s how it typically functions:

Key Features:

• Voltage Monitoring:
• The device continuously monitors the LiPo battery’s voltage to ensure the battery remains within safe operating limits. It typically provides real-time data that can be read over USB by an external controller, enabling both precise charge tracking and early low-battery warnings.

• Voltage monitoring protects against over-discharge, extending battery life and ensuring reliable operation.

• USB-Controlled Switching:

• Through a USB interface, the user or a microcontroller can toggle the connection between the battery and the device it powers. This allows users to remotely disconnect the battery for safe handling or during low-power conditions, which can be especially useful for battery-powered projects that need to conserve energy.

• Switching via USB is also helpful for devices in standby mode, allowing efficient energy management and manual or automated control over battery discharge.

• Protection and Safety Features:

• Most designs include protections against over-voltage, over-current, and short circuits, ensuring the battery remains safe even under varying loads.

• The monitor can include temperature sensing, providing additional layers of safety by adjusting usage under extreme temperature conditions.

• Charge Control:

• Some monitors integrate charging control, allowing the battery to be charged via USB when the device is connected, with monitoring to prevent overcharging.

Use Cases:

• Portable Electronics: Ideal for applications requiring periodic battery status checks and safe, remote shutdown capabilities.
• Robotics and IoT: Useful in battery-powered sensors and robotic devices where remote control and energy efficiency are crucial.
• Prototyping and Testing: Helpful for embedded system developers to monitor and manage battery health during testing without direct hardware adjustments.

Overall, this device offers a convenient way to control and monitor single-cell LiPo batteries in applications where USB-based power management and safety are paramount.
