INA2xx (10VSSOP) Breakout Board (PCB only)

Name: INA2xx (10VSSOP) Breakout Board (PCB only)
SKU: 29800
Price: 3.00 USD
Availability: Discontinued

This is a very simple breakout board for the INA2xx Current-Sense Amplifiers. It's a breakout board for the 10-Pin VSSOP footprints.

Designed by ElektroNik Zoller in Switzerland

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

Visit Store

More From ElektroNik Zoller:

Raspberry Pi UART to Ethernet Adapter

ElektroNik Zoller

$12.95

More "board" Related Products

8 Port LED Distro

Bong69

$65.00

Capacitive touch board

SugarBerry

$180.66

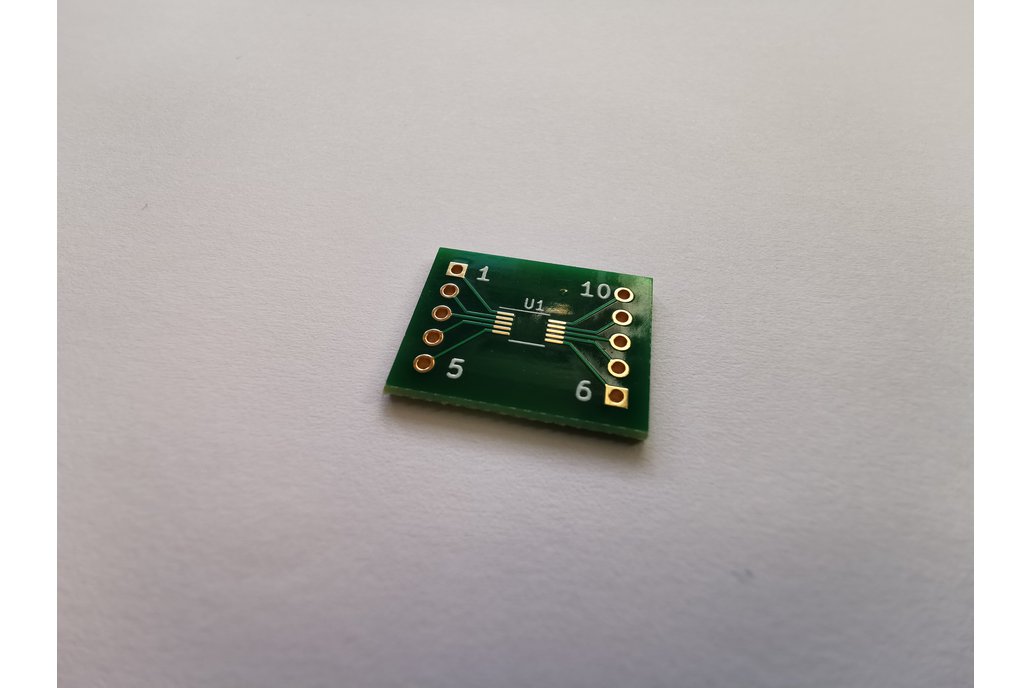

INA2xx (10VSSOP) Breakout Board (PCB only) 1

INA2xx (10VSSOP) Breakout Board (PCB only) 2

INA2xx (10VSSOP) Breakout Board (PCB only) 3

INA2xx (10VSSOP) Breakout Board (PCB only) 4




This is a very simple breakout board for the INA2xx Current-Sense Amplifiers. It's a breakout board for the 10-Pin VSSOP footprints.

Caution: You are only buying the PCB here! A assembled version can also be ordered on request (different price and small quantity only). Depending on demand, the product will then also be offered sep…

What is it?

This is a very simple and low level breakout board for the INA2xx Current-Sense Amplifiers. Actually it's a breakout board for the 10-Pin VSSOP footprint with only the footprint on it, nothing else.

Why did you make it?

As I want to set up some experiments with a INA229 as part of my bachelor thesis, I want to be very flexible in the design. That's why I designed this small breakout board. Its design generally allows the inclusion of a chip with the 10VSSOP footprint. Other footprints such as the MSOP also fit on the breakout board. By keeping the traces separate, the board can also be used for other chips.
