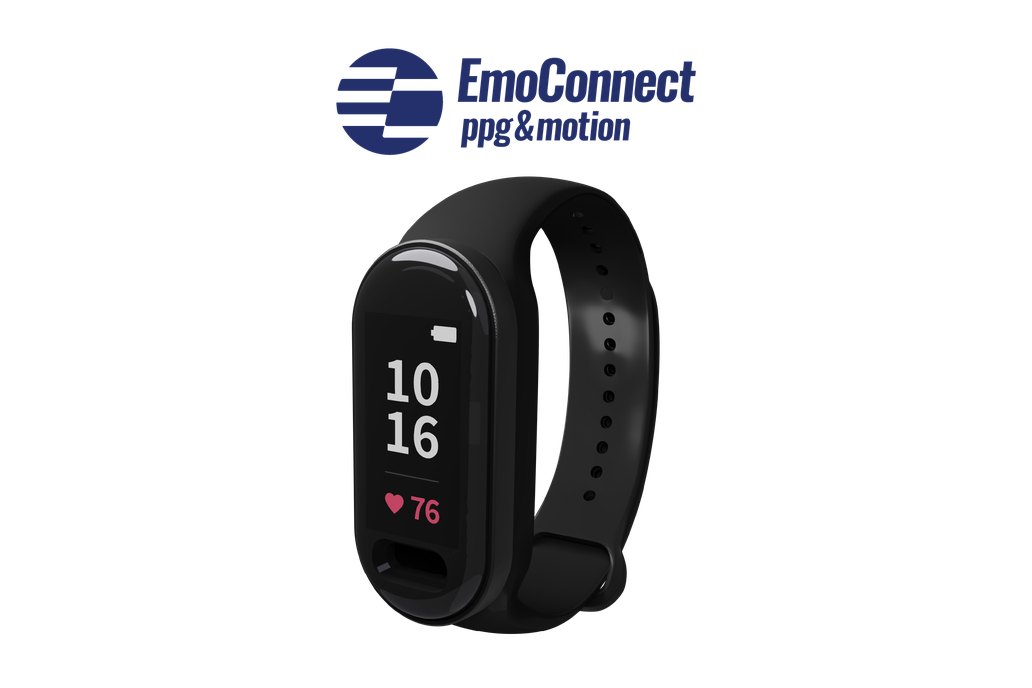

EmoConnect PPG&Motion

enter link description here

EmoConnect PPG&Motion is a measurement device that can simultaneously monitor a user's bio-signals and movements in real time, and its main purpose is to provide raw data to researchers and developers.

• list Photoplethysmography (PPG) sensor
• list Inertial Measurement Unit (IMU) sensor

It detects blood flow changes through PPG sensors and collects movement data through IMU sensors. This raw data can be used for various research and development purposes, and an SDK is provided so that researchers can 'customize' it. (Supports Android operating system. iOS, Windows, and Linux operating systems will be provided in the future.)

EmoConnect Features

• list Bluetooth (Bluetooth v5.0 Compliant)
• list PPG data graph
• list IMU data graph
• list Storage and transmission of measurement data

Provides 10 types of biosignal data

EmoConnect PPG&Motion provides 10 types of biosignal data.

• list PPG data
• list 9-axis IMU
• Acceleration (3 axis)
• Gyro (3 axis)
• Geomagnetism (3-axis)

Key Specifications ( Technical Specifications )

1. Measured Signals: PPG (1 channel), Accelerometer (3-axis), Gyroscope (3-axis), Magnetometer (3-axis)
2. Sampling Frequency: 50 Hz
3. Power Supply Interface: USB-C Type
4. Operating Time: Approximately 9 hours (based on 140mAh) / Charging time: about 2 hours
5. Country of Manufacture: Republic of Korea (Newert)

Notification

-This product is not a medical device and cannot be used to determine the presence or absence of any disease. - A medical examination by a physician is required to diagnose any medical condition. - This device provides raw data collected through sensors. It is intended solely for use in research, application development, or user evaluation based on biosignals. The device complies with KC certification requirements regarding essential manufacturing-related safety and environmental protection considerations, such as necessary product designs for final products.
