muRata UWB/Bluetooth LE Type2AB Evaluation board

Name: muRata UWB/Bluetooth LE Type2AB Evaluation board
SKU: 30926
Price: 60.00 USD
Availability: Discontinued

Complete ultrawideband test and development kit based on Qorvo's QM33120W-chipset and Nordic's NRF52 BLE chipset

Sold By NCLabs

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More "board" Related Products

8 Port LED Distro

Bong69

$60.00

wESP32

Silicognition LLC

$55.00

FDC1004 Capacitance sensor breakout board

ProtoCentral Electronics

$21.95

POV staff kit

Island Robotics

$119.00

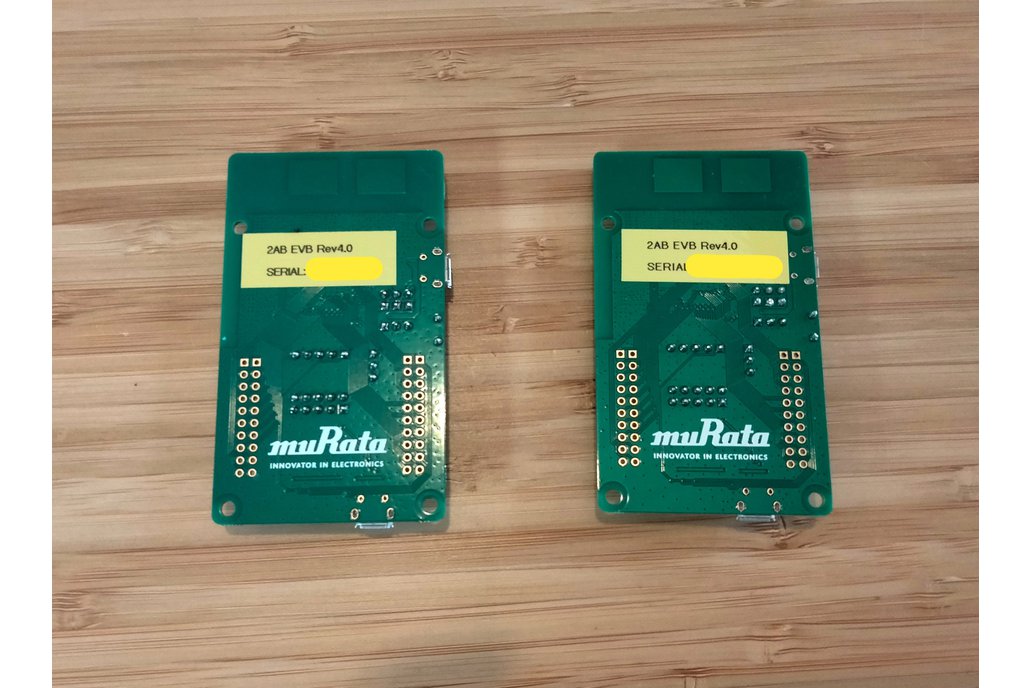

muRata UWB/Bluetooth LE Type2AB Evaluation board 1

muRata UWB/Bluetooth LE Type2AB Evaluation board 2

muRata UWB/Bluetooth LE Type2AB Evaluation board 3

muRata UWB/Bluetooth LE Type2AB Evaluation board 4





Complete ultrawideband test and development kit based on Qorvo's QM33120W-chipset and Nordic's NRF52 BLE chipset

Type2AB module integrated evaluation board. The Murata 2AB-module incorporates a Qorvo QM33120W ultra-wideband transceiver, Nordic Semiconductor NRF52840 radio module and 3-axis accelerometer. The board is equipped with one BLE antenna and two UWB antennas. Has Micro USB connectors for MCU interface.

Supported UWB Channels : Band 5 & 9 UWB Chip set : Qorvo DW3110/3120 FCC/IC/TELEC Reference Certified Hostless module Integrated Nordic IC / nRF52840 which also have Blutooth Low Energy function for waking up UWB and updating FW. Integrated 3-Axis sensor for saving battery Reference clock for UWB and MCU are embedded Smallest/highly integrated UWB module available in the market 75% less square area than CoB solution Frequency, Tx power and Antenna delay are calibrated for each device Support Multi Antenna design and evaluation

The 2AB development kit supports a number of location positioning technologies: pdoa (phase difference of arrival), twr (two-way ranging), ...

Technical documents / demo SDK are available on the myMurata web site. Recommended development environment: Segger Embedded Studio.

Demo software has been tested on the devkits, but they have not been used for project development.
