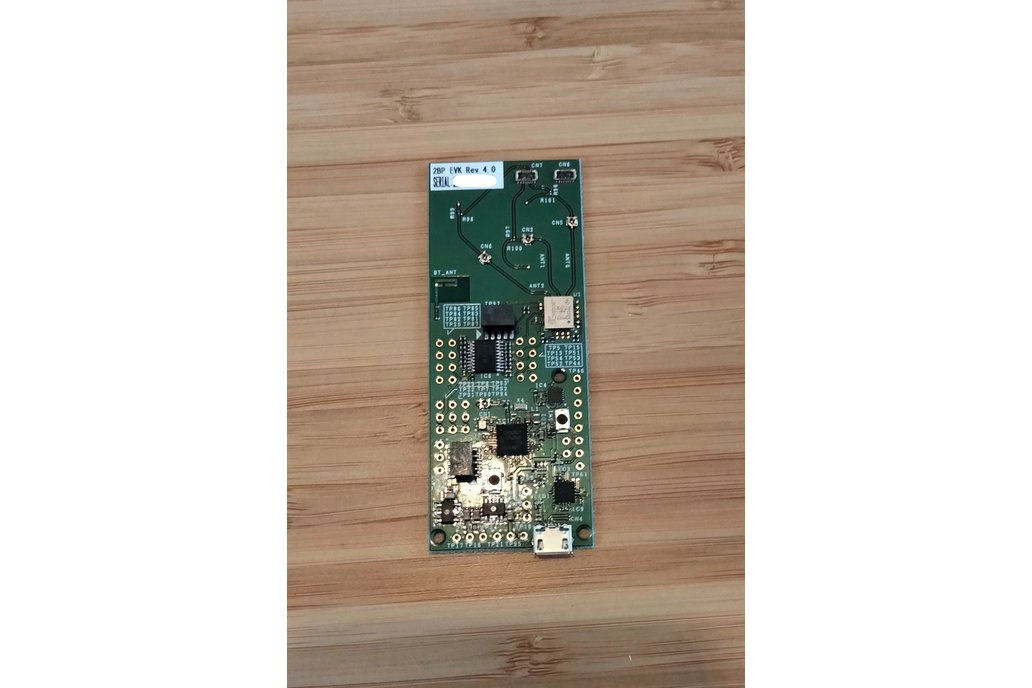

Murata UWB module Type2BP evaluation board. The 2BP module includes a NXP SR150 UWB transceiver and NXP QN9090 Bluetooth Low Energy 5.0 radio MCU.

UWB chipset : NXP Trimension SR150 UWB Channel support: 5 and 9 Interface : SPI 3 Antenna support (3D AoA or 2D AoA support)

BLE chipset: NXP QN9090 MCU: Arm®Cortex®-M4 CPU Onboard flash: 640KB SRAM: 152 KB SRAM Peripherals: multiple serial communication interfaces, NFC NTAG

Power supplied via USB cable, and from COM port of PC, Type-2BP can be controlled through QN9090. This development kit is approved by Apple® for the purpose of evaluating UWB-enabled accessories that leverage Apple's Nearby Interaction framework in order to interact with Apple products that include the U1 chip.

NXP's MCUXpresso IDE is recommended to program this evaluation kit. SDK and hardware design files can be found on the MyMurata website.

Functionality of the development board has been tested and verified using the SDK examples. Devkits have not been used for project development, so they are as good as new!
