Nautilis iTAP – Smart Wireless Pressure & Temperature Monitoring Nautilis iTAP is a specialized device designed for monitoring pressure and temperature, tailored for home brewers and craft beer enthusiasts. It collects data from a pressure sensor, displays it on the built-in screen, and wirelessly transmits it to various applications via a WiFi network. Users can monitor readings in real-time on computers and mobile devices and receive notifications in case of alarm values.

Supported Applications: ✔ BrewSpy, SensorSpy – Data sent every 5 minutes ✔ Brewfather – Data sent every 15 minutes ✔ MQTT, Home Assistant – Fast updates every 10 seconds ✔ Blynk IoT, Blynk Legacy, HTTP – Flexible integration

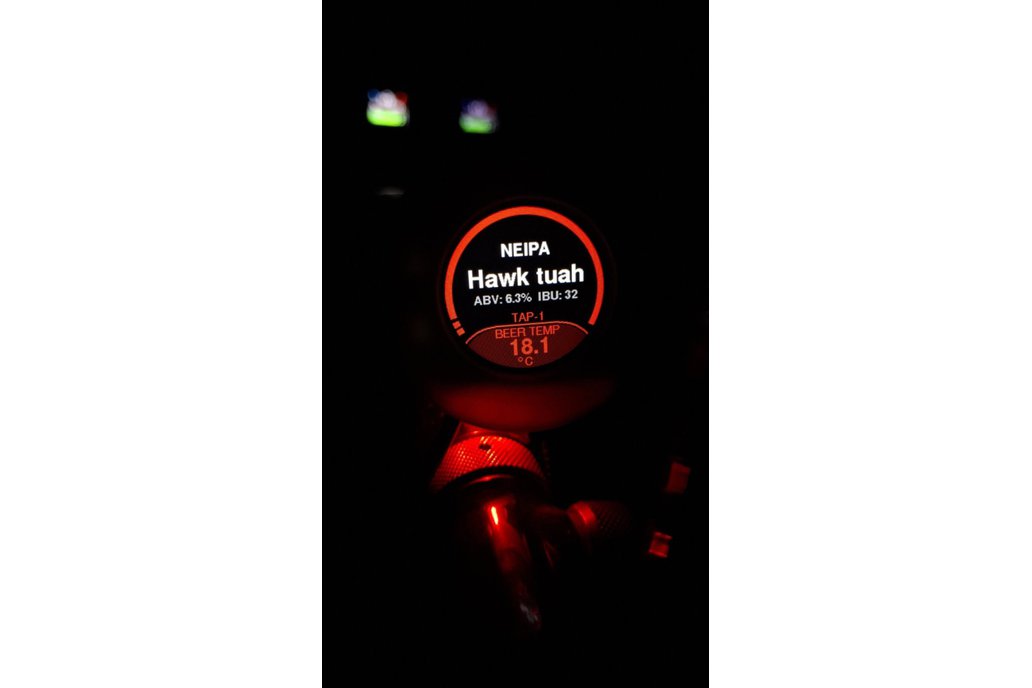

Smart Notifications: In case of alarm values, applications allow notifications on mobile devices. The Blynk application includes pre-configured alarm settings for pressure and temperature, which can be adjusted directly from the device interface. Precision & Flexibility The device supports pressure units in Bar or PSI, and temperature units in °C or °F. The pressure sensor is ordered separately, and the recommended model has an output of 0.5-4.5V with a range of up to 100 PSI. The sensor connection is simple, and the cable length can be extended as needed. Supports connection of one temperature sensor for monitoring. Built-in Display & Red LED Backlight Nautilis iTAP features a red LED backlight, which can be turned off in the settings. The display provides clear and detailed real-time information, including:

Temperature reading from the connected sensor WiFi signal strength Device name Current pressure displayed in Bar or PSI Beer style (max 10 characters) Beer name (max 10 characters) ABV (Alcohol by Volume) in percentage IBU (International Bitterness Units) Technical Specifications Power Supply: 5V via USB-C (charger not included) WiFi: 2.4 GHz network (does not support 5 GHz) Display: Built-in screen for real-time readings with adjustable red LED backlight Nautilis iTAP is the ideal solution for home brewers who need accurate and reliable real-time monitoring of pressure and temperature, while also displaying essential beer information directly on the device.

WHAT IS NOT INCLUDED IN ALL OPTIONS: – 5V USB C or micro USB mobile phone charger for powering device - Pressure sensor
