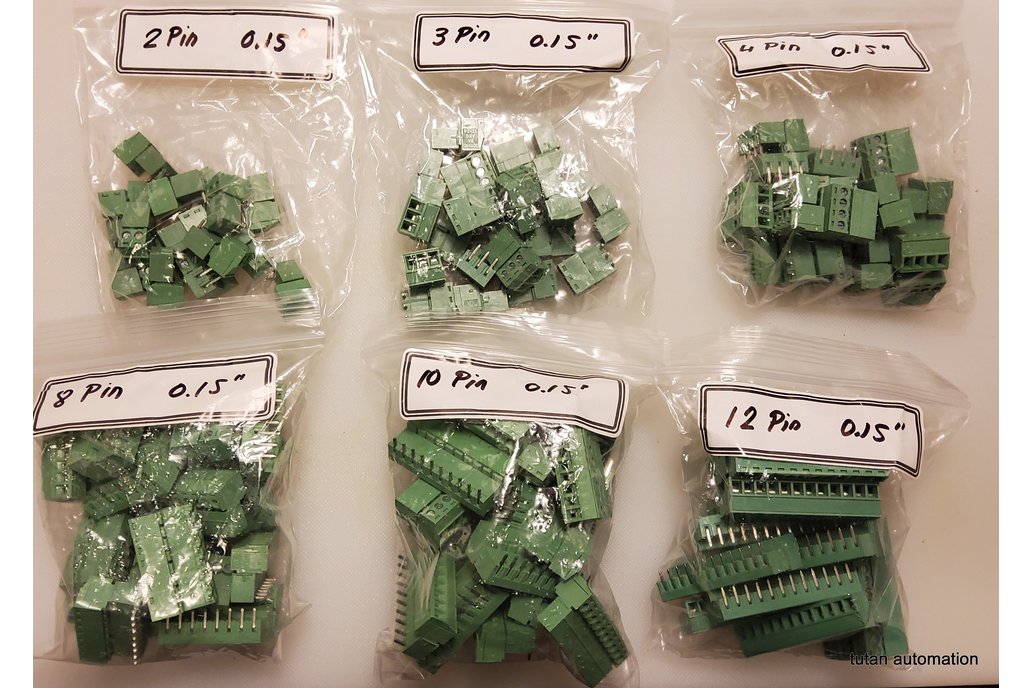

This lot contains 115 terminal blocks remnants of a small manufacturing project. All connectors are type KF2EDG with 0.15" (3.81mm) pitch with various pin count as follows:

• 17 pcs of 2 pin
• 21 pcs of 3 pin
• 20 pcs of 4 pin
• 20 pcs of 8 pin
• 18 pcs of 10 pin
• 19 pcs of 12 pin

Specifications

• Pitch: 3.81mm
• Rated Voltage: 300V
• Rated Current: 8A
• Withstand Voltage: AC2000V / 1 Min
• Wire Fit Range: 28 AWG TO 16 AWG
• Screw: M2,Steel,Zinc-plated
• Pin Material: Brass,Tin-plated
• Contact Material(Socket): Phosphor bronze,Ni-plated
• Plastic Housing: PA66,UL94V-0
• Operating Temperature: -40°C ~ +105°C
• Instantaneous Temperature: 250°C/5sec
• Max. Torque: 0.2Nm(1.8lb.in)
• Strip Wire Length: 7mm

Sold in bulk to keep shipping cost reasonable.
