Description:

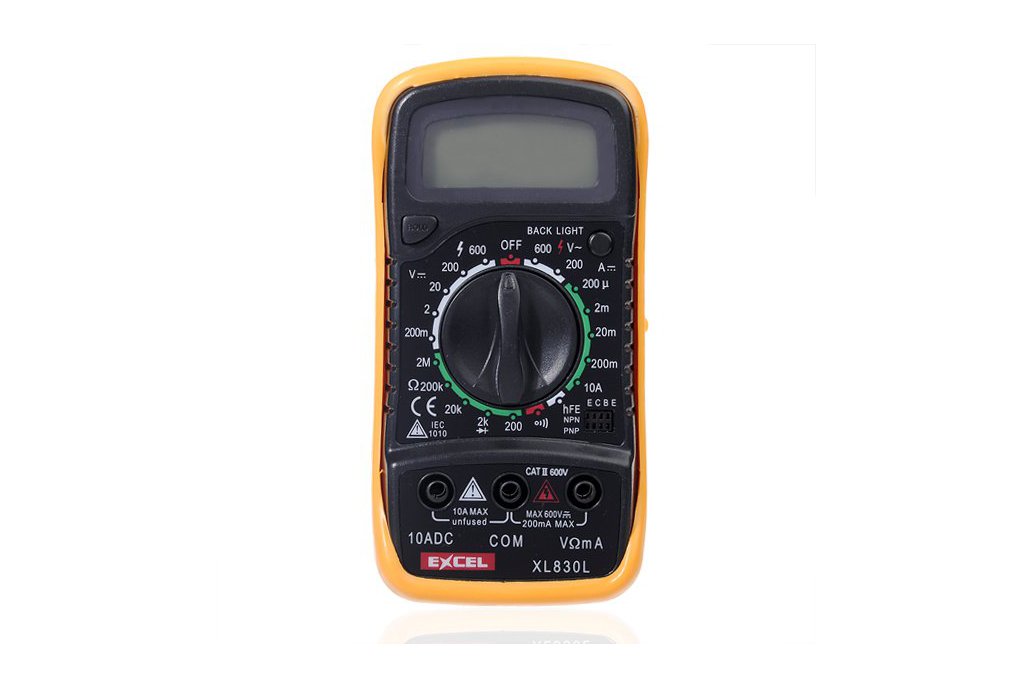

This is a XL830L handheld digital multimeter for measuring DC and AC voltage, DC current, Resistance, Diode and Transistor, with battery operated. It is so easy and efficient, so practical for electrician use.

Easy to operate and the readings indicated directly on the screen. It can be use to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.

Features:

• Model: XL830L
• 15mm high LCD Display
• Max display: 1999, Auto polarity display
• Portable and compact design;overload protection on all ranges
• Diode assembly test / Transistor P-N junction test/Transistor HFE test
• Continuity test with buzzer sound in circuit
• Low battery voltage indication
• Data hold function
• DC Voltage: 200mV/2V/20V/200V +- 0.5%, 600V +- 0.8%
• AC Voltage: 200V/600V +- 1.2%
• DC Current: 200A, 2mA, 20mA +- 1%, 200mA +- 1.5%, 10A +- 3%
• Resistance: 200Ohms,2KOhms, 20KOhms, 200KOhms, 2MOhms +- 0.8%
• Display: LCD, 1999 counts
• Fuse protection: F-200mA/250V
• Operating Temperature: -0C to 40C
• Overrange Indication: Only figure "1" on the display
• Polarity Indication: "-" displayed for negative polarity
• Low Battery Indication: - /+ display
• Power by One 9V battery (installed)

Specifications :

• Maximum voltage between terminals and earth ground
• CAT II600V
• Fuse protection: F 200mA/250V
• Power: 9V battery, NEDA1640 or 6F22
• Display: LCD, 1999 counts, updates 2-3/sec
• Measuring method: Dual-slope integration A/D converter
• Overrange Indication: Only figure “1” on the display
• Polarity indication: “-“ displayed for negative polarity
• Operating Environment: 0 to 40 Celsius
• Storage temperature: -10 to 50 Celsius
• Low battery indication: “- +” appears on the display
• Size: 138mmX 69mm X 31mm
• Weight: Approx. 240g

Notes:

Please do not change the inner circuit to avoid damaging the ammeter. Do not connect it to the voltage over 1000VDC or 750VAC. Make sure not connect the error measure range. Please do not use the ammeter if the back cover is wrong. Please remove the pen and cut off the power before replacing battery and fuze.

Package includes:

• 1 x XL830L Digital LCD Multimeter
• 1 x Test Leads line(red&black)
• 1 x 9V Battery Included
• 1 x User Manual
