Analog Devices ADALM2000 oscilloscope - USED

Name: Analog Devices ADALM2000 oscilloscope - USED
SKU: 29237
Price: 169.99 USD
Availability: InStock

100MS/s USB Oscilloscope, Logic Analyzer, Data Logger, Network Analyzer, Impedance Analyzer, and more.

Sold By MMehta

Analog Devices ADALM2000 oscilloscope - USED 1

Analog Devices ADALM2000 oscilloscope - USED 2

Analog Devices ADALM2000 oscilloscope - USED 3

Analog Devices ADALM2000 oscilloscope - USED 4

Analog Devices ADALM2000 oscilloscope - USED 5

Analog Devices ADALM2000 oscilloscope - USED 6

Analog Devices ADALM2000 oscilloscope - USED 7

Analog Devices ADALM2000 oscilloscope - USED 8

Analog Devices ADALM2000 oscilloscope - USED 9

Analog Devices ADALM2000 oscilloscope - USED 10

Analog Devices ADALM2000 oscilloscope - USED 11

Analog Devices ADALM2000 oscilloscope - USED 12

Analog Devices ADALM2000 oscilloscope - USED 13

Analog Devices ADALM2000 oscilloscope - USED 14















Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

100MS/s USB Oscilloscope, Logic Analyzer, Data Logger, Network Analyzer, Impedance Analyzer, and more.

For sale here is a used, 'Analog Devices ADALM2000 Active Learning Module Analog Learning Tool', in working condition. Apart from being a 100MS/s USB Oscilloscope, it has many other functions - Logic…

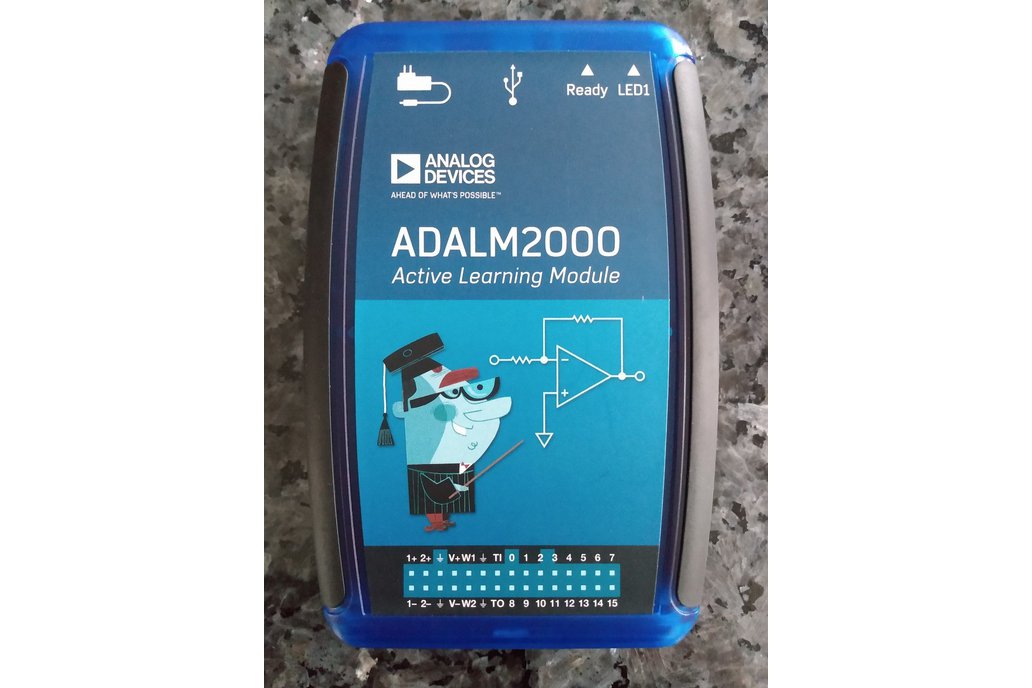

For sale here is a used, 'Analog Devices ADALM2000 Active Learning Module Analog Learning Tool', in working condition.

Apart from being a 100MS/s USB Oscilloscope, it has many other functions - Logic Analyzer, Data Logger, Network Analyzer, Impedance Analyzer, and more. Please see the product website at the following link for more information - https://www.analog.com/en/design-center/evaluation-hardware-and-software/evaluation-boards-kits/adalm2000.html#eb-overview .

Inside the box:

ADALM2000
One 2x10 signal cable assembly
One 2x5 signal cable assembly
Micro USB cable

The cardboard box was creased at some places on the top, bottom and rear sides. Thick paper was pasted on the inside to give strength at those areas (Box feels quite strong to me, after that). See last three pictures.

For upto about 4-5MHz the included 'wire probes' may be sufficient. For better signal integrity, you may use a BNC adapter to connect BNC probes. You may buy a BNC adapter like the one at https://digilent.com/shop/bnc-adapter-for-analog-discovery/ . You can also make one yourself and here are two websites for ideas - https://www.eevblog.com/forum/testgear/juntek-dpa-2698-10mhz-signal-amplifier-digilent-analog-discovery/msg3067172/ and https://atadiat.com/en/the-multi-function-instrument-analog-discovery-2-review/

The pictures in the gallery are those of the item you will receive. I have also uploaded a picture of, 1.) the signal generator of the instrument giving out 5MHz, 2.) the oscilloscope screen displaying that and, 3.) the way I made the connection between the waveform 2 output and channel 1 oscilloscope.

Mailing will be done only to US, Swedish, Singapore, United Arab Emirates and Australian addresses only. Shipping for a US address is free for USPS 'Ground Advantage' service and $8.35 extra for USPS Priority Mail. For SWE, SGP, UAE and AUS, US$13 extra will be charged.

Thank you.
