ULTRA color, a Arduino compatible FULL COLOR OLED

Name: ULTRA color, a Arduino compatible FULL COLOR OLED
SKU: 8129
Price: 35.00 USD
Availability: Discontinued
Rating: 5.00 (1 reviews)

(1 Review)

A 96x64 pixel full-color OLED display embedded mini MCU board. ULTRA color has micro-SD card slot and USB interface as well!

Designed by microwavemont in Japan

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More "Hackaday" Related Products

Sale

FlippenHeimer -Geiger Counter for the Flipper Zero

Erwin Ried

$22.49 $44.99

Louder ESP32

Sonocotta

$24.00

USB-C for PS4 controller

Marius Heier

$10.00

duckyPad: Do-It-All Mechanical Macropad

dekuNukem

$64.99

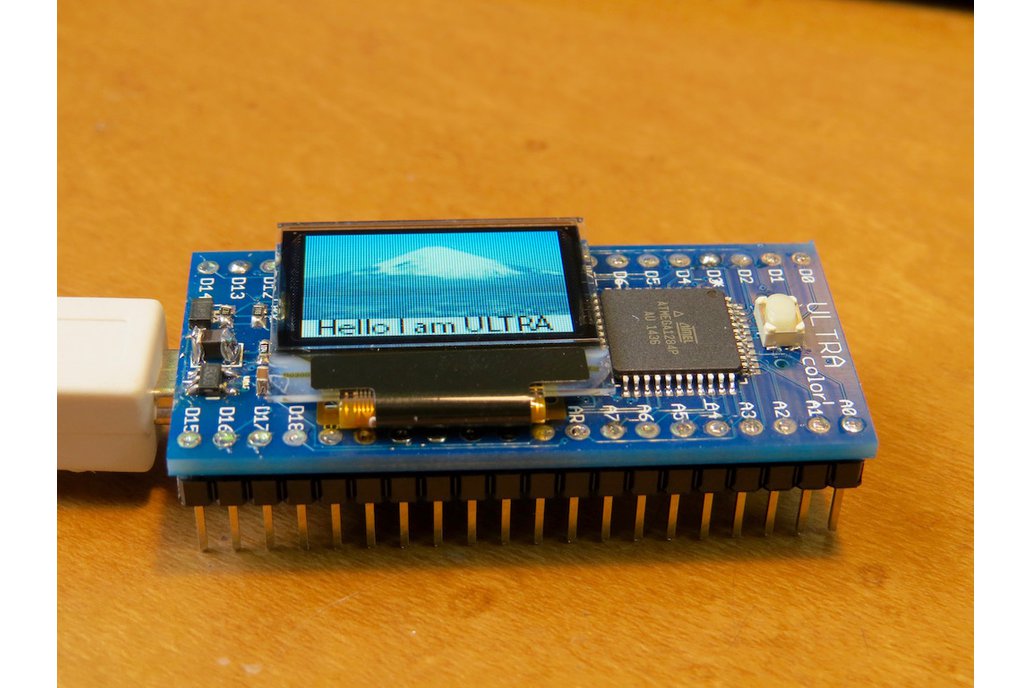

ULTRA color, a Arduino compatible FULL COLOR OLED 1

ULTRA color, a Arduino compatible FULL COLOR OLED 2

ULTRA color, a Arduino compatible FULL COLOR OLED 3

ULTRA color, a Arduino compatible FULL COLOR OLED 4


On Dec. 15, 2025, my tindie store "micowavemont" trying restarting! Stay tuned!

A 96x64 pixel full-color OLED display embedded mini MCU board. ULTRA color has micro-SD card slot and USB interface as well!

What is it? I've made several "Arduino Mini" form factor board, which all have OLED display but monochrome and very tiny. Just showing digit, they are enough but showing image and colourful interface…

What is it?

I've made several "Arduino Mini" form factor board, which all have OLED display but monochrome and very tiny. Just showing digit, they are enough but showing image and colourful interface, tiny monochrome is not enough. This time I made a 96x64 pixel full-color OLED display embedded mini MCU board. This board, ULTRA color has micro-SD card slot and USB interface through FTDI chip. I think, everything is in one!

Why did you make it?

Basically I prefer OLED, not LCD because we can omit backlight circuit for OLED and also OLED has very wide view angle. However, full color OLED panel requires external high voltage (12 V) source and compared to very handy monochrome chip (SSD1306, where just putting capacitors are enough for voltage converter), Color OLED has more possibility not just showing digit and character also image showing, processed-image display and also, simply colourful is quite fun! This time I designed the circuit all in one board!

What makes it special?

Full color OLED + micro SD card + embedded USB interface by FTDI chip. Main MCU is ATmega1284P, which has rich 16kB SRAM and 128kB flash.

Additional information can be found in my hackaday.com project page.

For Arduino IDE programmig, adding board support process is needed. Detailed can be found in the relevant project at hackaday. Please refer it before programming.

Review Breakdown

Average Ratings

Product: (5.00)

Documentation: (5.00)

Shipping: (5.00)

Communication: (5.00)

Pete | Oct. 24, 2016

Another fun and useful Arduino concept from Microwavemont

Uses an Arduino ATmega1284P with an onboard full color OLED, micro SD card reader, with integrated FTDI USB interface and all on a small form factor board. This board is easy to program and the seller provides access to a library and example source code to get the user started. His documentation includes a schematics which are always helpful. One of the best things about this seller is he is easy to contact and quick to respond with helpful information. He stands behind his customers as he proved by quickly sending me a replacement for a failed board. His projects are neat, well conceived, fun and priced very affordably!

Response from microwavemont | Oct. 24, 2016

I am very glad to see your review. Indeed I am not running commercial company but just want to spread the joy of making something all over the world. I am very happy if I can be some help of your making something interesting! Thank you so much!!
