ULTRA, a successor of SDuino

Name: ULTRA, a successor of SDuino
SKU: 7864
Price: 32.00 USD
Availability: Discontinued
Rating: 3.50 (2 reviews)

(2 Reviews)

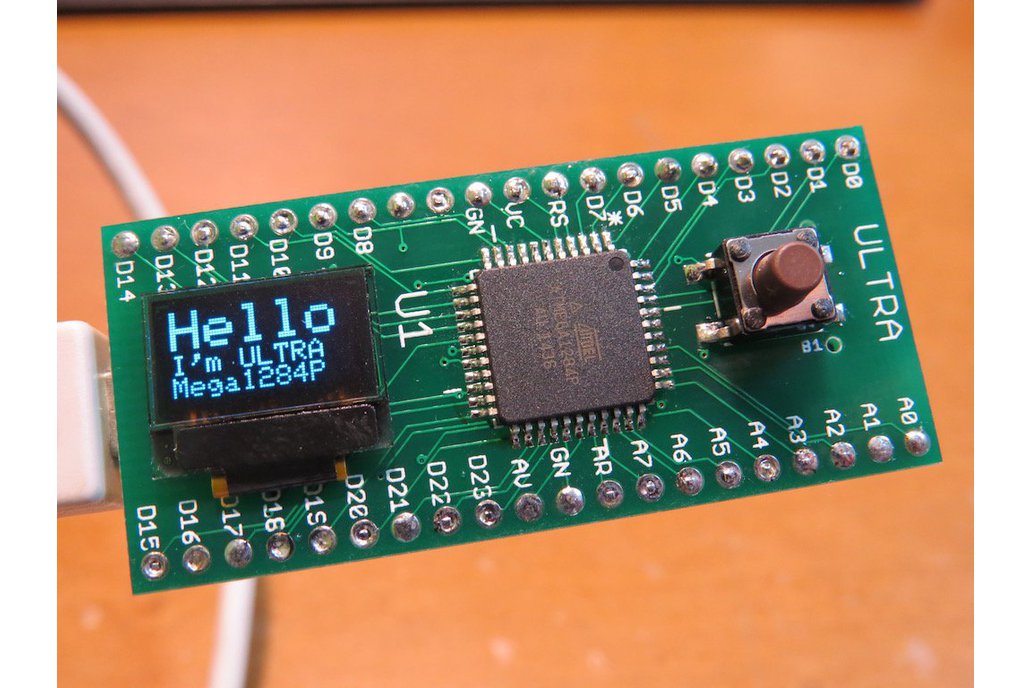

I would like to introduce "ULTRA". It is based on ATMega1284P, OLED display on-board, micro SD card socket on-board, FTDI-onboard!

Designed by microwavemont in Japan

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More "Hackaday" Related Products

Louder ESP32

Sonocotta

$24.00

USB-C for PS4 controller

Marius Heier

$10.00

FlippenHeimer -Geiger Counter for the Flipper Zero

Erwin Ried

$44.99

PDP-8 replica kit: the PiDP-8

Obsolescence Guaranteed

$210.00



On Dec. 15, 2025, my tindie store "micowavemont" trying restarting! Stay tuned!

I would like to introduce "ULTRA". It is based on ATMega1284P, OLED display on-board, micro SD card socket on-board, FTDI-onboard!

What is it? For Arduino IDE programmig, adding board support process is needed. Detailed can be found in the relevant project at hackaday. Please refer it before programming. **One thing to be added…

What is it?

For Arduino IDE programmig, adding board support process is needed. Detailed can be found in the relevant project at hackaday. Please refer it before programming.

**One thing to be added regarding clock speed and power supply voltage:

(Case: USB cable connected) ATMega1284P in ULTRA is working at 3.3 V/16 MHz by FTDI embedded 3.3V voltage regulator

(Case: USB de-touched) We should apply 3.3V between VC/GN terminal on ULTRA

Anyway, ULTRA is 3.3V system!**

Why did you make it?

I made a SDcard sized Arduino "SDuino" before. But SD card form can not fully activate the potential of MCU, and this time I made a "successor" of SDuino. I would like to introduce "ULTRA". It is based on ATMega1284P, OLED display on-board, micro SD card socket on-board, FTDI-USB interface on-board. Everything you will need for prototyping is prepared on-board for you!

What makes it special?

In the almost same size as Arduino Pro? Mini? (small sized Arduino), this board has full function as shown in the above explanation!

More details can be found in my hackaday.com project page. Please also refer it!

Review Breakdown

Average Ratings

Product: (3.50)

Documentation: (3.00)

Shipping: (4.50)

Communication: (3.00)

Kamaldeep | Jan. 31, 2017

Another Japanese Masterpiece

I am using it with a stepper motor controller. Very easy to use, well documented, unique and Made in Japan.

Response from microwavemont | Feb. 3, 2017

Really happy to see your great application!! Thank you!!

David | Nov. 11, 2016

No documentation

I was hoping for an Arduino that I could program to use its display.
No documentation. I tried various Arduino configurations with no luck. Tried to reach vendor. No luck yet.

Response from microwavemont | Nov. 11, 2016

Hello and thank you for precise comment.
I've confirmed your question at relevant hackaday project and answered it there. I would like to repeat the answer as, for Ultima programming at Arduino IDE, we need Atmega1284P support by "board manager" on IDE. Exact procedure to add Atmega1284P is described at https://hackaday.io/project/13088-minimal-and-self-contained-atmega1284p-mod-chip .
