Simple Serial Console Kit

Name: Simple Serial Console Kit
SKU: 16736
Price: 14.00 USD
Availability: Discontinued

Simple serial console kit supporting PS/2 key-input and NTSC video out.

Designed by microwavemont in Japan

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More "Hackaday" Related Products

Sale

FlippenHeimer -Geiger Counter for the Flipper Zero

Erwin Ried

$22.49 $44.99

Louder ESP32

Sonocotta

$24.00

USB-C for PS4 controller

Marius Heier

$10.00

USB4VC: USB Inputs on Retro Computers!

dekuNukem

$29.99


On Dec. 15, 2025, my tindie store "micowavemont" trying restarting! Stay tuned!

Simple serial console kit supporting PS/2 key-input and NTSC video out.

What is it? Simple serial console based on LPC810, which supports PS/2 keyboard input and NTSC video out. Why did you make it? I've made this serial console embedded Z80 board, but indeed an independ…

What is it?

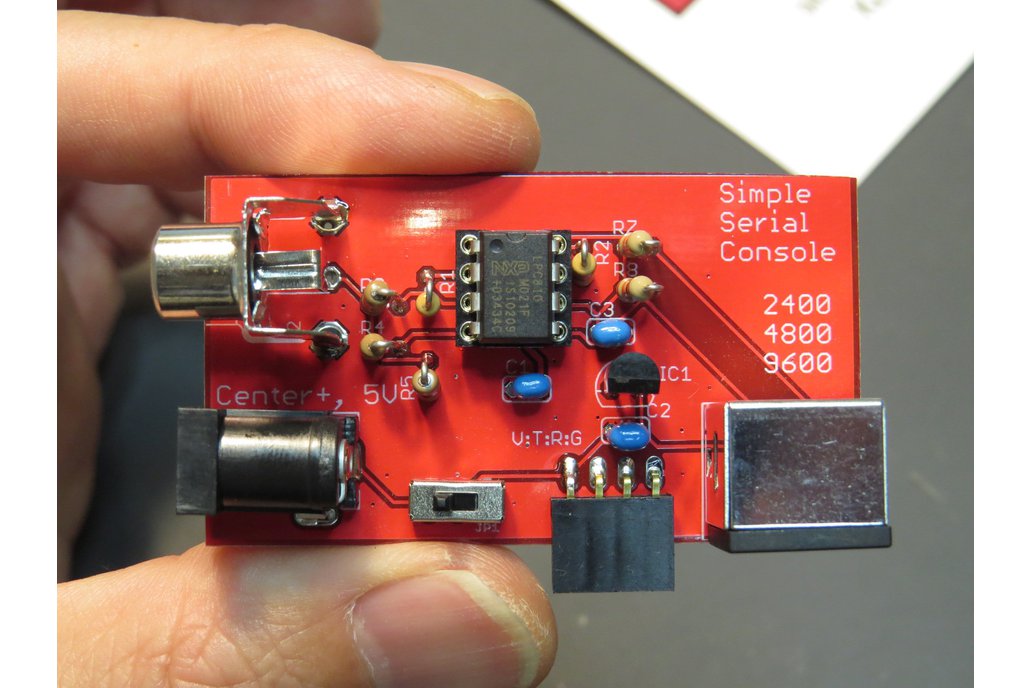

Simple serial console based on LPC810, which supports PS/2 keyboard input and NTSC video out.

Why did you make it?

I've made this serial console embedded Z80 board, but indeed an independent serial console will be more useful for various "serial monitor" application including GPS module, network device monitor, and even ancient computer (like Sun-3 ?). Indeed this implementation has a "original version" of which the author permits "commercial application" but it is written in Japanese, (meaning only Japanese will see and find it..) so I've made a very handy full parts kit of the simple serial console!

What makes it special?

Very simple monochrome serial console. Baudrate is selectable from 2400, 4800, 9600, 19200 bps. Data format is 8N1.
Keyboard layout is 101US, and video out is NTSC (no SECAM/PAL supported).
All you will need to work this board is, 5V center plus power supply and PS/2 keyboard, and video monitor supporting NTSC.
