Lattice FPGA prototyping board

Name: Lattice FPGA prototyping board
SKU: 13727
Price: 16.00 USD
Availability: Discontinued

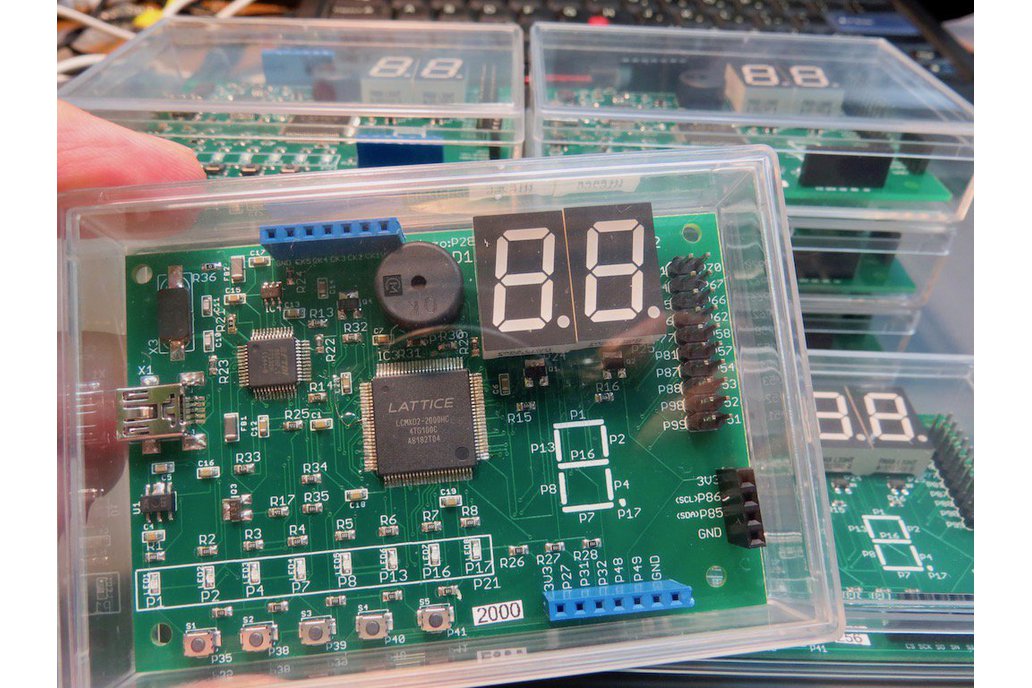

Lattice MachXO2 FPGA prototyping board with onboard programmer (FTDI FT232HL) and several peripheral. It's ready to jump start FPGA

Designed by microwavemont in Japan

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More "Hackaday" Related Products

Sale

FlippenHeimer -Geiger Counter for the Flipper Zero

Erwin Ried

$22.49 $44.99

Louder ESP32

Sonocotta

$24.00

USB-C for PS4 controller

Marius Heier

$10.00

USB4VC: USB Inputs on Retro Computers!

dekuNukem

$29.99

On Dec. 15, 2025, my tindie store "micowavemont" trying restarting! Stay tuned!

Lattice MachXO2 FPGA prototyping board with onboard programmer (FTDI FT232HL) and several peripheral. It's ready to jump start FPGA

What is it? FPGA prototyping board by Lattice Semiconductor FPGA(MachX02). 256LUT for basic application and 2000LUT version for more complex application Why did you make it? Lattice MachXO2 has Embed…

What is it?

FPGA prototyping board by Lattice Semiconductor FPGA(MachX02). 256LUT for basic application and 2000LUT version for more complex application

Why did you make it?

Lattice MachXO2 has Embedded Function Block (EFB), which enables easy I2C device prototyping using FPGA. I did want to try this function and tried in relevant hackaday project. We can find Lattice's breakout board in market but sometimes they are too complex or expensive, or requires extra device for tackling for the first time on FPGA. Therefore I made a simple board. This is a revised version of my previous product.

What makes it special?

Five tactile sw, 7 LEDs, two digit 7-seg LEDs and piezo sounder on board.
On-board programmer. No need extra JTAG. Just connect USB cable is enough to enjoy this board.
Full Lattice Diamond compatible.
By the sake of EFB, we can make our original I2C device (and SPI) as we wish.
By the sake of free programming environment (Lattice Diamond), no need of extra expense.
Lattice have provided lots of reference design not limited to I2C and we can try quickly.
The board with clear (transparent) plastic case (no hole processing), very handy for portable application.
Sample verilog code is available at my GitHub account, and also programing procedure is explained in my hackaday project.
