What is it?

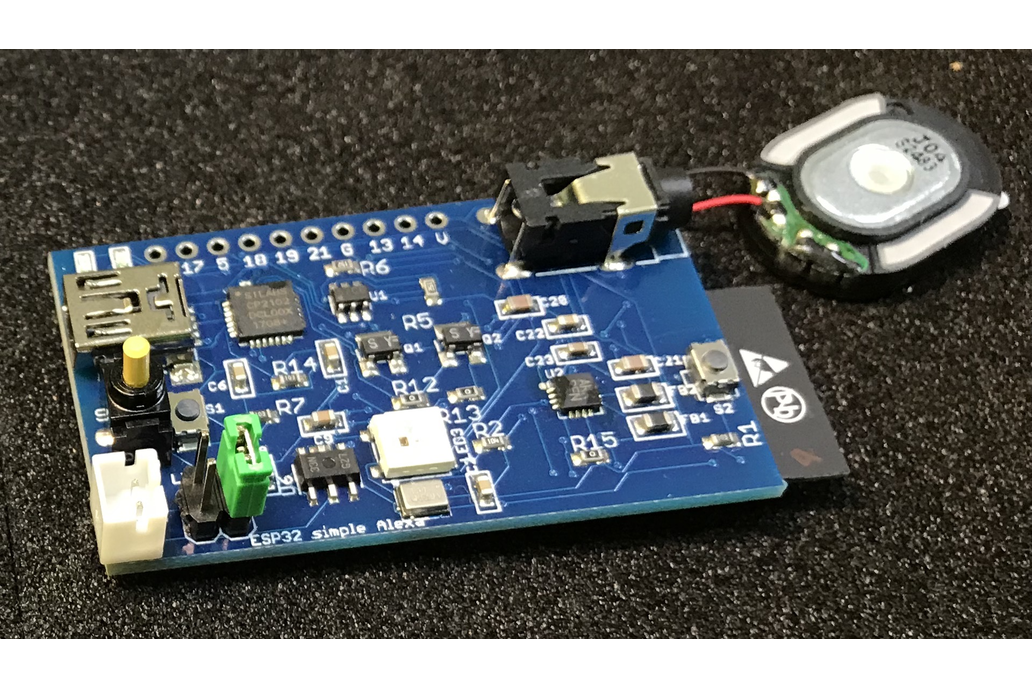

Simple Alexa developing board consisting of ESP-WROOM-32, I2S DAC MAX98357A, and I2S MEMS microphone ICS43434

Why did you make it?

My previous item, Tiny Alexa by ESP32-PICO-D was surely working in very small size but the fabrication process was a bit complicated. This time, a more simplified board using ESP-WROOM-32 module is fabricated. This usage leads to a lower price than the previous one with the same function, Alexa experiment.

What makes it special?

• Small size (50 x 30 mm), which is suitable for an embedded application.

• ESP-WROOM-32, all-in-one Module is on-board.

• Single channel, Class-D amplifier embedded DAC, MAX98357 is connected to ESP32 through I2S bus.

• MEMS microphone Invensense ICS-43434 is connected to ESP32 through I2S bus.

• On-board USB-UART interface (CP2102) with several glue logic for direct binary uploading.

• NeoPixel WS2812 is on-board for Alexa status indicator (during listening to your voice, RED blinking, during answering BLUE blinking). This function and everything was implemented by MrBuddyCasino.

• MAC address of each board is checked and indicated on the backside sticker (as the image).

• Full software compatible with MrBuddyCasino's Alexa code and source code to prevent audio feedback can be found below under Specs and Docs.
