ESP32 ADB type_R

Name: ESP32 ADB type_R
SKU: 9775
Price: 32.00 USD
Availability: Discontinued
Rating: 5.00 (1 reviews)

(1 Review)

ESP32 Audio Dev Board with two MEMS I2S microphone!

Designed by microwavemont in Japan

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More "Hackaday" Related Products

Sale

FlippenHeimer -Geiger Counter for the Flipper Zero

Erwin Ried

$22.49 $44.99

Louder ESP32

Sonocotta

$24.00

USB-C for PS4 controller

Marius Heier

$10.00

USB4VC: USB Inputs on Retro Computers!

dekuNukem

$29.99

On Dec. 15, 2025, my tindie store "micowavemont" trying restarting! Stay tuned!

ESP32 Audio Dev Board with two MEMS I2S microphone!

This item is retired and transferred to New version, which is specified for Alexa experiment."ESP32-simple Alexa" Please refer the new one Note for compiling sample webradio/bt speaker code the files…

What is it?

ESP32 audio development board with

On board Lipo charger (enable/disable is possible by jumper)
132x64 SH1106 OLED display
TI PCM5102A high-resolution DAC
Two on-board MEMS I2S microphones Knowles SPH0645LM4H-B
FTDI (FT231XS) for binary uploading

Why did you make it?

MEMS I2S microphone is very recent device and I wanted to use one myself...

What makes it special?

A lot of application can be realized including

voice input application by the unique MEMS I2S microphones
High-quality audio output application (web radio/Bluetooth speaker)
battery driven standalone application with very clear OLED display
(NEW) USB-powered operation, which can be set by on-board jumper pins.

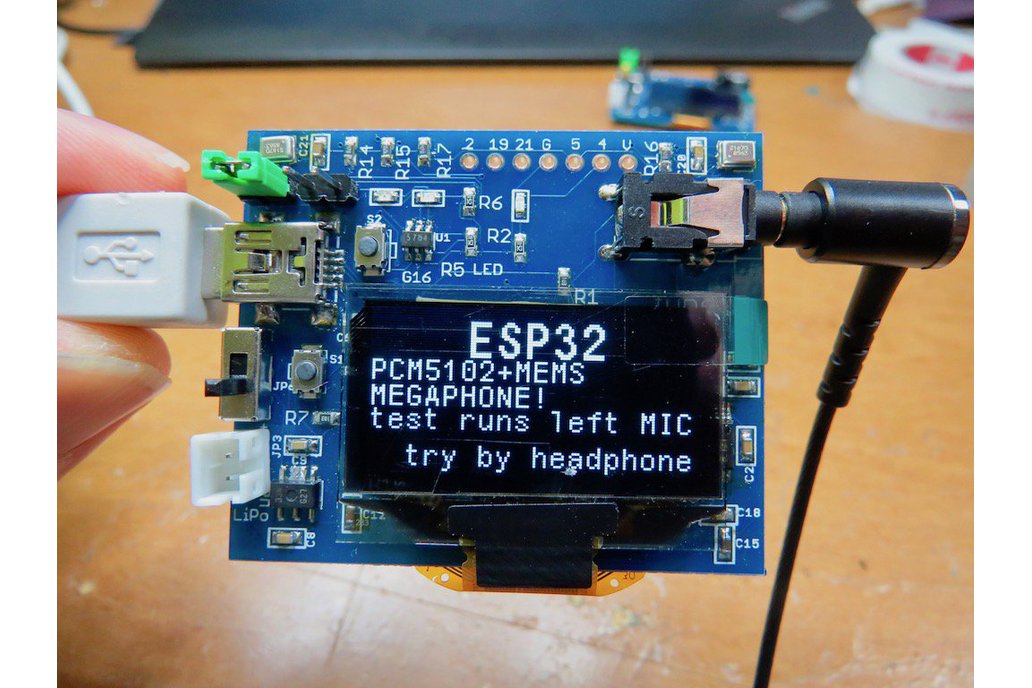

Note for initial release The initial release has just a few units but will be prepared more as per demand... As an initial testing firmware (testing microphone and DAC and ESP32), Megaphone operation(get sound by the microphone and A/D through I2S and converted DAC to the audio out) firmware is uploaded. This Megaphone code is a test code developed by Michael Buckling at ESP32 forum This firmware does not activate right microphone (left-top is surely activated) and needs code modification for 2ch operation. Utilizing this board requires esp-IDF environment, not Arduino IDE. Please prepare esp-IDF on your computer before using this development board.

The movie below is introduced by the initial prototype. The production version does not have a thin-wire jumper, which can be seen in the following movie.
