Composino - CPLD combined Arduino in single board

Name: Composino - CPLD combined Arduino in single board
SKU: 7716
Price: 20.00 USD
Availability: Discontinued

Wonderful Arduino environment is combined with CPLD, leading to infinite possibility!!

Designed by microwavemont in Japan

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More "Arduino" Related Products

Open CO2 Sensor

OpenCO2

$99.90

CUBEEK: Cubesat Educational Kit

Orion Space

$220.00

Acoustic Levitator Kit

Makerfabs

$70.00

CANduino v4 - ATmega328P with CAN-bus

MassiveButDynamic

$24.95

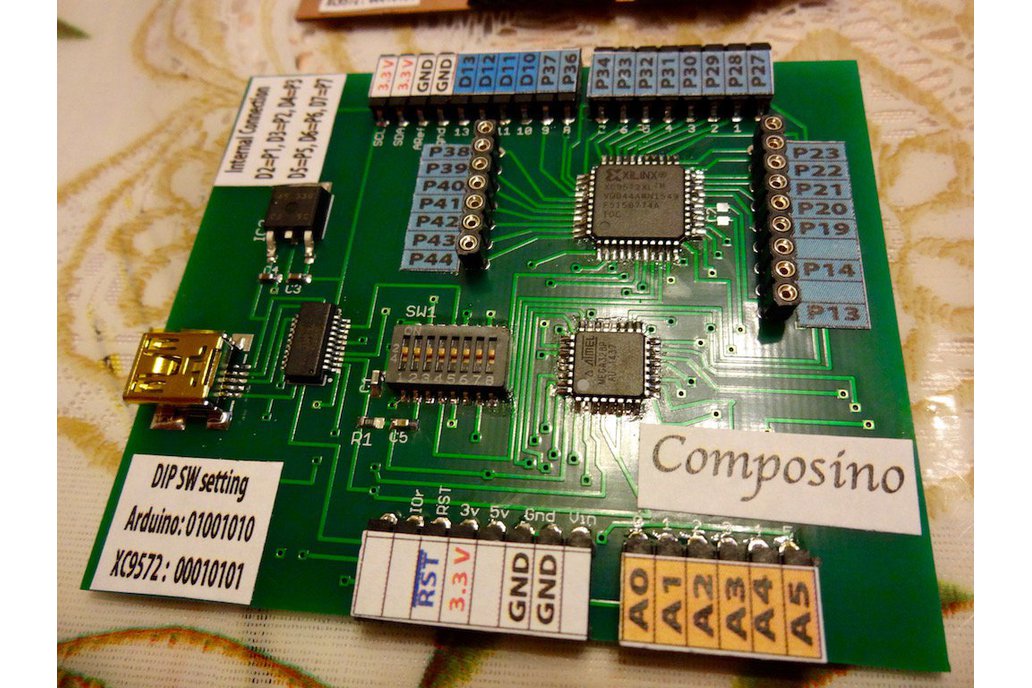

Composino - CPLD combined Arduino in single board 1

Composino - CPLD combined Arduino in single board 2

Composino - CPLD combined Arduino in single board 3


On Dec. 15, 2025, my tindie store "micowavemont" trying restarting! Stay tuned!

Wonderful Arduino environment is combined with CPLD, leading to infinite possibility!!

What is it? Arduino Pro compatible circuit consisting of ATMega328P is combined with CPLD circuit of Xilinx XC9572XL. Both environment can be programmed through USB interface and binary destination i…

What is it?

Arduino Pro compatible circuit consisting of ATMega328P is combined with CPLD circuit of Xilinx XC9572XL. Both environment can be programmed through USB interface and binary destination is selected by DIP-SW on board. This board is full parts kit and requires good soldering skills.

Why did you make it?

Arduino is surely wonderful environment but limited to MCU programming. CPLD (or FPGA) is a software-defined-hardware written by Verilog-HDL or VHDL and these characters are different each other and each of them is not enough multi-purpose. I myself made some project consisting of Arduino and CPLD and those are connected by bunch of wires and got to know, "why not in single board?". Here is an answer to my question.

What makes it special?

For programming ATmega based Arduino or Xilinx XC9572XL, no other hardware is required and this board is all in one. Arduino part can be programmed by Arduino IDE (by selecting Arduino Pro 8MHz/3.3V) as same as general Arduino and Xilinx CPLD part can be programmed by Xilinx ISE. How to program and what the circuit are denoted in related hackaday.com site (Here and there).
