What is it

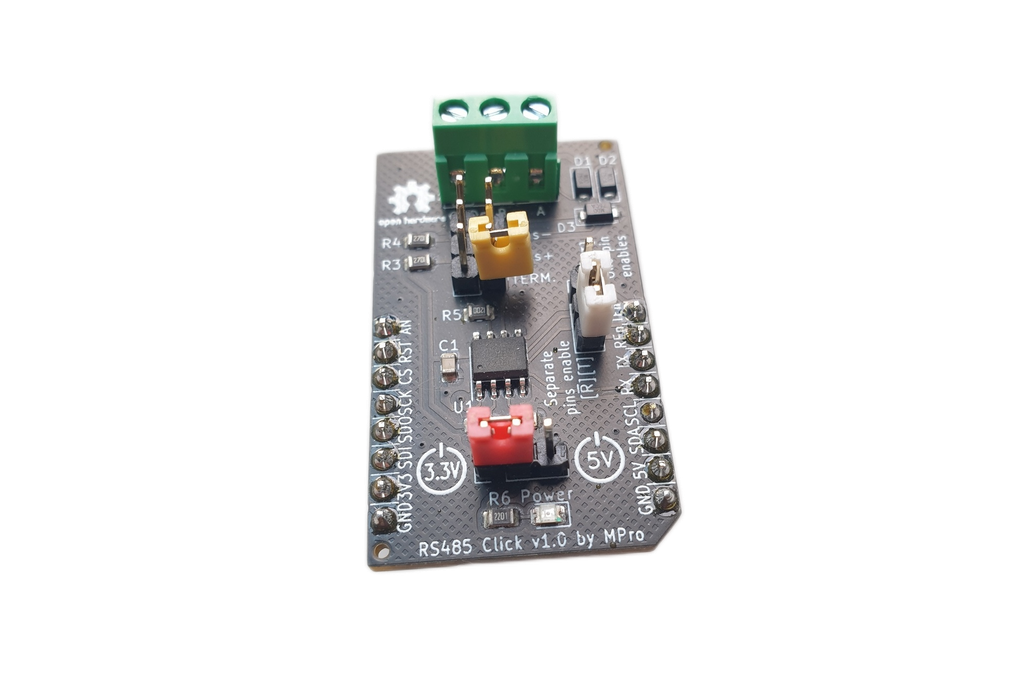

The RS485 Click is a compact add-on board designed for RS485 communication, enabling reliable serial data transmission over long distances. It features the YD3082EESA RS485 transceiver chip and is compatible with the MikroBUS™ click board standard, making it suitable for integration with various microcontroller-based systems.

Motivation

The RS485 Click project was likely developed to address the need for a reliable, efficient, and robust interface between TTL-level UART and the RS485 communication bus, which is widely used in industrial automation and control systems. The project aimed to leverage the RS485 standard’s advantages, such as noise immunity and long-distance data transmission, to facilitate dependable communication in harsh environments like industrial-control networks, building automation, and HVAC systems. By integrating a low-power, slew-rate-limited transceiver, the RS485 Click ensures error-free data transmission at rates up to 250kbps, with features like short-circuit protection and thermal shutdown to enhance reliability. The mikroBUS™ compatibility simplify integration and software development, making it an accessible, ready-to-use solution for developers working on applications requiring stable, long-range communication over twisted pair cables.

What makes it special?

The RS485 Click is distinguished by its seamless integration of a UART to RS485 transceiver, enabling robust, long-distance serial communication with high noise immunity, ideal for challenging industrial environments. Its compatibility with the mikroBUS™ standard ensures easy integration into a wide range of development boards, streamlining prototyping and deployment. The module supports data rates up to 250kbps, offering reliable performance for applications like industrial control, building automation, and HVAC systems. Key features include low-power operation, slew-rate limiting to reduce electromagnetic interference, and built-in protections such as short-circuit and thermal shutdown, ensuring durability and error-free operation.
