Programmable 405nm laser galvo system

Name: Programmable 405nm laser galvo system
SKU: 40314
Price: 400.00 USD
Availability: InStock

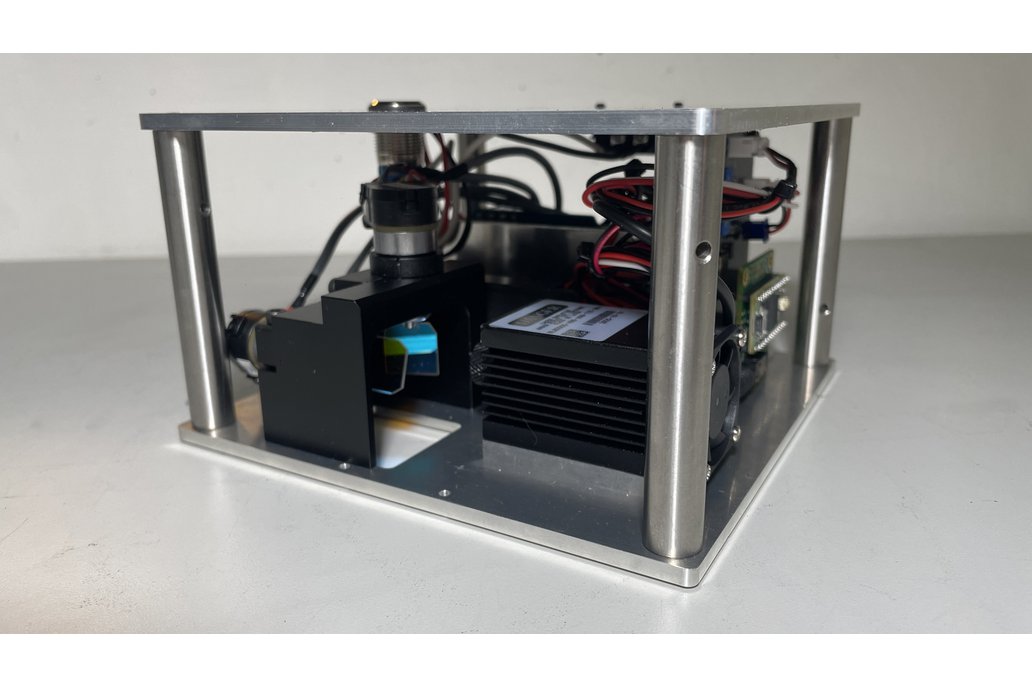

This is a programmable laser galvanometer scanner system.

Designed by weiweiweiwear in Taiwan

Programmable 405nm laser galvo system 10

Programmable 405nm laser galvo system 11

2025-10-20T09:52:58.519Z-IMG_2047-copy copy..jpeg

2025-10-20T09:52:58.519Z-IMG_2076-copy copy 2..jpeg



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

This is a programmable laser galvanometer scanner system.

What is it? It's a programmable Teensy based galvanometer system composed with a 15k galvanometer scanner and a 405nm/600mW laser light source. It is designed for multi-disciplinary applications such…

What is it?

It's a programmable Teensy based galvanometer system composed with a 15k galvanometer scanner and a 405nm/600mW laser light source. It is designed for multi-disciplinary applications such as laser performance, image engraving, photography developing, or even PCB etching since 405nm is a cheap and common option for curing, cutting and lithography. If you have Teensy and audio adaptor shield, you can leave the teensy option blank and purchase only the galvo system.

Why did you make it?

It was made for my early Laser Dye Project, to being free to generate laser graphics to develop cyanotype on garment and audiovisual with direct audio vector data instead of conventional ILDA softwares which is very limited and expansive.

What makes it special?

Compatibility: It can be run in several DAW, Max/MSP, Puredata, TouchDesigner or even Ableton Live but can also be programmed with GPT via Teensy.
Minimal components: It comes with only a pair of galvanometers, 405nm light source and power system with friendly price and size.
Open source: Both hardware and softwares are open on GitHub.
