What is it?

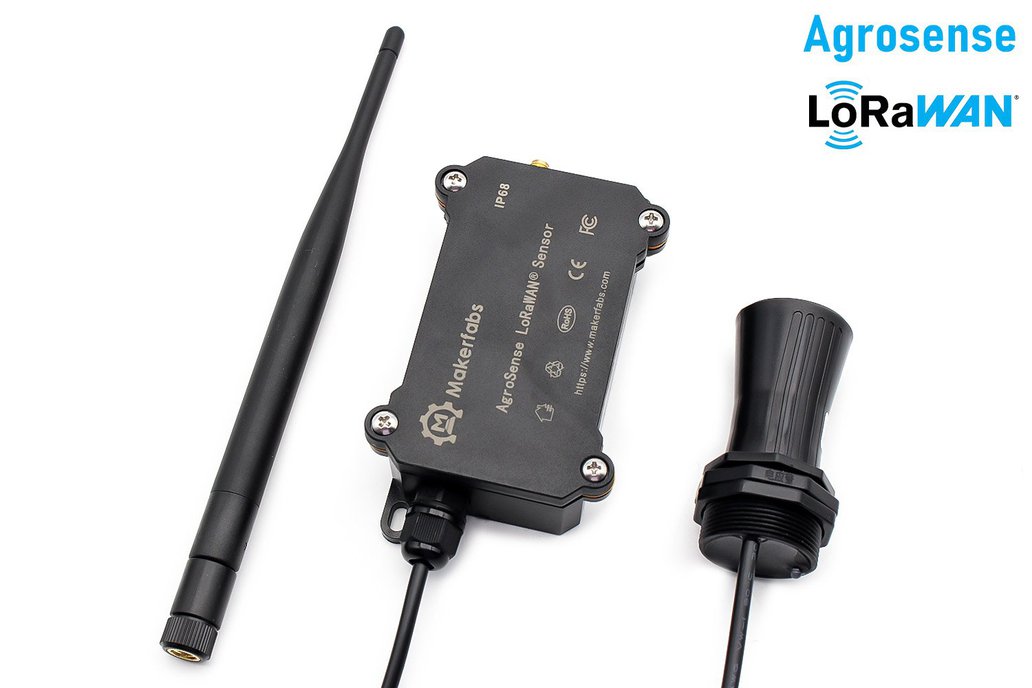

This AgroSense LoRaWAN® Ultrasonic Ranger target distance& level measurement applications/None-contact detection; the device is able to detect a wide arrange of objects include liquids, with measuring precision +/- 1%, arrange from 280 ~ 7500 mm. It reports the measurement data via LoRaWAN® protocol V1.0.3, Class A, every 1 hour by default(with user can free set this) to Cloud service such TTN or DataCake, for LoRaWAN® remote monitoring. Suitable scenarios such as horizontal distance measurement, location measurement, parking management systems, object proximity and storage detection, water level monitoring…

The device is boasted with IP68 for hash environment, unlike wireline devices, it is battery-powered, reducing the workload and complexity of deployment, with battery 18650, it works at least 1 years for each charging.

This product mainly features:

• High Accuracy: With Accuracy ±1% within 280 ~ 7500 mm
• Long Range: At least 2km in urban scenes and 5 km in line of sight scenes.
• Designed to Use in Harsh Environments: -40℃ ~ 128℃ operating temperature and IP68-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
• Simple to Use: Provides LoRaWAN® DEV EUI/ APP EUI/ APP Key, enable user to finish configuration in few steps.
• Support LoRaWAN Downlink, to set Transmit Interval Time (60 minutes by default, Minimum 5 Minutes , 24 hours Max)
• Cost-effective: With Makerfabs’ strong ability on production, we make this product cost-effective to users, the cost of our product is approximately half that of similar products currently available on the market, suitable for mass implement in field applications such as farm/greenhouse, etc.

General Spec:

Wireless Parameters:

Physical Parameters:

AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.

It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.

With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network and DataCake, with simply inputting DEV EUI/ APP EUI/ APP Key:

• DEV EUI: Unique identification of device，authorized by IEEE；
• APP EUI: Unique identification of application；
• APP Key: One of the join network parameters on OTAA mode, calculated by DEVEUI；

Part List

• AgroSense_Ultrasonic Ranger LoRaWAN® *1

Usage

• AgroSense Products Datasheet
• Usage Wiki

For country/ area frequency selecting,please check here: regional Parameter
