What is it?

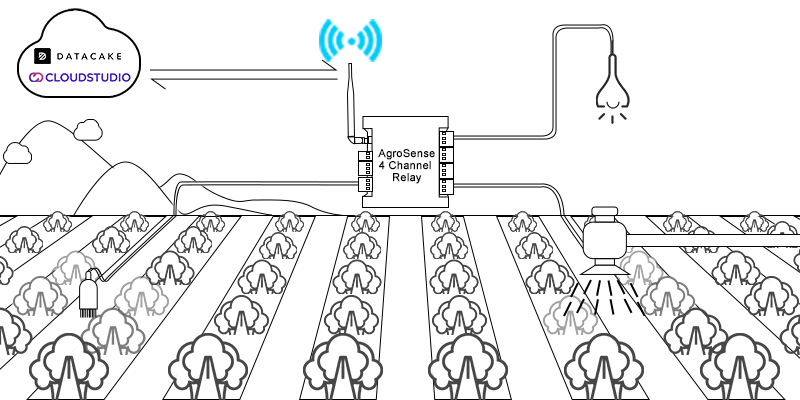

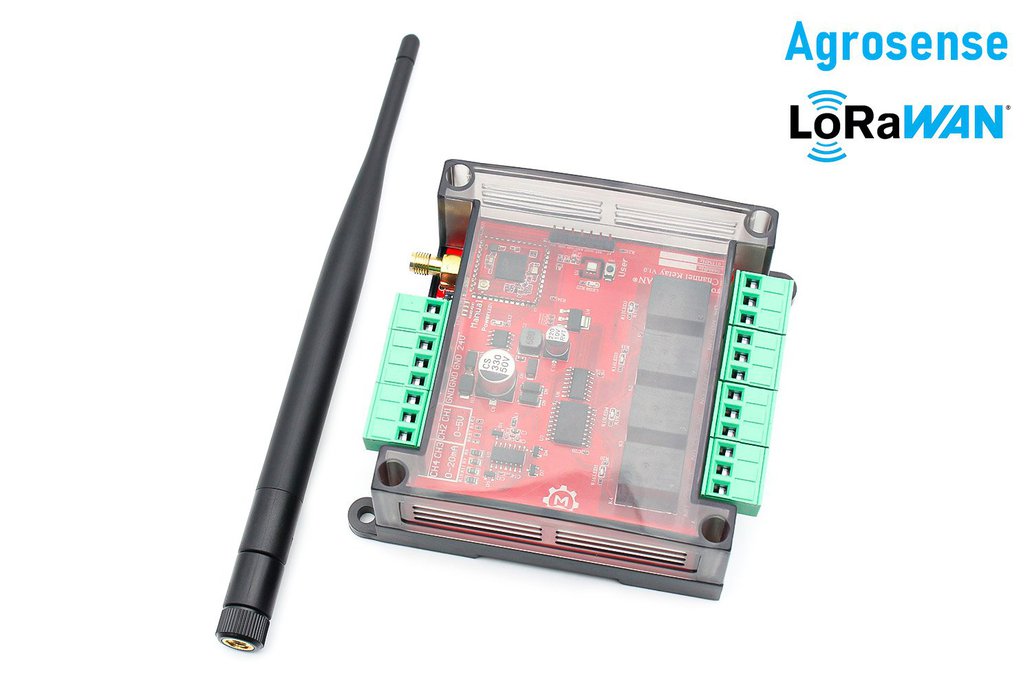

This AgroSense 4-Channel LoRaWAN® Relay is designed for LoRaWAN remote control from cloud via LoRaWAN Class C. It is based 4 high-load relays that support max 20A@125V AC, make it possible for users to control 4 channel loads, such as Fan/door/lights, On/Off, via standard LoRaWAN Class C from Cloud service. Also 2 channel analog inputs(0~5V) support common sensor inputs, and on-board temperature and humidity sensor(AHT20) for field application environment detection, for fire/dangerous detections.

Different with Class A, LoRaWAN® V1.0.3 OTAA Class C standard keep stable connection from nodes to gateway, suitable for applications that need long-term /stable connection and more frequent data uplink/ relative quick feedback, with disadvantage of higher power consumption. This AgroSense 4-Channel LoRaWAN® Relay supports common 2 data modes:

• Data Uplink: It uplink the relay status/analog inputs/ temp& humidity sensor data to gateway with dedicated time interval (default 10s and can be set to 24h max with data downlink)

• Data Downlink: Users can send downlink commands from cloud server, to control relays, adjust data reporting intervals, and perform scheduled tasks—making it highly adaptable to various automation needs.

This Module supports global frequency bands (EU868/US915) and works seamlessly with platforms such as TTN, Datacake, and CloudStutio to enable data upload and remote control.

Besides, it has Local storage for max 3,300+ records, ensures critical data is retained during connectivity gaps.

Feature

• Includes 4-channel independently controlled Relays.
• Includes 2-channel 0-5V analog signal inputs.
• Integrates a high-accuracy temperature and humidity sensor AHT20.
• LoRaWAN version: LoRaWAN Specification 1.0.3. OTAA Class C.
• Monitor data and upload real-time data regularly.
• Modify the product parameters through AT commands.
• Support downlink to modify the time interval and control relay switch.
• Integrated data logging capability with a storage capacity of up to 3300 records.
• Compatible with Worldwide LoRaWAN® Networks: Support the universal frequency bands EU868/ US915.
• Long Range: Up to 2 kilometers in the city, up to 10 kilometers in the wilderness, receive sensitivity -137dBm , transmit power up to 22dBm.
• Data encryption: Provide end-to-end secure communication, including device authentication and network data encryption, to ensure the security of data transmission and prevent data theft and malicious attacks.
• High stability and reliability: good stability in noisy environments, able to penetrate buildings and obstacles, so it can maintain good communication quality in urban and suburban environments. Local storage for max 3,300+ records.

General Parameters

Wireless Parameters

Physical Parameters

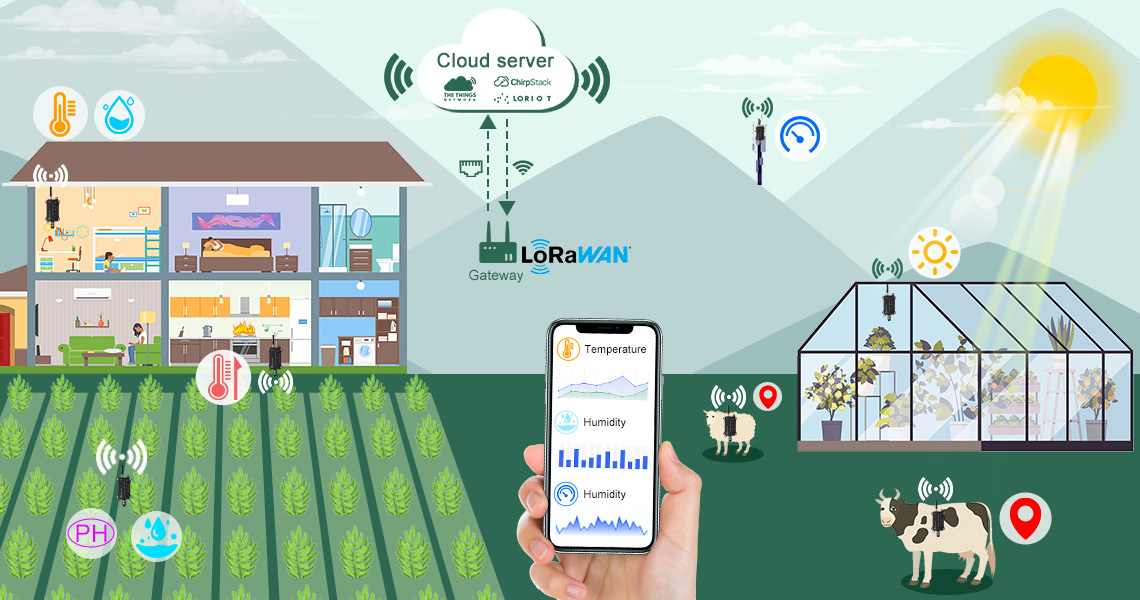

AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.

It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.

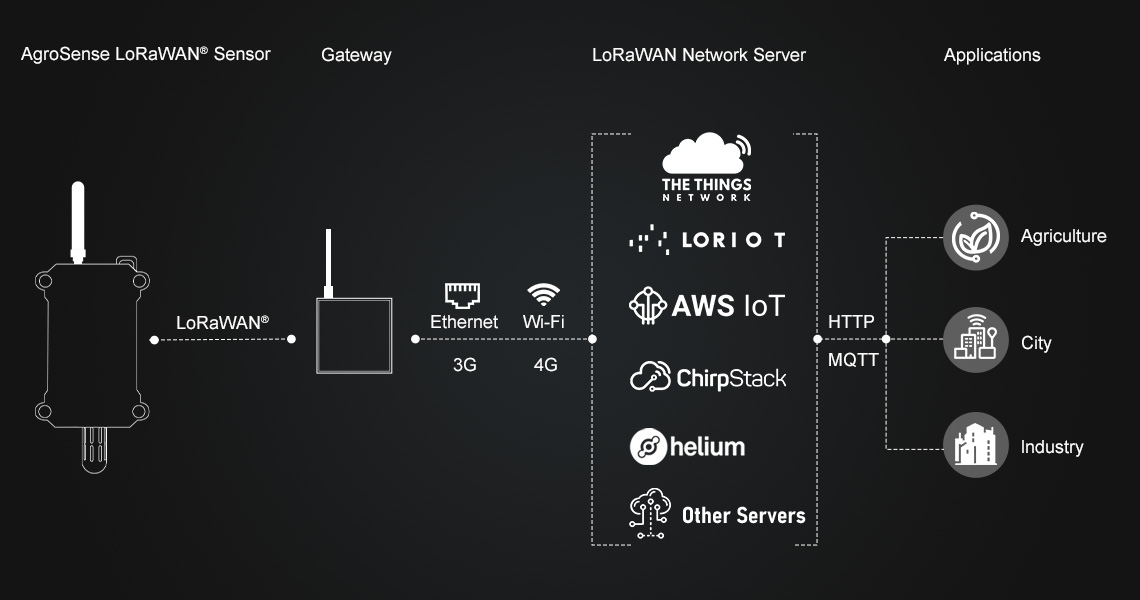

With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network and DataCake, with simply inputting DEV EUI/ APP EUI/ APP Key:

• DEV EUI: Unique identification of device，authorized by IEEE；
• APP EUI: Unique identification of application；
• APP Key: One of the join network parameters on OTAA mode, calculated by DEVEUI；

Part List

• AgroSense_ AgroSense 4-Channel LoRaWAN® Relay *1

Usage

• Github/Manual
• Usage Wiki

For country/ area frequency selecting,please check here: regional Parameter
