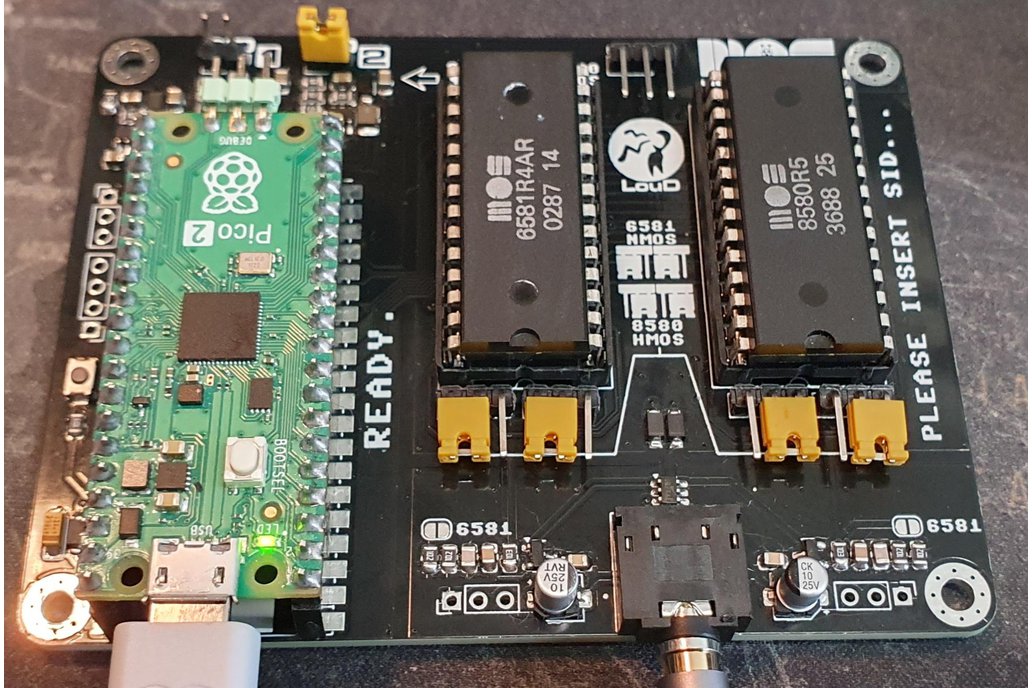

USBSID-Pico is a RaspberryPi Pico/PicoW (RP2040) & Pico2/Pico2W (RP2350) based board for interfacing one or two MOS SID chips and/or hardware SID emulators over (WEB)USB with your computer, phone, ASID supporting player or USB midi controller.
For more information check out the official repo

This product is a Do-It-Yourself through hole solder kit, the SMD parts are pre-soldered. It comes with a through hole part kit that you have to solder yourself. Please note the additional options for including a pico, case and for pre soldering.

Included in this kit:

• Bare PCB pre-soldered with SMD parts
• 1x audio jack port
• 2x 28-pin DIP wide sockets
• 2x 20-pin female dupont header
  • to seat the pico (optional)
• 6 yellow 2-pin jumper caps
• Set of male dupont headers and their functionality
  • 2x 3-pin vertical
    • audio wires (optional)
  • 5x 3-pin horizontal
    • filter capacitor selection (requires jumper caps)
    • A5 address wire (optional)
  • 2x 2-pin vertical
    • SID socket voltage selection (requires jumper caps)
  • 1x 4-pin vertical
    • future expension gpio (optional)
  • 1x 3-pin vertical
    • uart (optional)
