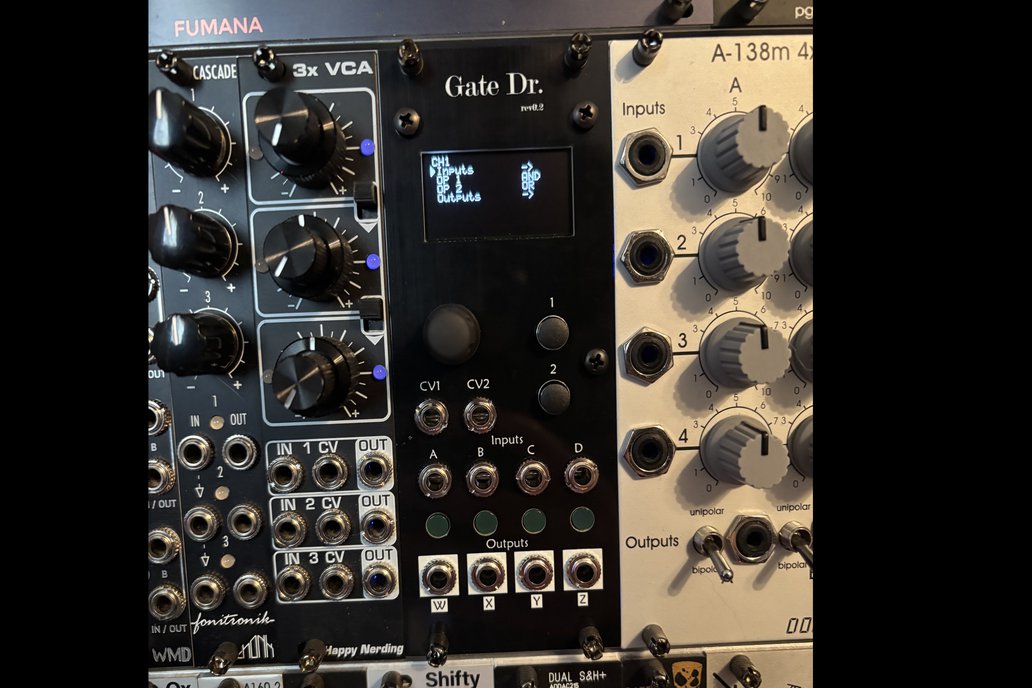

The Gate Dr. is a versaitle multifunction utility module based around extracting, combining, and modulating gate signals from your Eurorack system. While the core of this module is two channels of two-input logic gates, the Gate Dr. expands on this to include a host of gate-related utilities, including comparators, clock dividers, probability generators, and more.

The Gate Dr. features 2 channels, each with 2 inputs and 2 outputs. Each channel contains the following:

• 2 comparators with adjustable threshold, hysteresis, and ability to invert the signal (greater than/less than threshold)
• 2 separate logical operators on the 2 inputs, including combinational logic (AND, NAND, OR, NOR, XOR, XNOR), sequential logic (S-R latch, D-latch), and a BYPASS operation which sends the input signal straight to the output processing block
• Output processing blocks that include various gate-related utilities, including a clock divider, gate start-delay, probability control, and a robust gate-to-trigger converter
• 2 globally assignable CV inputs, with CV control available for almost all parameters

The Gate Dr. also has the following features: - OLED screen, pushbutton encoder, and two Channel buttons for easy access to any parameter. - Simple, easy to understand menu interface with shortcuts to menus on the panel. - Super slim skiff-friendly design.

Technical specs: - Width: 10HP - Depth: 22mm - Power: 65mA max @ +12V (45mV typical) 9mA @ -12V 0mA @ +5V

Please see the GitHub links below for the full manual, as well as the hardware design files and source code!
