Stop Flatlining Your Data. Start Sensing Like an Industrial Pro.

Are you tired of hobby-grade IMUs that clip at +/- 16g? When your data hits a ceiling, you can't build a reliable industrial tool, capture high-speed vehicle dynamics, or accurately monitor high-vibration systems.

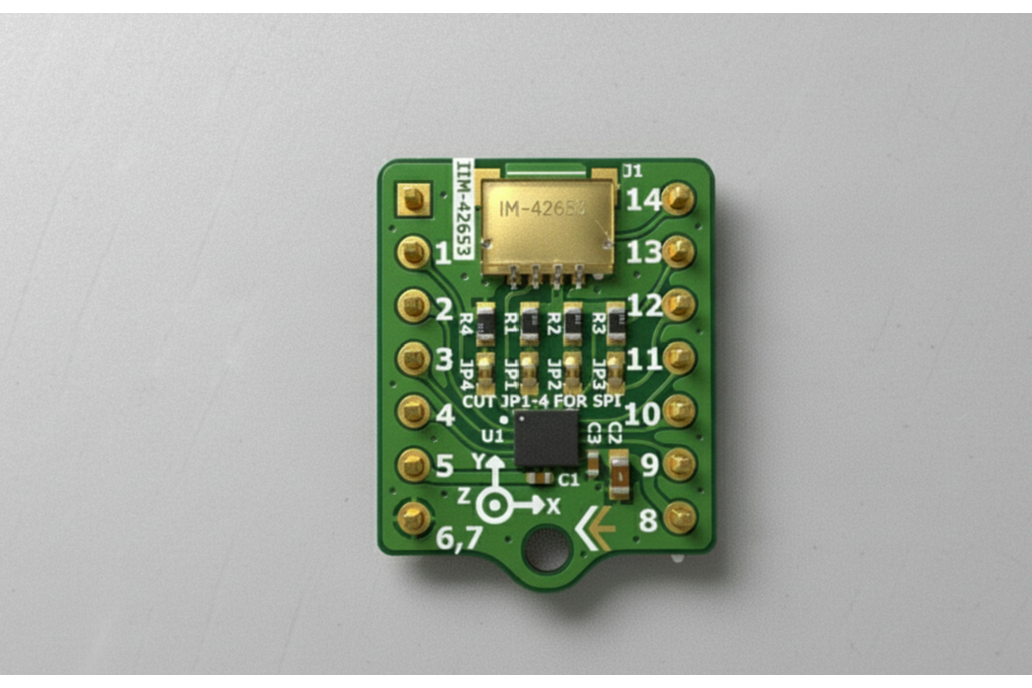

The LogicalEdges IIM-42653 Breakout is the solution. We designed this board to give engineers and developers full, unfiltered access to one of TDK's latest smart industrial 6-axis IMUs. This isn't a toy; it's a precision instrument for applications that demand extreme range and high reliability.

This chip's massive +/- 32g accelerometer and +/- 4000dps gyroscope range allow it to capture extreme motion, vibration, and shock data where consumer sensors simply fail. It's the ideal core for developing B2B tools in construction, precision agriculture, robotics, and HD mapping.

Built for Developers. Total Flexibility.

We didn't lock you into one mode. This board is designed for maximum flexibility:

Full Pin Access: All IMU pins are broken out to standard, breadboard-friendly 2.54mm header interfaces.

Protocol Choice: Select between I2C, I3C, or SPI host interfaces.

Qwiic / STEMMA QT: Includes a connector for instant, solder-free I2C prototyping.

User Configurable: By default, we've set it up to work out of the box with I2C but switching over to SPI is as easy as cutting some traces.

Key Features & Specifications

• Gyroscope: +/- 31.25 to +/- 4000dps programmable range
• Accelerometer: +/- 4g to +/- 32g programmable range
• High Reliability: 20,000g shock tolerant
• Interface: I3C / I2C / SPI Slave Host Interface
• On-Chip: User-programmable interrupts and a digital-output temperature sensor

Target Applications

Construction & Agriculture: Equipment navigation, tilt sensing, blade/bucket positioning, and GNSS/GPS bridging.

Robotics & Warehousing: Platform stabilization, dead reckoning, and industrial automation in high-vibration environments.

HD Mapping & Surveying: Camera and survey equipment stabilization, georeferencing, and navigation.

Important: For R&D and Evaluation Use Only This module is sold AS IS exclusively for Prototyping, Evaluation, and R&D purposes. It is not a finished product and is not intended for incorporation into final consumer, commercial, life-critical, or safety-critical systems.

Liability: User assumes full responsibility for integration and compliance. Our liability is limited to manufacturing defects only, and shall not exceed the original purchase price. Warranty is immediately voided by user misuse (e.g., over-voltage, physical damage, user-initiated modification/soldering). No refunds for user-damaged components.
