USB(Type-C) - TTL Level Serial Converter

Name: USB(Type-C) - TTL Level Serial Converter
SKU: 39362
Price: 12.80 USD
Availability: InStock

USB(Type-C) to UART cable Supports +5V UART signals

Designed by CC Studio in China

USB(Type-C) - TTL Level Serial Converter 1

USB(Type-C) - TTL Level Serial Converter 2

USB(Type-C) - TTL Level Serial Converter 3


Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

USB(Type-C) to UART cable Supports +5V UART signals

Only Supports +5V UART signals Overview The Cable is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version of FTDI’s USB to TTL…

Overview

The Cable is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version of FTDI’s USB to TTL serial adapter cables has it’s I/O pins configured to operate at 5V levels.

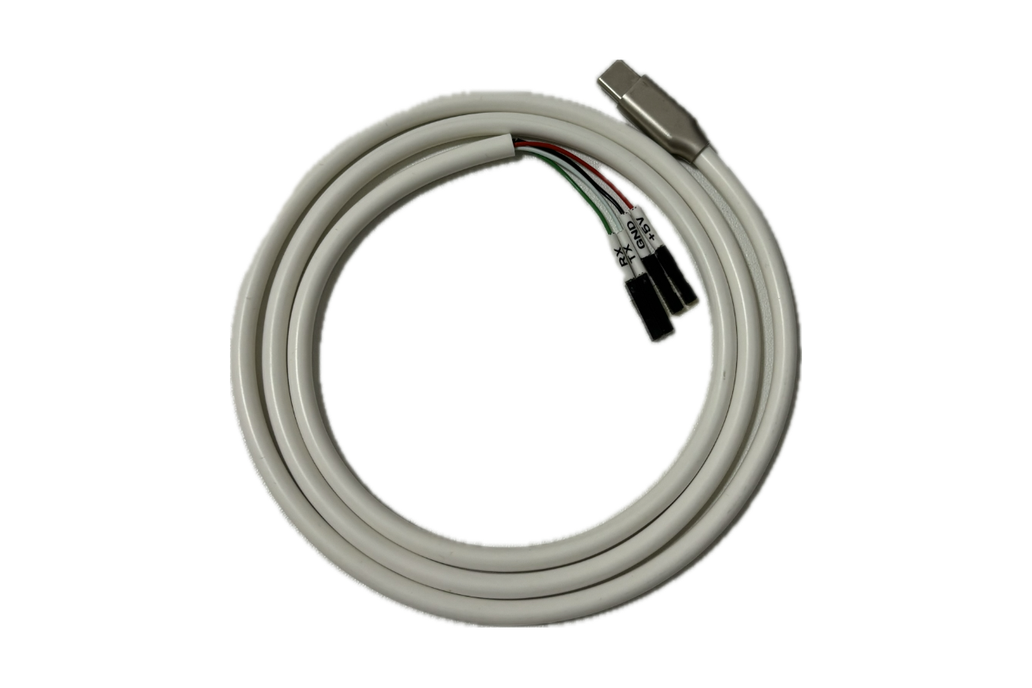

The Cable uses a FT230XQ IC which is housed inside the USB ‘C’ connector, and is terminated at the end of a 1.0 meter cable with a 0.1″” pitch header socket which provided access to transmit (Tx), and receive (Rx). These lines all operate at 5V levels. Also brought out on the header are Vcc (5V), and GND.
