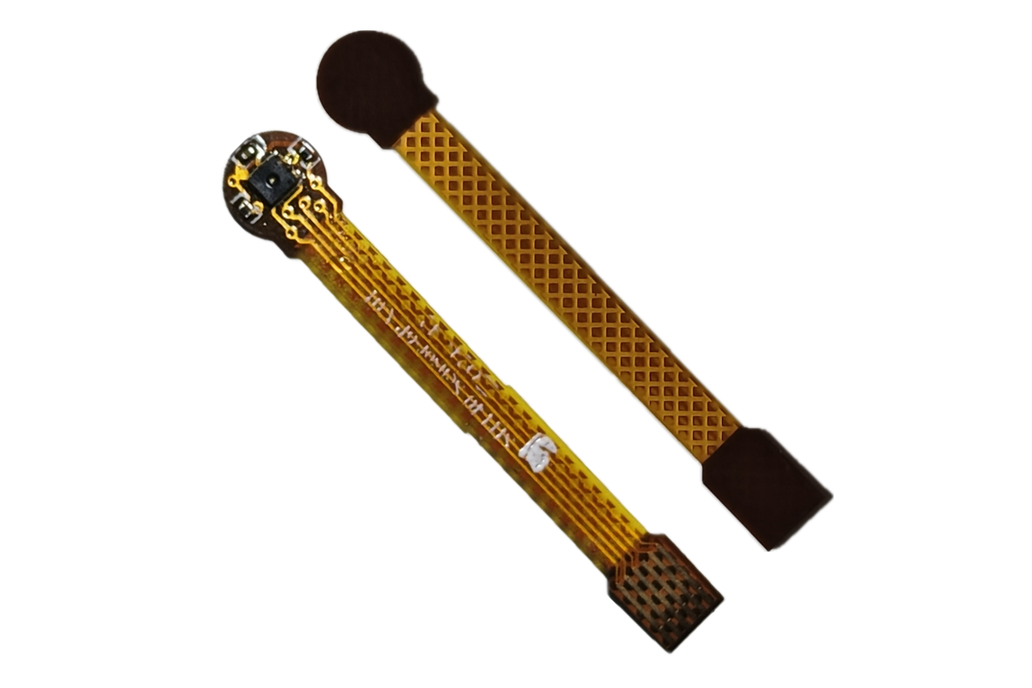

The SHT40 sensor module made of FPC is foldable and mini.
Designed by CC Studio in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
SHT40 FPC Temperature and Humidity The SHT40 sensor module made of FPC is foldable and compact. It can be embedded in your electronic products, and you don't need to worry about the heating of the ci…
Read More…The SHT40 sensor module made of FPC is foldable and compact. It can be embedded in your electronic products, and you don't need to worry about the heating of the circuit board affecting the temperature acquisition of the SHT40.
Operating Voltage: 1.07 ~ 3.6V Operating Current: <0.5mA Humidity Measurement Accuracy: ±1.8%RH Humidity Measurement Range: 0-100%RH Temperature Measurement Accuracy: ±0.2℃ Temperature Measurement Range: -40 to 125℃ Communication Interface: FPC 0.5mm-6Pin I²C Dimensions: 30mm (W) × 3.6mm (H) FPC Pad Size: 0.3mm (W) × 4mm (H) FPC Pad Pitch: 0.5mm
| Pin No. | Name | Description |
|---|---|---|
| 1 | GND | Power Ground |
| 2 | SDA | Data Line |
| 3 | SCL | Clock Line |
| 4 | NC | Not Connected |
| 5 | GND | Power Ground |
| 6 | VCC | Power Supply |
