Switches and LEDs PCB Only

Name: Switches and LEDs PCB Only
SKU: 22687
Price: 8.00 USD
Availability: InStock

LEDs, Switches and Pushbuttons PCB Only

Designed by Land Boards, LLC in United States of America



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Helping Makers Go Beyond Breadboards

LEDs, Switches and Pushbuttons PCB Only

What is it? PCB Only LEDs ( 3 mm) 8 Slide switches or 1x3 jumpers 8 Pushbutton switches PCB Only is the PCB. You supply the LEDs and Switches. Options Rev 1 - Blue PCB. Separate connectors. Power/…

What is it?

PCB Only

LEDs ( 3 mm)
8 Slide switches or 1x3 jumpers
8 Pushbutton switches

PCB Only is the PCB. You supply the LEDs and Switches.

Options

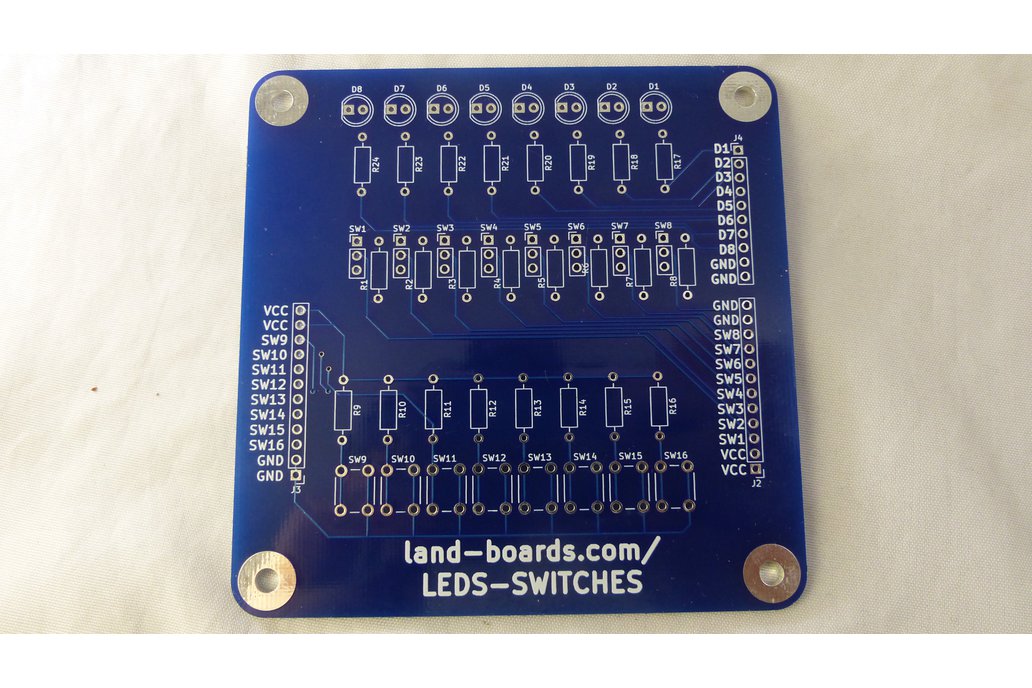

Rev 1 - Blue PCB. Separate connectors. Power/Ground Isolated connectors
Rev 2 - Black PCB. Single 32-pin rear-mounted connector. Use White-on-black P-Touch labels for legends

Why did you make it?

I needed a simple card as a Retro-computer control panel. Sometimes you just need some slide switches, pushbuttons and LEDs.

What makes it special?

It's pretty simple, but it does the job.

No country selected, please select your country to see shipping options.

Change Destination Country:

Land Boards, LLC Shipping Policy:

We keep a small quantity of assembled/tested boards but we have material in-house to build/test additional boards. Domestic (USA) orders ship as soon as the cards is built/tested.
