USB ROM EPROM FLASH 8KB to 64KB Emulator

Nice, boxed device

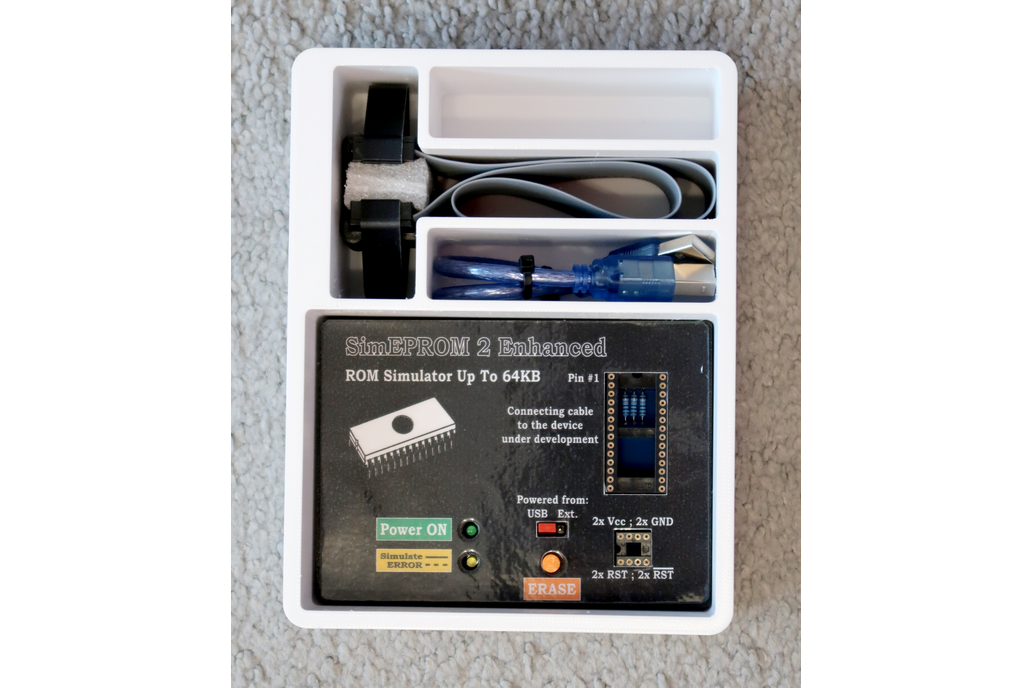

Assembled and tested device including cable DIL28-DIL28 Including also USB cable and 3d printed box

ROM, EPROM, EEPROM, FLASH memory simulator with a capacity of 8KB-64KB in DIL28 packages. With an appropriate reduction, it would probably be possible to simulate 2KB and 4KB memories in DIL24 packages, but this has not been tested.

The simulator is intended for convenient debugging and testing of software in various devices without the need to upload it to the appropriate xxROM memory after each change and insert it into the socket in the device. The simulator is connected by a cable to the memory socket in the given device, and the tested software can then be repeatedly sent from the PC to the simulator. This is stored in the simulator's RAM memory with a capacity of 64KB, and the simulator then works instead of the xxROM memory in the device. The simulator is connected to the PC with a USB cable.

FEATURES:

Connection to PC via USB interface, the simulator is equipped with a large USB-B connector. Data transfer from the parent PC in Intel HEX format. Powered from USB or from a debugged application (optionally).

Optional color of the box lid from those in stock (at the start of the sale I have 1x gray, 1x blue, 1x green).

Please, before sending any inquiry, download and read the documentation first. The documentation contains all the information that can be said about the device. If you are looking for a specific function that is not mentioned in the documentation, the device does not have this function.

Thank you for saving my and your valuable time and have a nice day.
